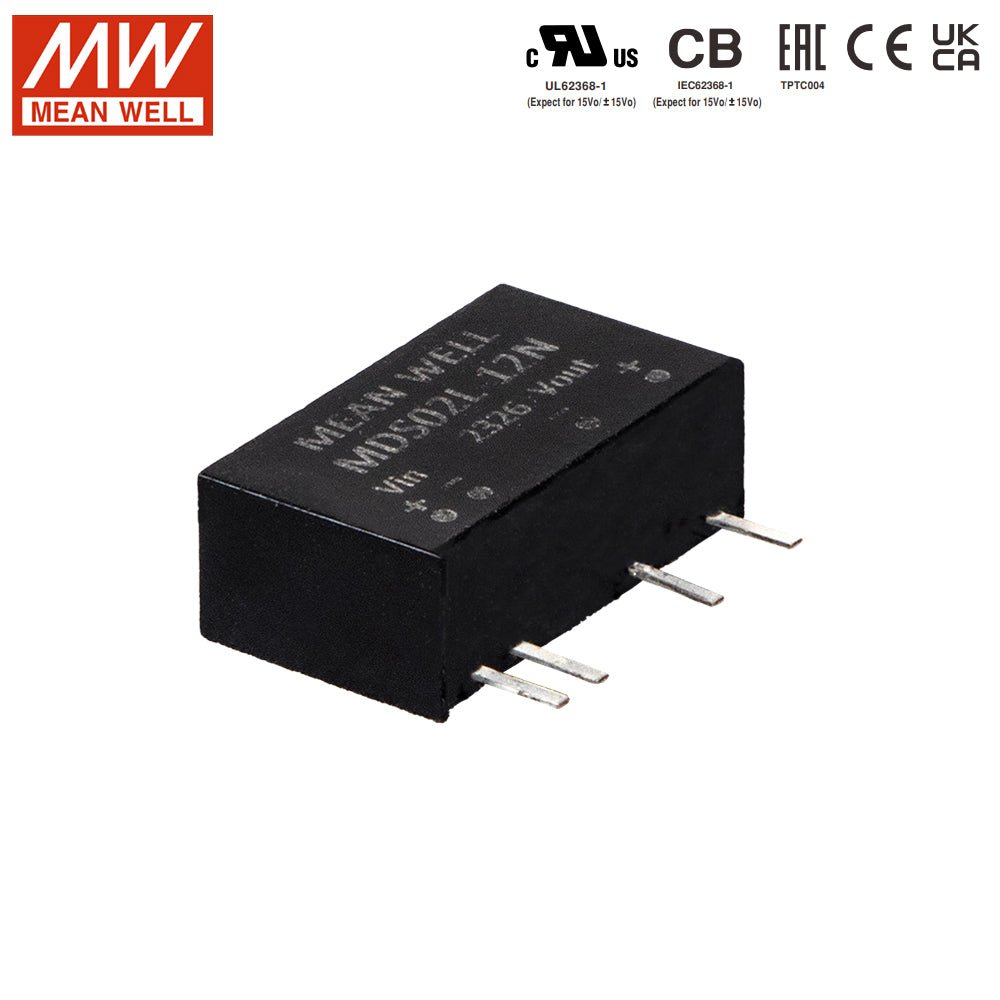

Mean Well MDS02L-12N SIP Package DC-DC Converter- 2W - 12V Out
Input 4.5~5.5VSIP7 package with international standard pinoutmedical gradelow cost
SKU:
MDS02L-12N
$6.29 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours

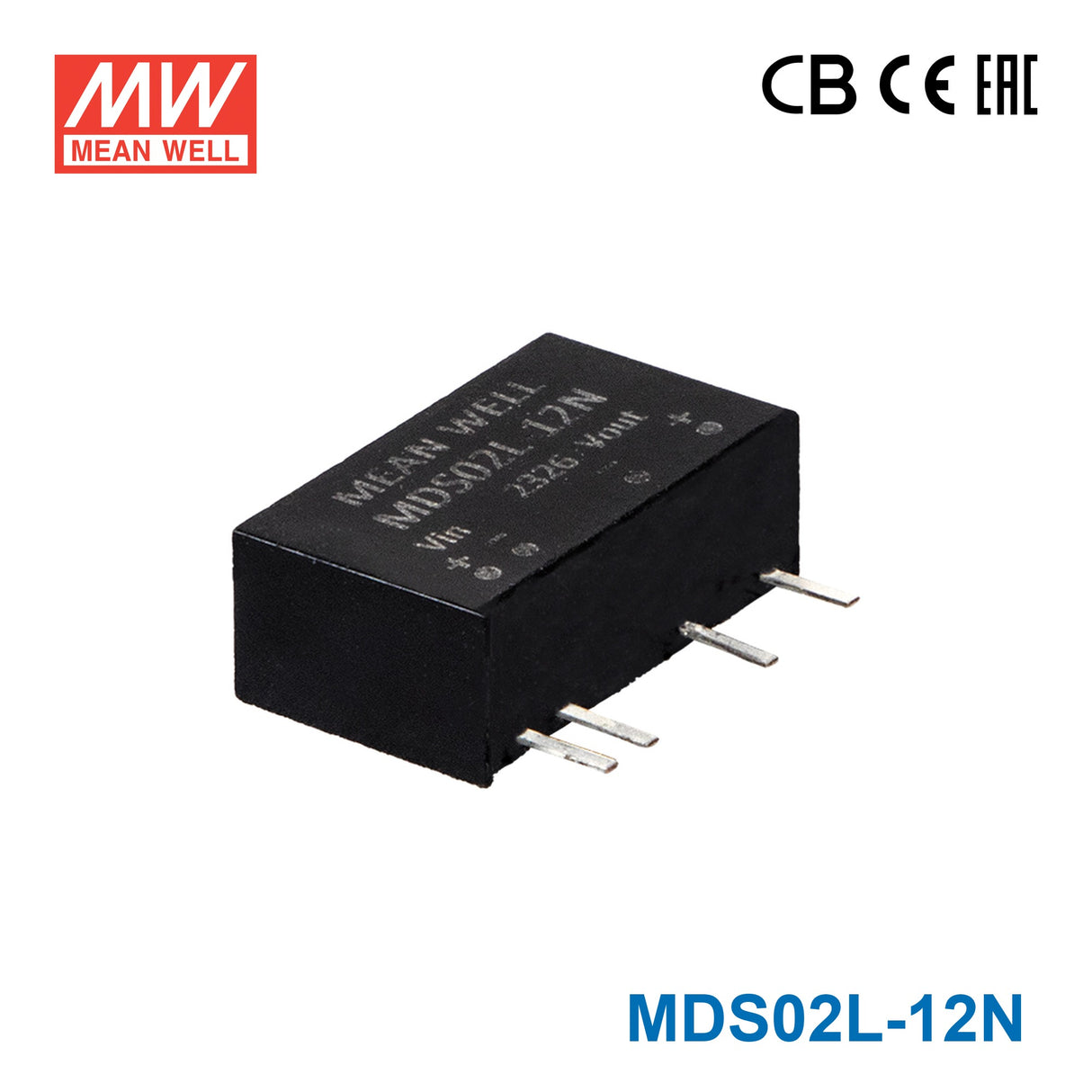

Mean Well MDS02L-12N SIP Package DC-DC Converter- 2W - 12V Out
$6.29 USD
Unit price /
Unavailable
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.04 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
