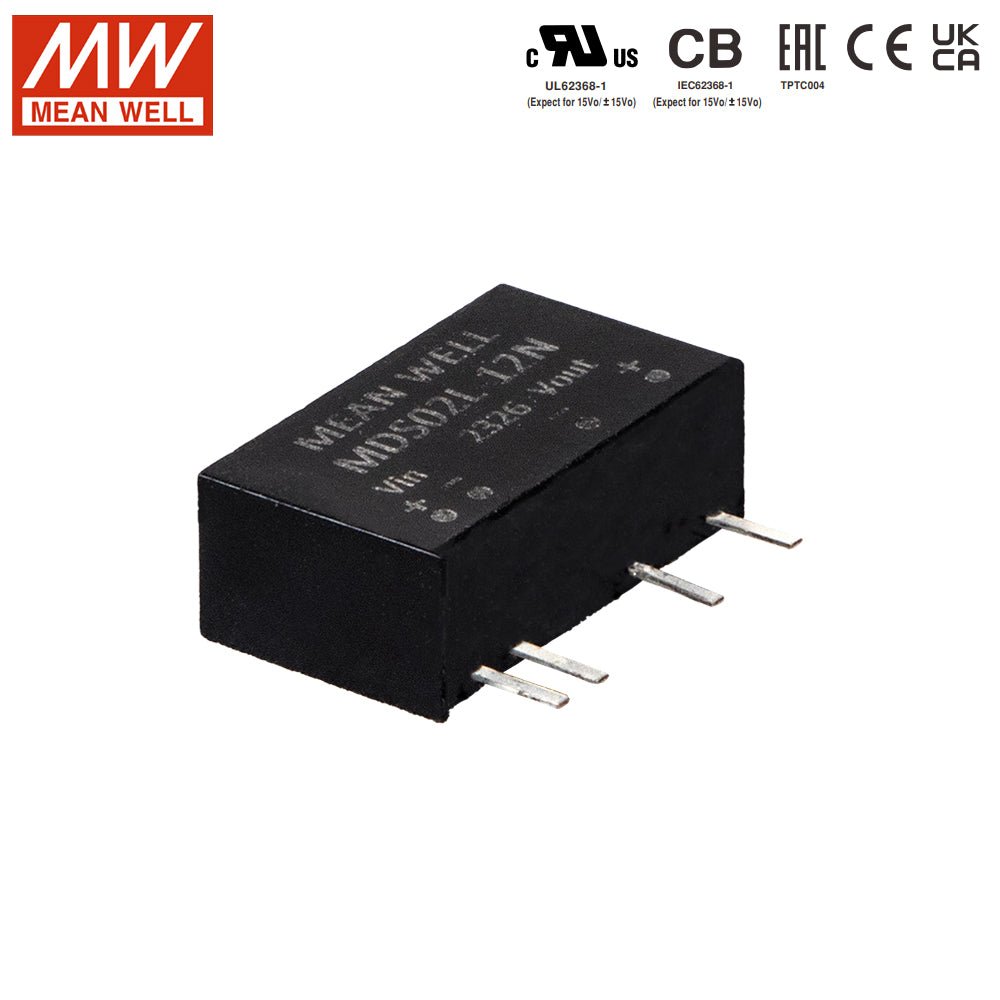

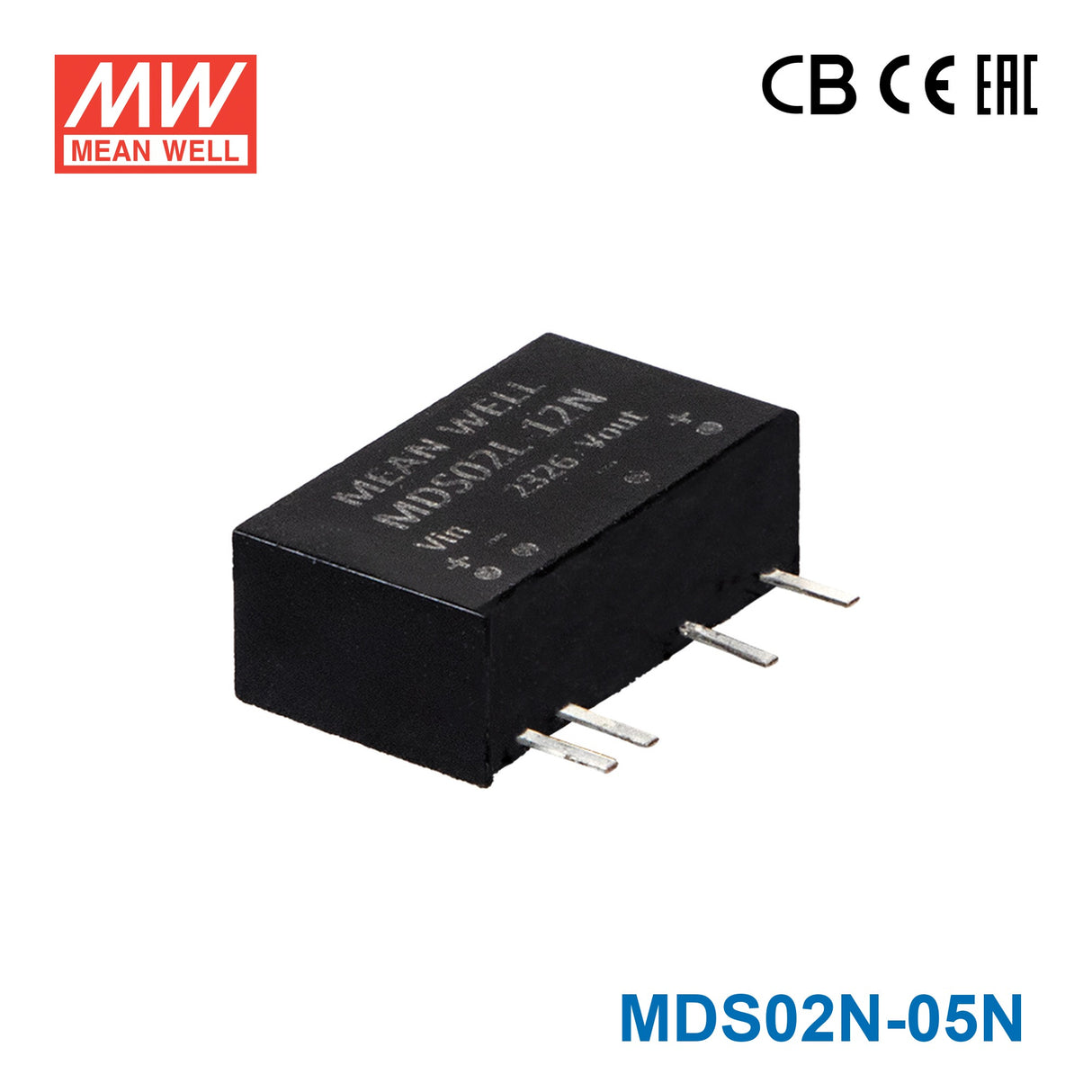

Mean Well MDS02N-05N SIP Package DC-DC Converter- 2W - 5V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS02N-05N SIP Package DC-DC Converter- 2W - 5V out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage5 Volt
-
Rated Current0.01 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS02N-05N used for?
The MDS02N-05N is a 2W SIP-package DC-DC converter designed for regulated 5V output in compact embedded equipment. It is suited to space-constrained industrial and medical-related electronic designs that need reinforced isolation and low leakage current.
What are the key electrical ratings of the MDS02N-05N?
This model is rated for 2W output power and provides a 5V DC output. The product family specification shown for this series includes a 5V input version with a 4.5 to 5.5VDC input range, and this model belongs to that MDS series.
Does the MDS02N-05N provide isolation for sensitive applications?
Yes. The MDS series is specified with 6KVDC input-to-output isolation using reinforced insulation, which is a strong differentiator for compact DC-DC modules. It is also described as having low patient leakage current below 2uA and medical safety approval under IEC60601-1.
Is the MDS02N-05N suitable for medical or safety-focused equipment?
Yes, this series is medical safety approved with 1 x MOPP and 2 x MOOP according to IEC60601-1. The listed certifications also include CB, UL, EAC, CE, and UKCA under 62368-1 and 60601-1 standards, making it relevant for designs with stricter safety requirements.
What operating temperatures can the MDS02N-05N handle?
The MDS02N-05N is specified for operation from -40C to +95C. That wide temperature range makes it appropriate for equipment expected to run in both low-temperature and elevated-temperature environments.
What protection features are included in the MDS02N-05N?
This model includes continuous short-circuit protection. The series also specifies overload protection that shuts down the output when rated power reaches at least 102 percent and then automatically recovers.
How compact is the MDS02N-05N for board-level designs?
The converter measures 19.7 x 7.1 x 11.5 mm and weighs 2.8 g. Its SIP7 package and small footprint make it a practical choice where PCB space and component height are limited.
