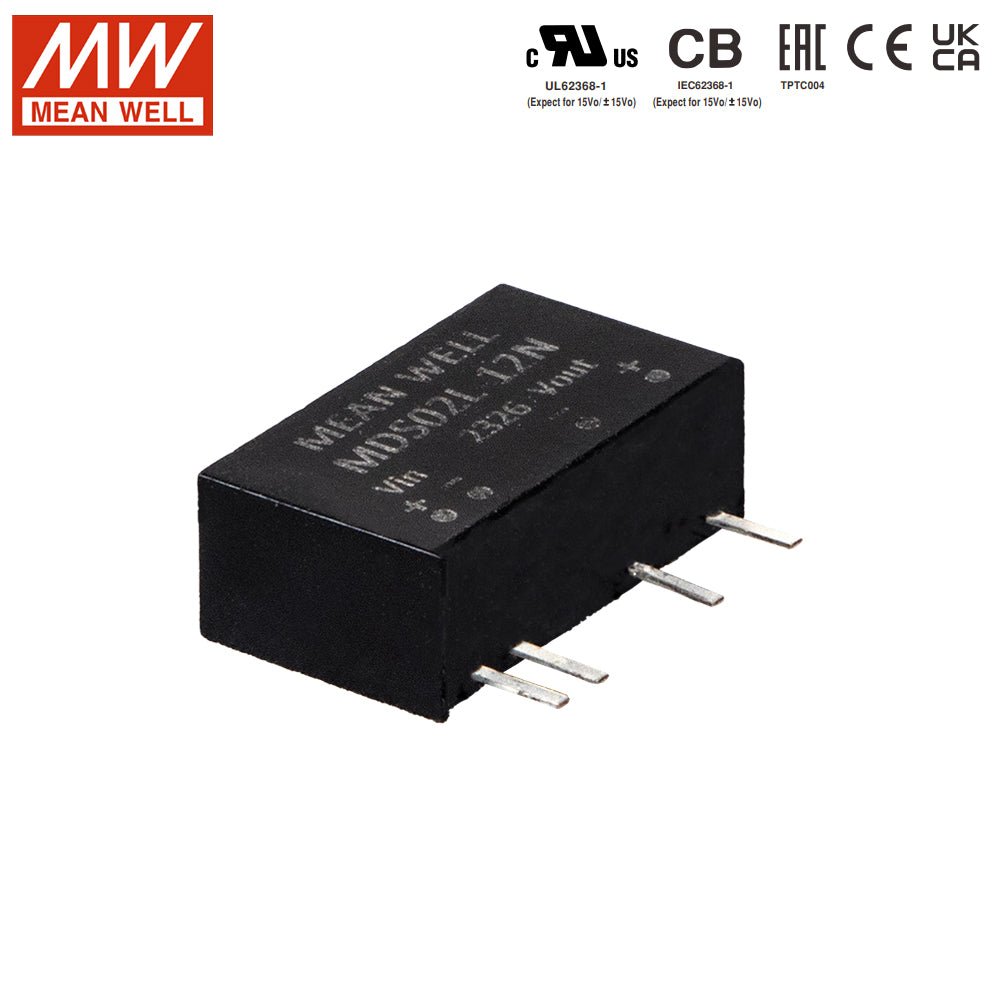

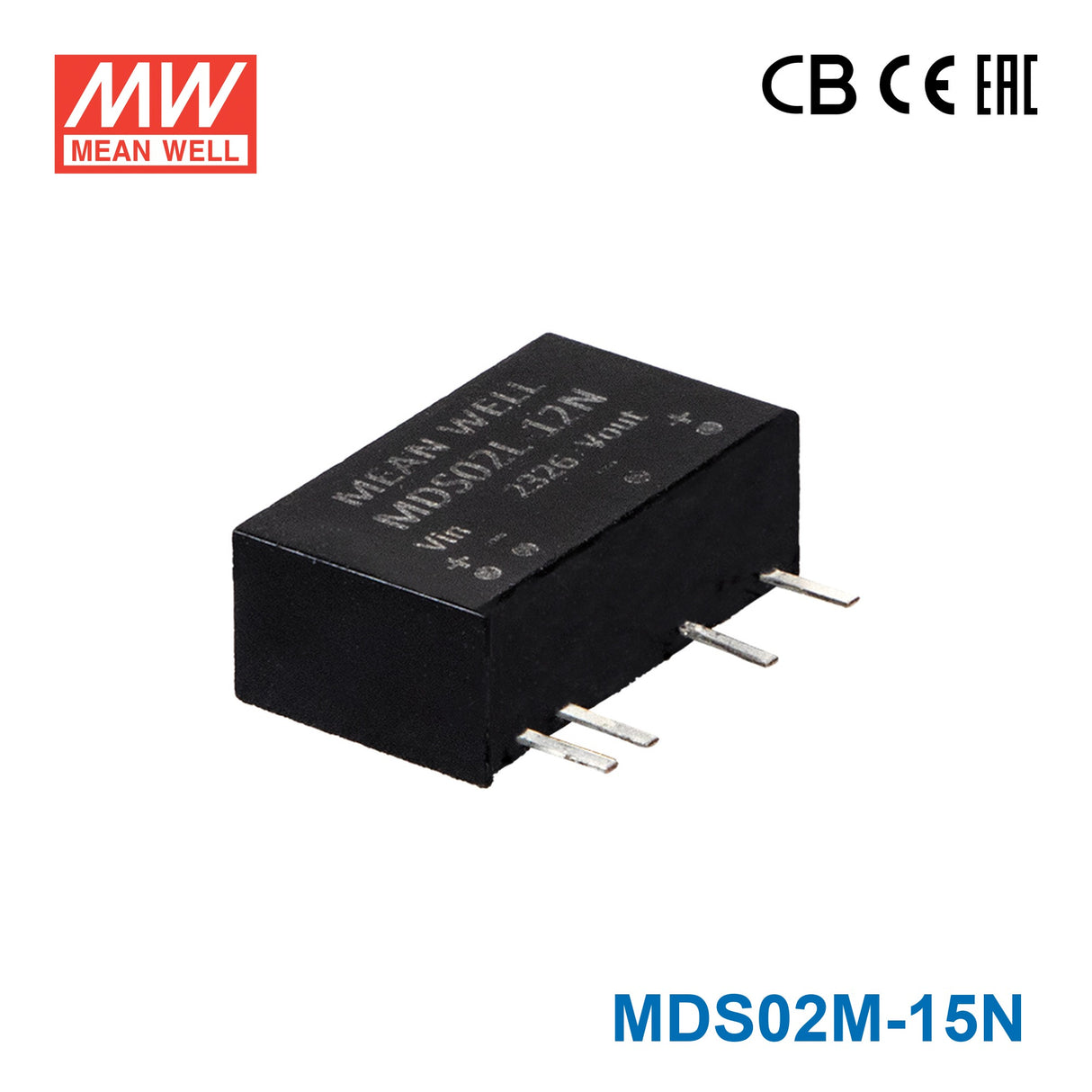

Mean Well MDS02M-15N SIP Package DC-DC Converter- 2W - 15V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS02M-15N SIP Package DC-DC Converter- 2W - 15V Out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.02 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS02M-15N used for?
The MDS02M-15N is a 2W SIP-package DC-DC converter designed for regulated 15V DC output in compact electronic equipment. It is suited to space-constrained OEM and industrial designs where reinforced isolation and a small footprint are important.
What are the key electrical specifications of the MDS02M-15N?
This model provides a single 15V DC output with a 2W power rating and a rated current of 23mA. It belongs to the MDS/MDD series, which is offered in multiple input ranges, while this specific SKU is the 15V output variant.
Is the MDS02M-15N suitable for medical or safety-critical equipment?
This converter is medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP, and it also complies with 62368-1 certifications listed for the series. It features 6KVDC input-to-output isolation and low patient leakage current below 2uA, which makes it relevant for medical-related applications that require reinforced insulation.
What protection features does the MDS02M-15N include?
The MDS02M-15N includes continuous short-circuit protection for long-term fault conditions. It also provides overload protection that shuts down the output when rated power reaches 102% or more, then recovers automatically.
What operating environment is the MDS02M-15N designed for?
This model is rated for an operating temperature range of -40C to +95C. That wide temperature capability makes it appropriate for demanding industrial and embedded applications where environmental conditions may vary significantly.
How compact is the Mean Well MDS02M-15N?
The converter is built in a SIP7 package with dimensions of 19.7 x 7.1 x 11.5 mm and a weight of 2.8 g. Its compact size helps support dense PCB layouts and small-form-factor equipment designs.
