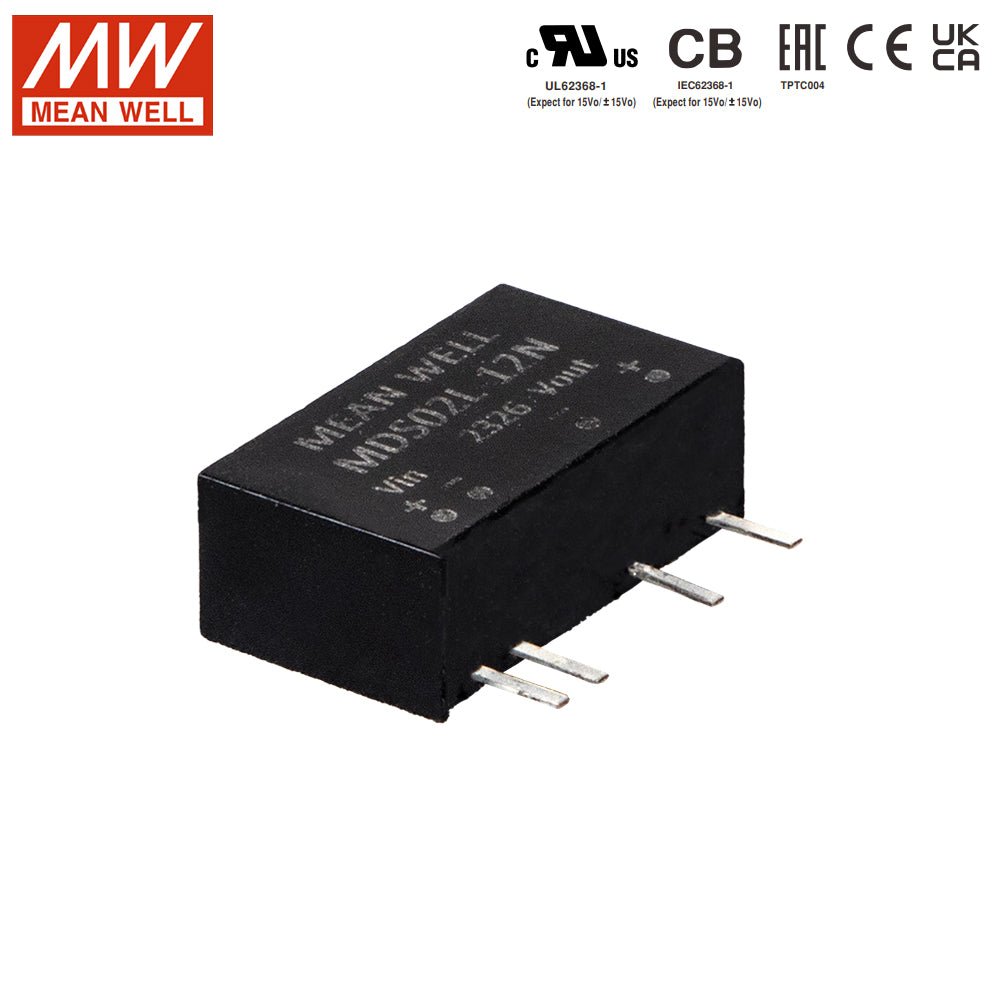

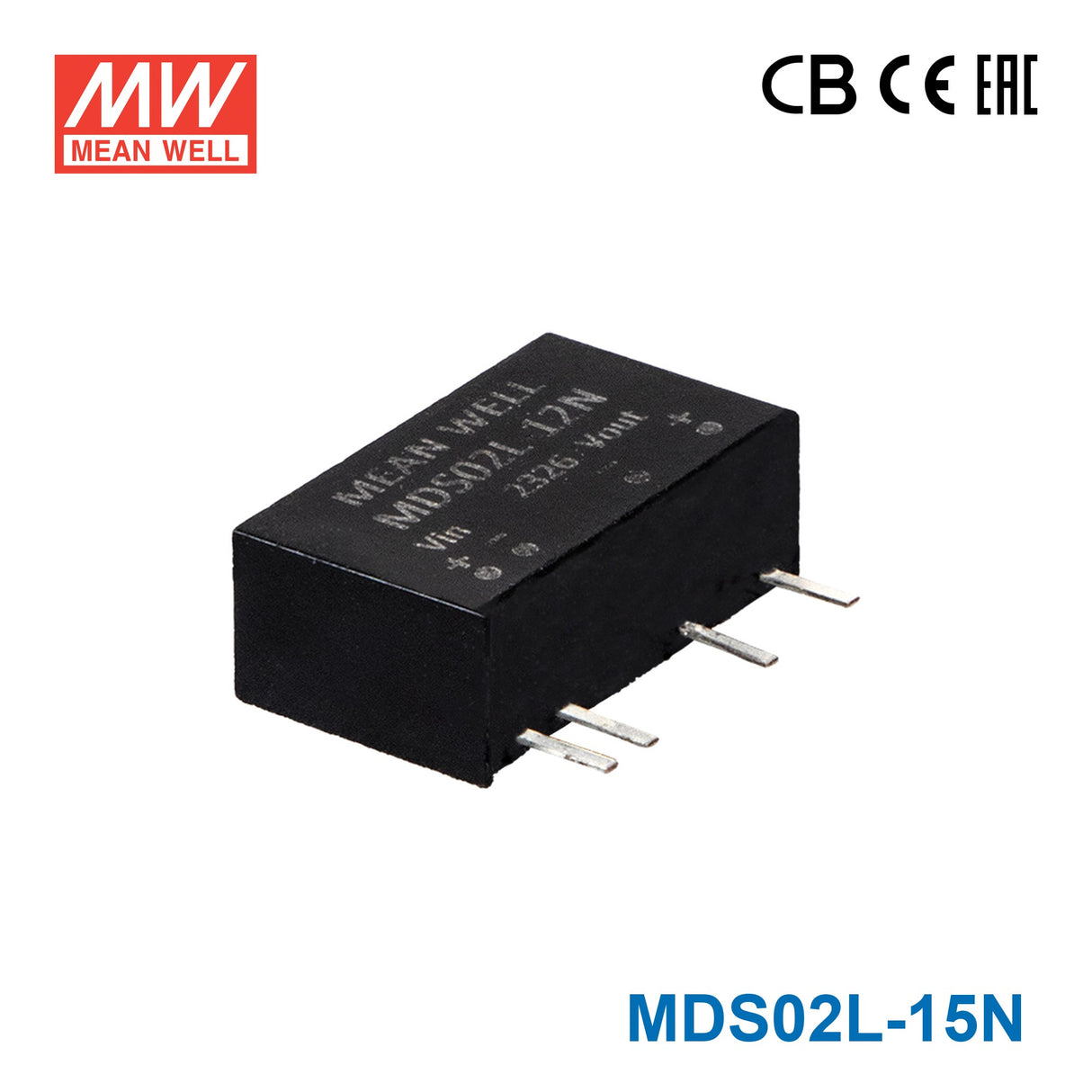

Mean Well MDS02L-15N SIP Package DC-DC Converter- 2W - 15V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS02L-15N SIP Package DC-DC Converter- 2W - 15V Out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.04 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS02L-15N used for?
The MDS02L-15N is a 2W SIP-package DC-DC converter designed for regulated 15V DC output in compact embedded equipment. It is suited to industrial and medical-related electronic applications where reinforced isolation, small size, and low leakage current are important.
What are the key electrical ratings of the MDS02L-15N?
This model provides 15V DC output with a 2W power rating and a rated output current of 40 mA. It belongs to the MDS02L series, which is built for isolated DC-DC conversion in a compact SIP7 form factor.
Is the MDS02L-15N suitable for medical or safety-sensitive equipment?
This converter is medical safety approved to IEC60601-1 with 1xMOPP and 2xMOOP ratings, and it also lists compliance with IEC/UL62368-1 except for 15Vo and ±15Vo variants. It features 6KVDC input-to-output isolation and patient leakage current below 2 microamps, which supports use in safety-sensitive designs.
Can the MDS02L-15N operate in harsh temperature environments?
Yes. The specified operating temperature range is -40°C to +95°C, making it suitable for demanding industrial environments where wide-temperature performance is required. Buyers should still confirm the full system design remains within the product's published limits.
What protection features does the MDS02L-15N include?
The MDS02L-15N includes continuous short-circuit protection for long-duration fault conditions. It also provides overload protection that shuts down the output when rated power reaches 102% or more, then automatically recovers.
How compact is the Mean Well MDS02L-15N?
This model measures 19.7 x 7.1 x 11.5 mm and weighs 2.8 g. Its compact SIP7 package helps it fit space-constrained power designs where board area and component height matter.
