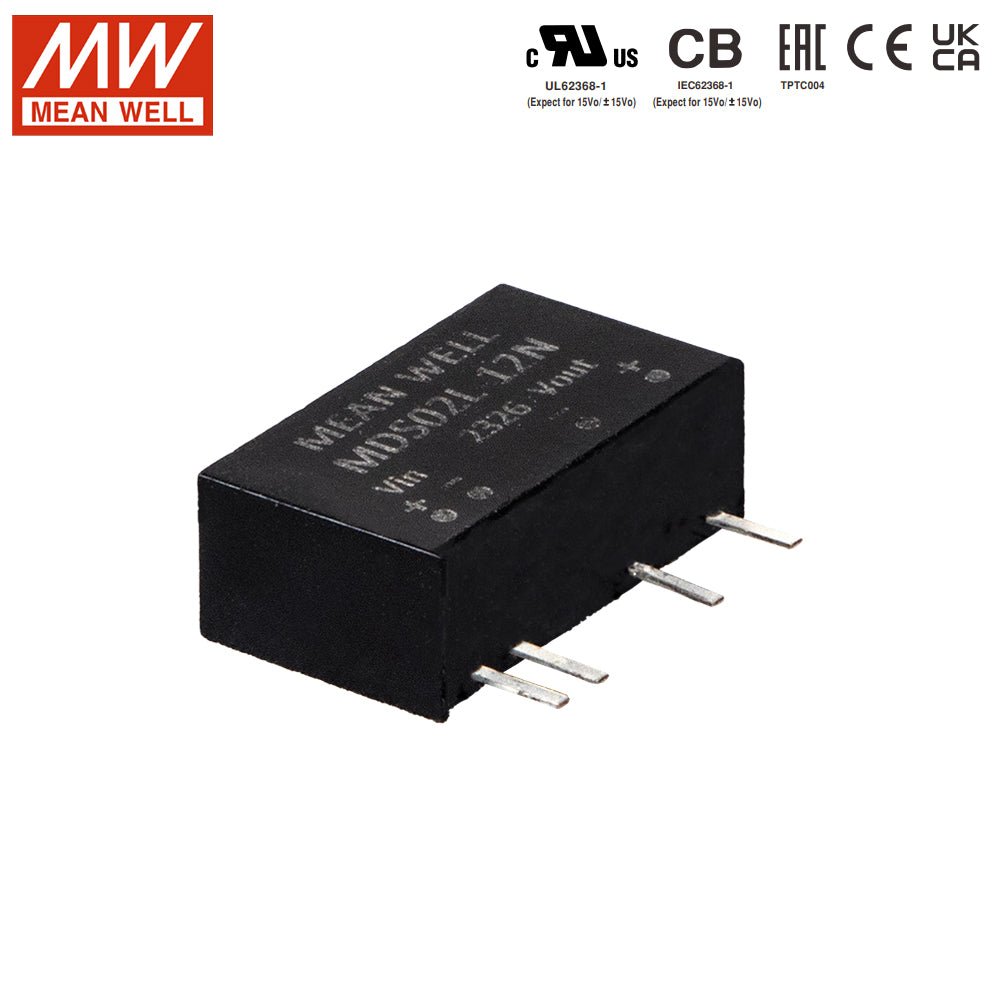

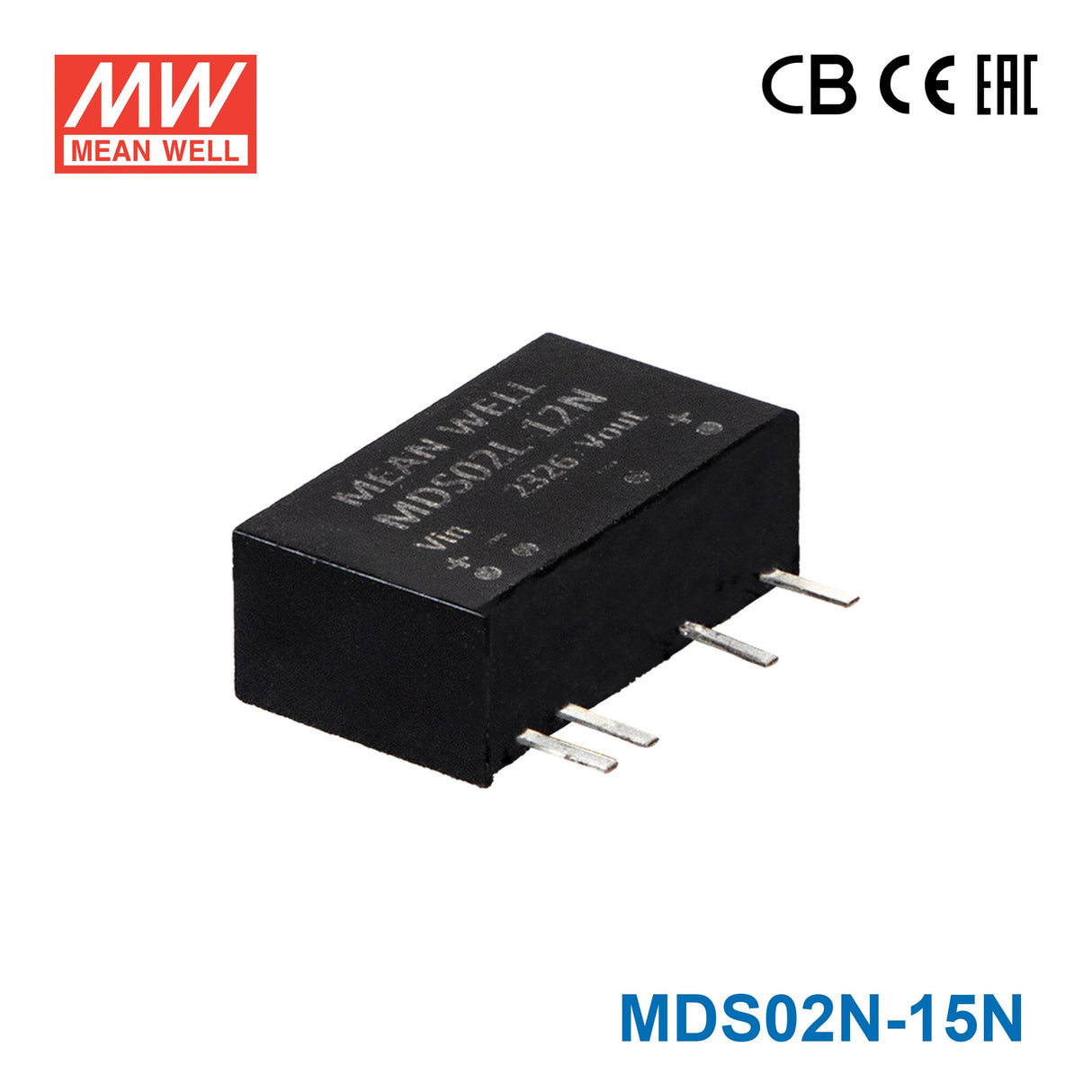

Mean Well MDS02N-15N SIP Package DC-DC Converter- 2W - 15V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS02N-15N SIP Package DC-DC Converter- 2W - 15V Out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS02N-15N designed for?
The MDS02N-15N is a 2W SIP-package DC-DC converter intended for regulated 15V DC output in compact embedded power designs. Its reinforced 6KVDC input-to-output isolation and medical safety approvals make it relevant for industrial and medical-related equipment where isolation and board space matter.
What are the key output and power specifications of the MDS02N-15N?
This model provides a single 15V DC output and is rated for 2W. The listed rated current is 12 mA, and it is part of Mean Well's MDS/MDD series of SIP7 isolated DC-DC converters.
What input voltage range does the MDS02N-15N support?
The series is offered in 5V, 12V, and 24V DC input versions, with stated ranges of 4.5 to 5.5V, 10.8 to 13.2V, and 21.6 to 26.4V respectively. Buyers should confirm the exact input variant tied to SKU MDS02N-15N before ordering for a specific system design.
Is the MDS02N-15N suitable for medical or safety-sensitive equipment?
Yes, this converter is described as medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP and low patient leakage current below 2 microamps. It also carries CB, UL, EAC, CE, and UKCA safety certifications covering 62368-1 and 60601-1 standards.
How does the MDS02N-15N perform in harsh temperature environments?
The MDS02N-15N is rated for operation from -40°C to +95°C, which supports use in demanding industrial environments. That wide temperature range helps it fit applications where standard commercial-temperature converters may be too limited.
What protection features are included in the MDS02N-15N?
This model includes continuous short-circuit protection for long-duration fault conditions. It also has overload protection that shuts down the output when rated power reaches 102% or more, then recovers automatically.
