Over 15 years experience of providing support of MEAN WELL Power Supplies

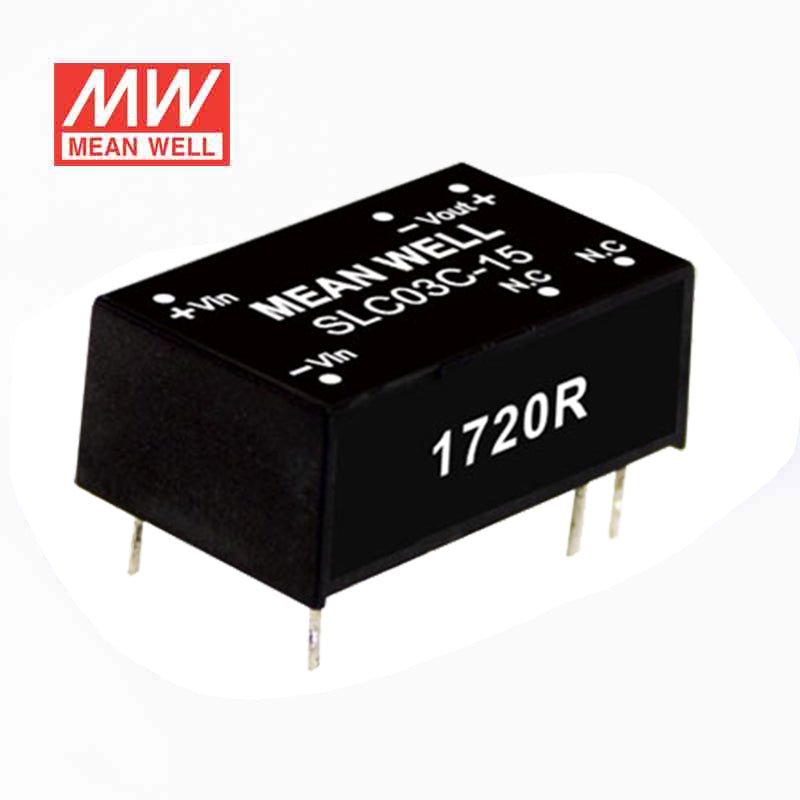

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well SLC03A-05 DC-DC Converter - 3W - 9~18V in 5V out 600mA
3 years warranty
Key Features
- ✓DIP16 package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓2:1 wide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓High efficiency up to 82%
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓3 years warranty
-
BrandMean Well
-
SeriesSLC Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.83 in
-
Width0.54 in
-
Height0.34 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SLC03A-05 to power 5V logic in an industrial control panel?
This model is a constant voltage DC-DC converter with a 5V output and 3W power rating, so it fits low-power 5V control electronics. Its 9-18VAC input range also suits systems operating within that low-voltage input window.
Is the SLC03A-05 suitable for embedded 5V boards inside compact equipment?
It is well suited to compact embedded use where board space and weight matter, because the housing is 21.1 × 13.8 × 8.55 mm and 0.0045 kg. The converter provides constant voltage 5V output with a 3W rating for low-power embedded loads.
Can this converter be used for 5V automation sensors or monitoring circuits?
It can fit low-power automation or monitoring circuits that need regulated 5V constant voltage output. The 3W power rating and 9-18VAC input range make it a fit for small auxiliary circuits rather than higher-power loads.
Is the SLC03A-05 appropriate for cold or hot equipment environments?
The specified operating temperature range is -40°C to +85°C, which supports use across very cold and high-heat equipment environments. That temperature range is broad, but the listed specs do not include an IP rating.
Is the SLC03A-05 suitable for outdoor installations?
The operating temperature range is -40°C to +85°C, but no IP rating is listed in the provided specs. Without an IP rating, the environmental sealing level is not defined by this data, so outdoor suitability is not established here.
How does the SLC03A-05 compare with the other SLC03A models?
Within the SLC03A series, the SLC03A-05 is 3W with 5V output and 600A output current. The SLC03A-12 is 3W with 12V output and 250A output current, and the SLC03A-15 is 3W with 15V output and 200A output current. All three share the same 9-18VAC input range.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SLC03 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SLC03C-15 DC-DC Converter - 3W - 36~75V in 15V out 200mA | 3W | 15V | 0.2A | Indoor | $9.13 | View |
| Mean Well SLC03C-12 DC-DC Converter - 3W - 36~75V in 12V out 250mA | 3W | 12V | 0.25A | Indoor | $9.76 | View |
| Mean Well SLC03C-05 DC-DC Converter - 3W - 36~75V in 5V out 600mA | 3W | 5V | 0.6A | Indoor | $9.76 | View |
| Mean Well SLC03B-15 DC-DC Converter - 3W - 18~36V in 15V out 200mA | 3W | 15V | 0.2A | Indoor | $9.13 | View |
| Mean Well SLC03B-12 DC-DC Converter - 3W - 18~36V in 12V out 250mA | 3W | 12V | 0.25A | Indoor | $9.76 | View |
| Mean Well SLC03B-05 DC-DC Converter - 3W - 18~36V in 5V out 600mA | 3W | 5V | 0.6A | Indoor | $9.76 | View |
| Mean Well SLC03A-15 DC-DC Converter - 3W - 9~18V in 15V out 200mA | 3W | 15V | 0.2A | Indoor | $9.76 | View |
| Mean Well SLC03A-12 DC-DC Converter - 3W - 9~18V in 12V out 250mA | 3W | 12V | 0.25A | Indoor | $9.76 | View |
