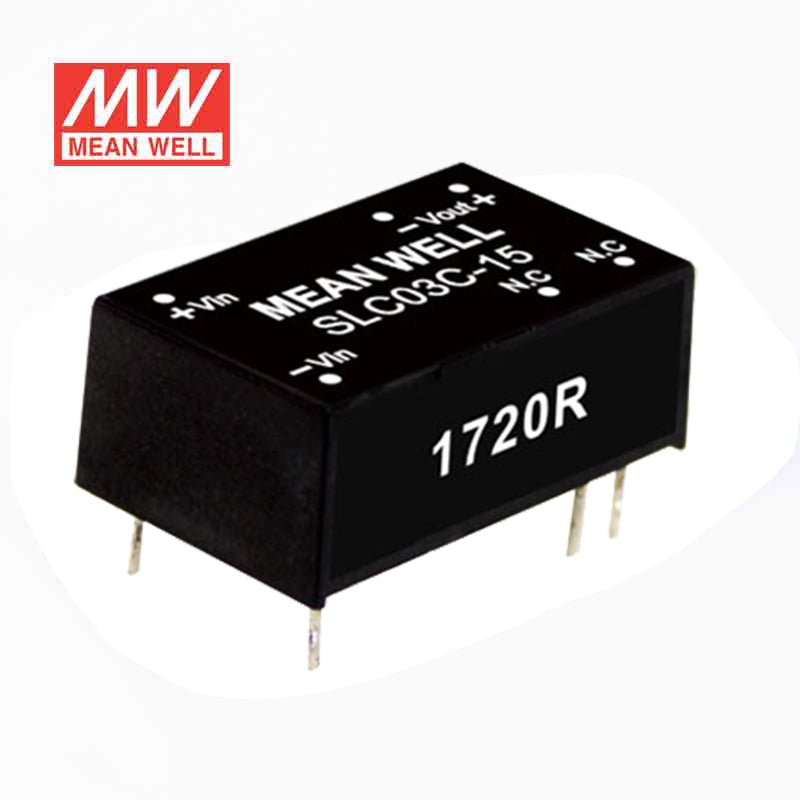

Mean Well SLC03C-15 DC-DC Converter - 3W - 36~75V in 15V out
Description
Description
3 years warranty
Key Features
- ✓DIP16 package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓2:1 wide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓High efficiency up to 82%
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSLC Series
-
Power Rating3 Watt
-
Output Voltage15 Volt
-
Rated Current0.2 Ampere
-
Input Voltage36V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.83 in
-
Width0.54 in
-
Height0.34 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SLC03C-15 to supply a 15V industrial interface board?
Yes, this converter provides constant-voltage 15V output up to 3W from a 36-75VAC input range. Its listed output current is 200A, so it is intended for low-power 15V interface or control electronics rather than larger loads.
Is the SLC03C-15 suitable for compact embedded designs that need 15V output?
It can be a practical choice where board space is tight because the package is only 21.1 × 13.8 × 8.55 mm and weighs 0.0045 kg. The fixed 15V constant-voltage output is aimed at low-power embedded sections that match the 3W rating.
Can this model be used in automation systems with a 36-75VAC source?
Yes, if the system needs a regulated 15V output and the load stays within 3W. The input range makes it suitable for applications that already operate from a higher-voltage AC source.
Is the SLC03C-15 rated for outdoor environments?
The unit is specified for operation from -40°C to +85°C, so it is designed to tolerate a wide temperature range. However, no IP rating is listed, so outdoor suitability cannot be confirmed from the provided specifications.
What are the output differences across the SLC03C family?
The SLC03C family shares a 3W rating and 36-75VAC input range, while the output options vary by model. The SLC03C-05 is 5V with a listed 600A output current, the SLC03C-12 is 12V with 250A, and the SLC03C-15 is 15V with 200A.
Other SLC03 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SLC03C-12 DC-DC Converter - 3W - 36~75V in 12V out | 3W | 12V | 0.25A | Indoor | $9.76 | View |
| Mean Well SLC03C-05 DC-DC Converter - 3W - 36~75V in 5V out | 3W | 5V | 0.6A | Indoor | $9.76 | View |
| Mean Well SLC03B-15 DC-DC Converter - 3W - 18~36V in 15V out | 3W | 15V | 0.2A | Indoor | $9.13 | View |
| Mean Well SLC03B-12 DC-DC Converter - 3W - 18~36V in 12V out | 3W | 12V | 0.25A | Indoor | $9.76 | View |
| Mean Well SLC03B-05 DC-DC Converter - 3W - 18~36V in 5V out | 3W | 5V | 0.6A | Indoor | $9.76 | View |
| Mean Well SLC03A-15 DC-DC Converter - 3W - 9~18V in 15V out | 3W | 15V | 0.2A | Indoor | $9.76 | View |
| Mean Well SLC03A-12 DC-DC Converter - 3W - 9~18V in 12V out | 3W | 12V | 0.25A | Indoor | $9.76 | View |
| Mean Well SLC03A-05 DC-DC Converter - 3W - 9~18V in 5V out | 3W | 5V | 0.6A | Indoor | $9.76 | View |
