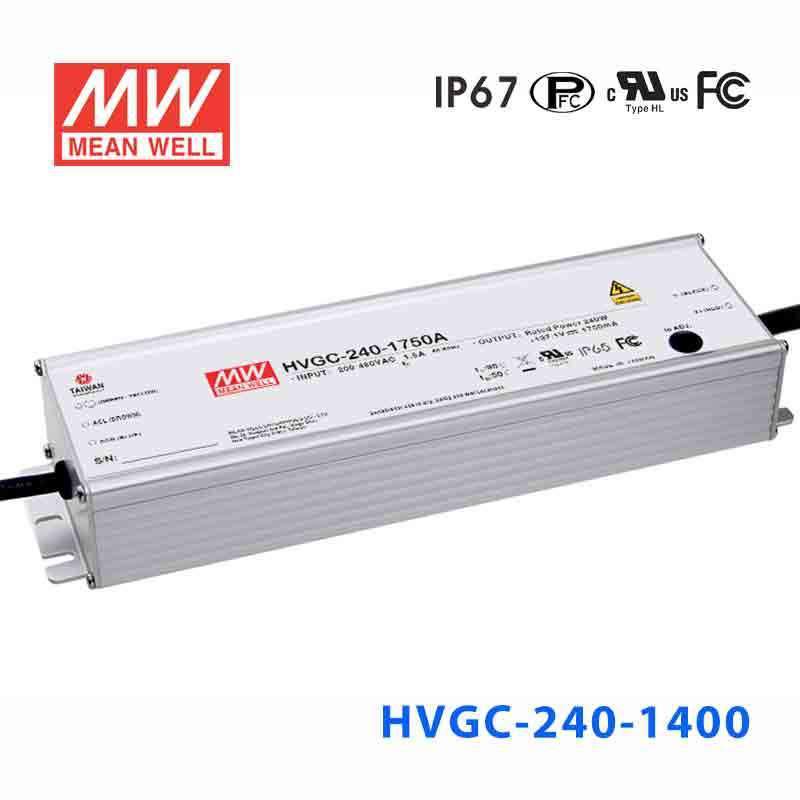

Mean Well HVGC-240-1400B Power Supply 240W 1400mA - Dimmable
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage176 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Can the HVGC-240-1400B be used for outdoor LED downlight applications?
Yes, its IP67 waterproof rating makes it suitable for more exposed environments, provided the LED downlight load is a 1400mA constant current system within the 85-171V CC range. It should not be used in place of a constant voltage driver for fixed-voltage lighting products.
Is this model suitable for weatherproof LED signage modules?
Yes, if the signage module string is designed for 1400mA constant current operation and the total forward voltage falls between 85V and 171V. The IP67 enclosure helps when the driver itself is placed in tougher outdoor or washdown conditions.
Can I use the HVGC-240-1400B for a sealed LED array in industrial conditions?
Yes, the driver combines an IP67 waterproof enclosure with a -40°C to +90°C operating temperature range. The LED array must still match the electrical side: 1400mA constant current and 85-171V total forward voltage.
What makes an LED load electrically compatible with the HVGC-240-1400B?
It must be a constant current LED load that requires 1400mA and operates within the driver's 85-171V CC output range. The number of LEDs depends on each LED's forward voltage, so the correct check is total forward voltage rather than a specific LED count.
What is the main difference between the HVGC-240-1400B and the HVGC-240-1400A or 1400AB?
All three share the same 240W power class, 1400mA output current, 85-171V constant current range, 180-528VAC input range, and -40°C to +90°C operating temperature. The main difference here is enclosure rating: the 1400B is IP67 waterproof, while the 1400A and 1400AB are IP65 water-resistant.
