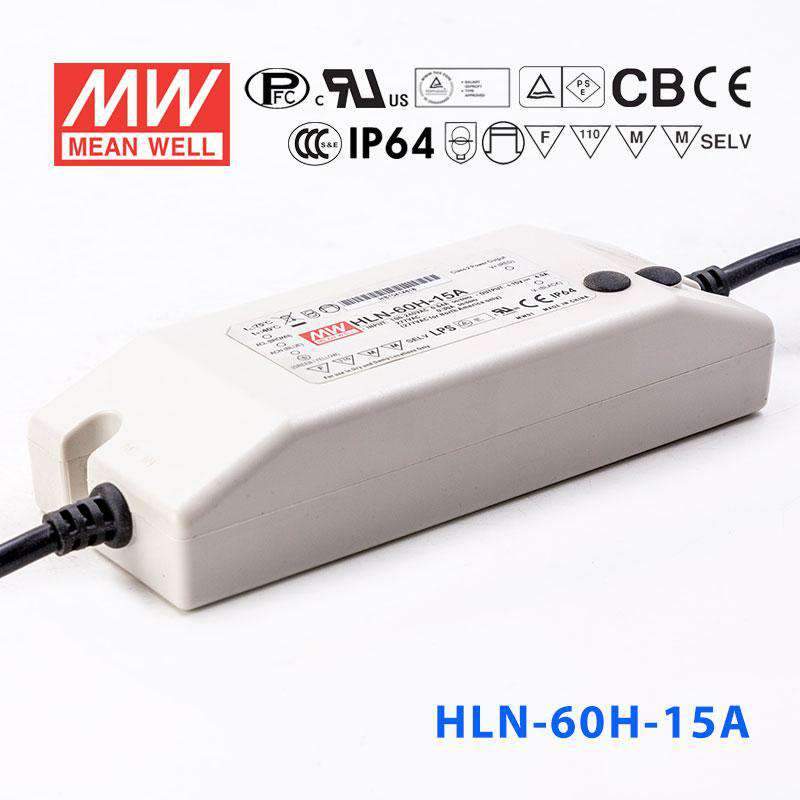

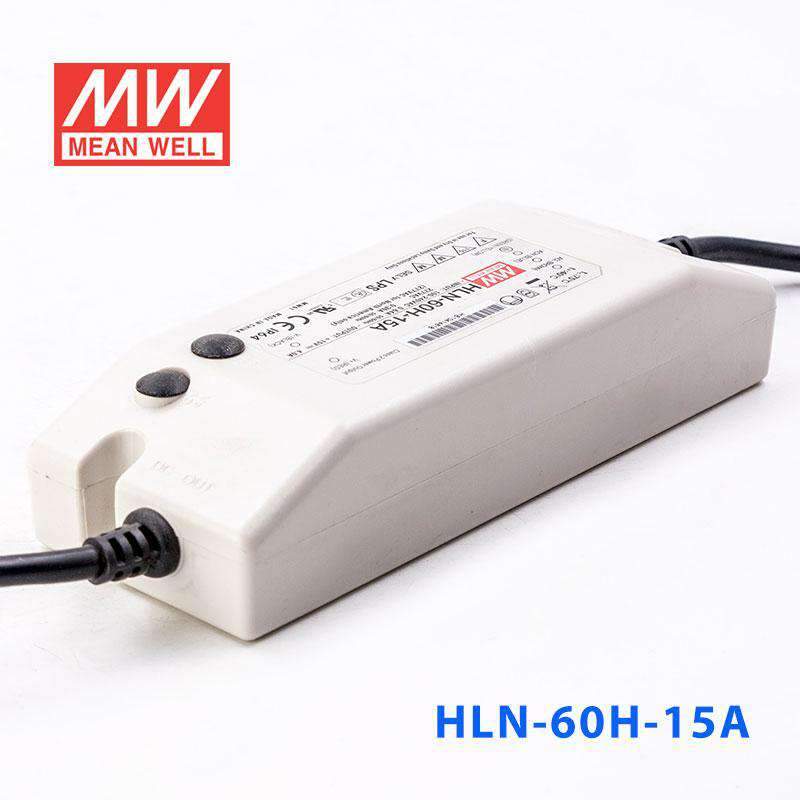

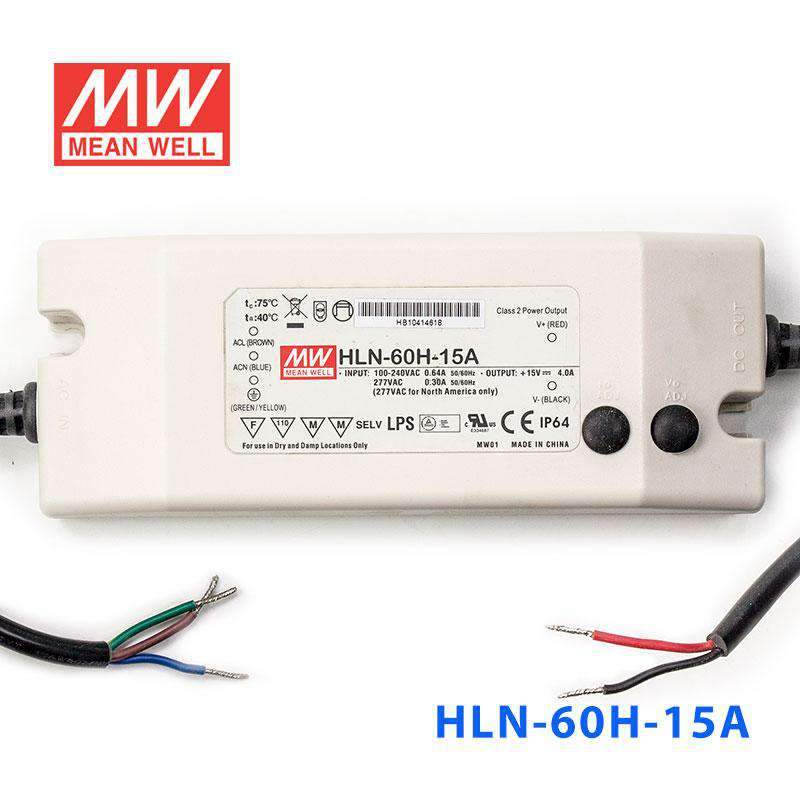

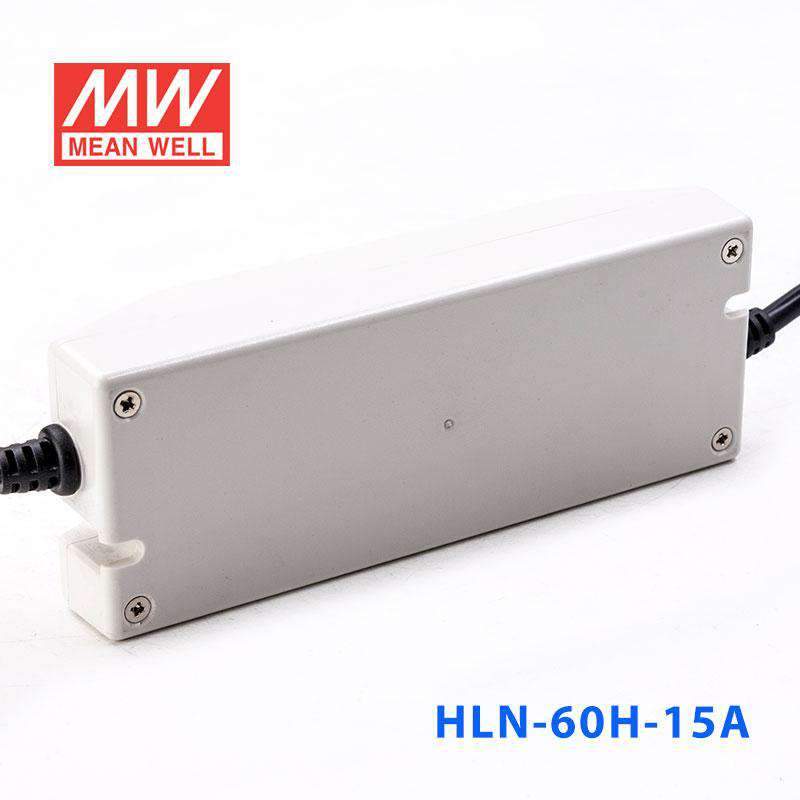

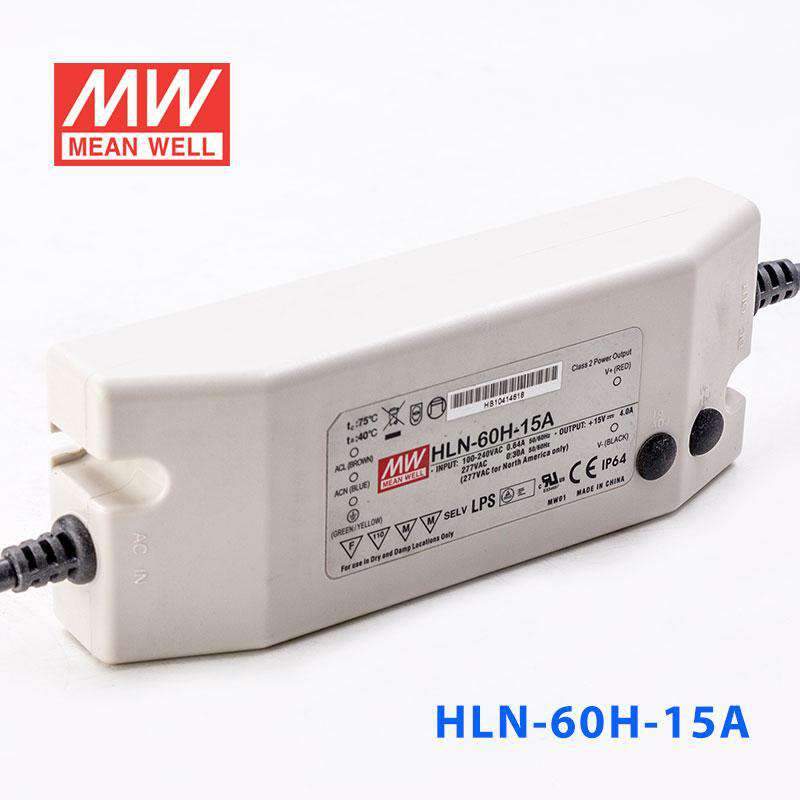

Mean Well HLN-60H-15A Power Supply 60W 15V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-15A Power Supply 60W 15V - IP64, Adjustable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-15A for LED signage that runs at 15V constant current?
Yes, if the sign uses a constant-current LED load within the 9-15V range at 4A. This driver is rated 60W at 15V and is listed as suitable for signage applications. It should only be paired with loads that match its constant-current output.
Is the HLN-60H-15A suitable for low-voltage architectural lighting?
It can be suitable when the fixture is specified for constant-current operation from 9-15V at 4A. The maximum output power is 60W, so the lighting load needs to stay within that limit. Check the fixture's driver requirements rather than matching by voltage alone.
Can this driver be used with a 15V LED strip product?
Only if the strip is a constant-current 15V product that fits the 9-15V CC range at 4A. To estimate maximum strip length, divide 60W by the strip's rated watts per meter. Check your strip rated power per meter before sizing.
Is the HLN-60H-15A appropriate for damp or semi-exposed lighting locations?
Yes, where an IP64 driver is appropriate and the ambient temperature stays within -40°C to +50°C. IP64 indicates protection against dust and splashing water, not continuous water exposure. Use it in locations that match that level of environmental protection.
Can I use this model for cabinet or display lighting that needs a compact driver?
It can work for cabinet or display lighting if the LED load is a constant-current design requiring 4A within 9-15V. The housing measures 161.0 × 61.5 × 35.0 mm, so it is relatively compact for a 60W driver. Electrical compatibility still matters more than physical size alone.
