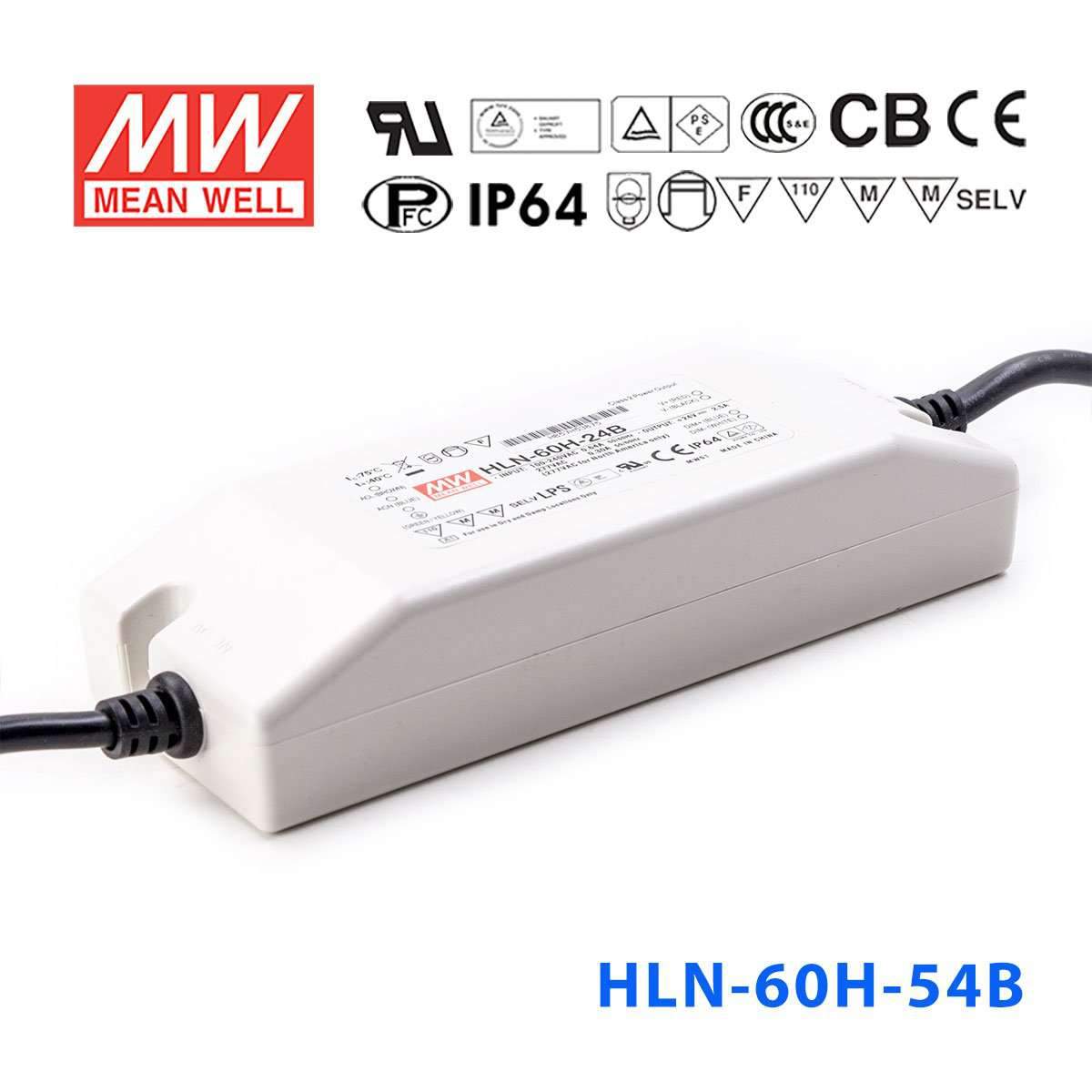

Mean Well HLN-60H-54B Power Supply 60W 54V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-54B Power Supply 60W 54V - IP64, Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 161x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating62.1 Watt
-
Output Voltage54 Volt
-
Rated Current1.15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-60H-54B for dimmable 54V LED signage?
Yes, when the signage load is a constant-current design that falls within 32-54V and up to 1.15A. This B-version combines that 54V output class with dimming support and an IP64 enclosure for signage applications.
Is the HLN-60H-54B suitable for a 54V lighting fixture with a higher forward voltage requirement?
It can be a fit for fixtures that need a constant-current driver operating between 32V and 54V at up to 1.15A. Its 62.1W capacity makes it better suited to loads in that upper-voltage range than lower-output HLN variants.
Can this model be used for outdoor decorative lighting?
It can be used for outdoor decorative lighting assemblies when the electrical load matches 32-54V constant current and stays under 62.1W. The IP64 rating and -40°C to +50°C operating range support exterior environments with dust and splashing water.
How much 54V LED strip can the HLN-60H-54B handle?
The length estimate is based on power: maximum strip length = 62.1W divided by your strip's rated watts per meter. Check your strip rated power per meter, and verify that the strip is designed to work with a 54V constant-current driver before using that estimate.
Is the HLN-60H-54B rated for wet or dusty locations?
Its IP64 case is designed for protection against dust ingress and splashing water, so it suits wet or dusty service conditions better than an open-frame driver. It is not a submersible rating, so it should be used where splash resistance is needed rather than full immersion protection.
