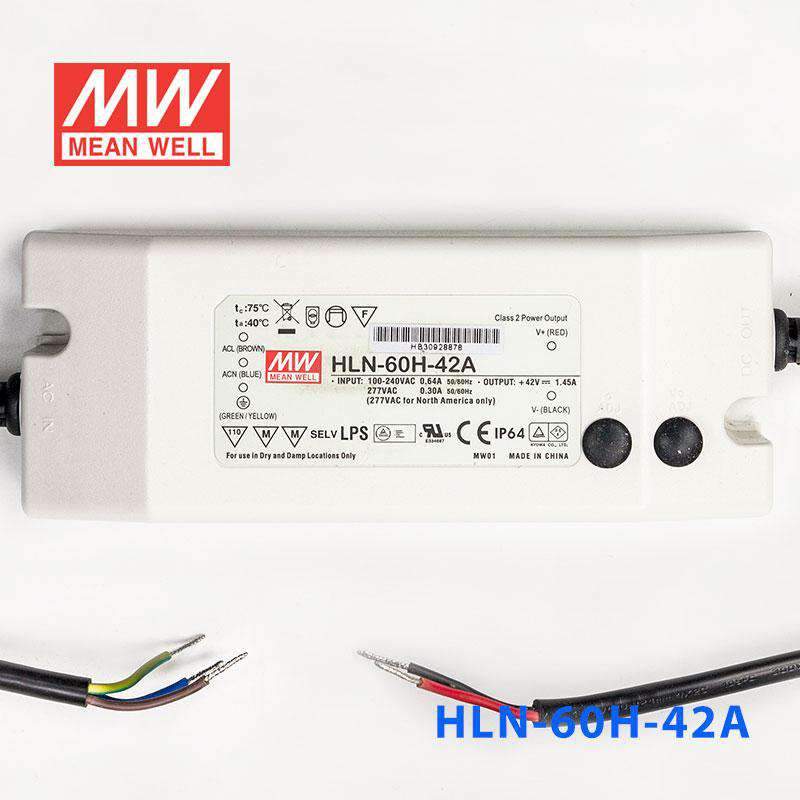

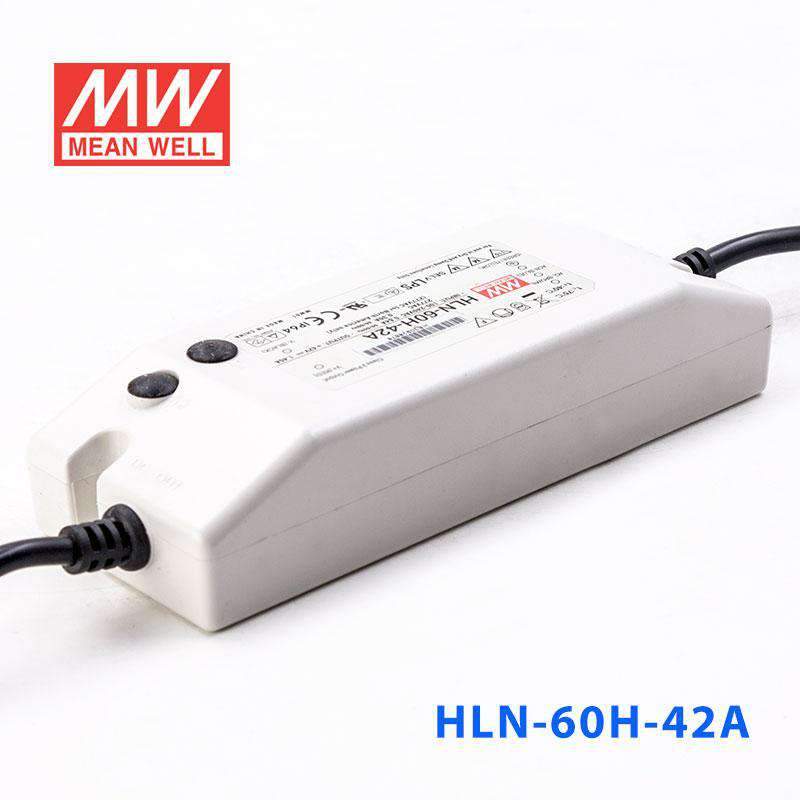

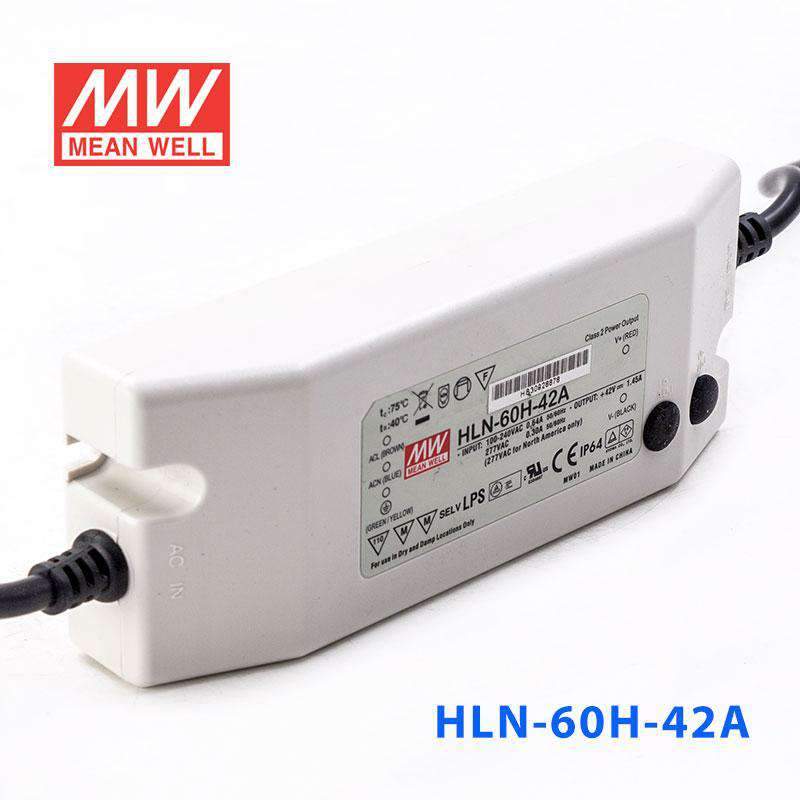

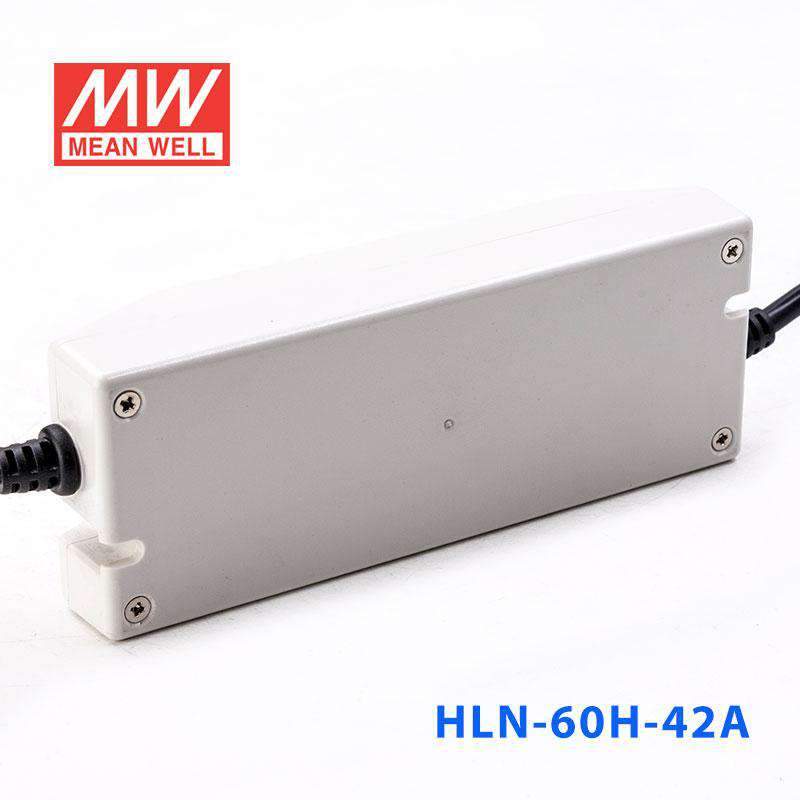

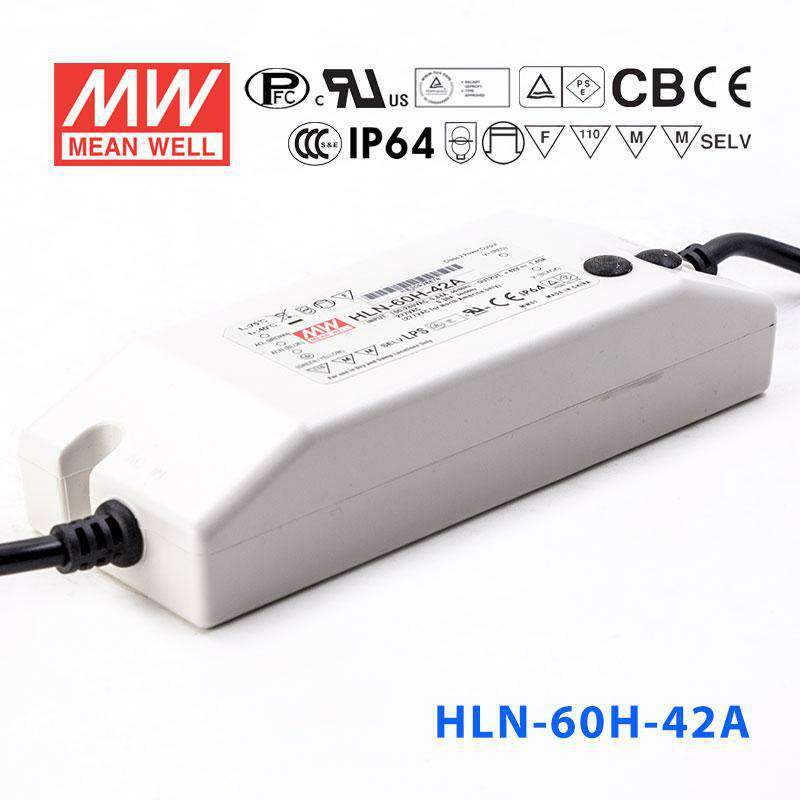

Mean Well HLN-60H-42A Power Supply 60W 42V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-42A Power Supply 60W 42V - IP64, Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 161x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60.9 Watt
-
Output Voltage42 Volt
-
Rated Current1.45 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-60H-42A for 42V LED signage or channel letter lighting?
Yes, this model is specified as suitable for signage applications and provides 42V output in constant current mode. It delivers up to 60.9W at 1.45A, with a constant current voltage range of 25-42V.
Is this a good fit for 42V linear LED lighting in commercial displays?
It can be used for 42V linear lighting loads that match constant current operation. The driver supports up to 60.9W and 1.45A, so the connected fixture needs to stay within the 25-42V range.
Can the HLN-60H-42A power 42V LED strip lighting for indoor or sheltered outdoor use?
It can only be used with a 42V strip or lighting load that is compatible with a constant current driver. The enclosure is IP64, so the driver is intended for dusty or splash-prone locations rather than fully wet or submerged environments.
How much 42V LED strip wattage can this driver handle?
The driver's maximum output is 60.9W. To estimate strip length, divide 60.9W by the strip's rated watts per meter; check your strip rated power per meter and confirm that the strip is designed for 42V constant current operation.
How does the HLN-60H-42A compare with other HLN drivers?
The closest 42V sibling is HLN-60H-42B, which shares the same 60.9W, 42V, 1.45A, and IP64 ratings. Across the wider HLN family, output options run from 12V to 54V, with power levels from 40W to 81.9W and current ratings from 0.75A to 5A.
