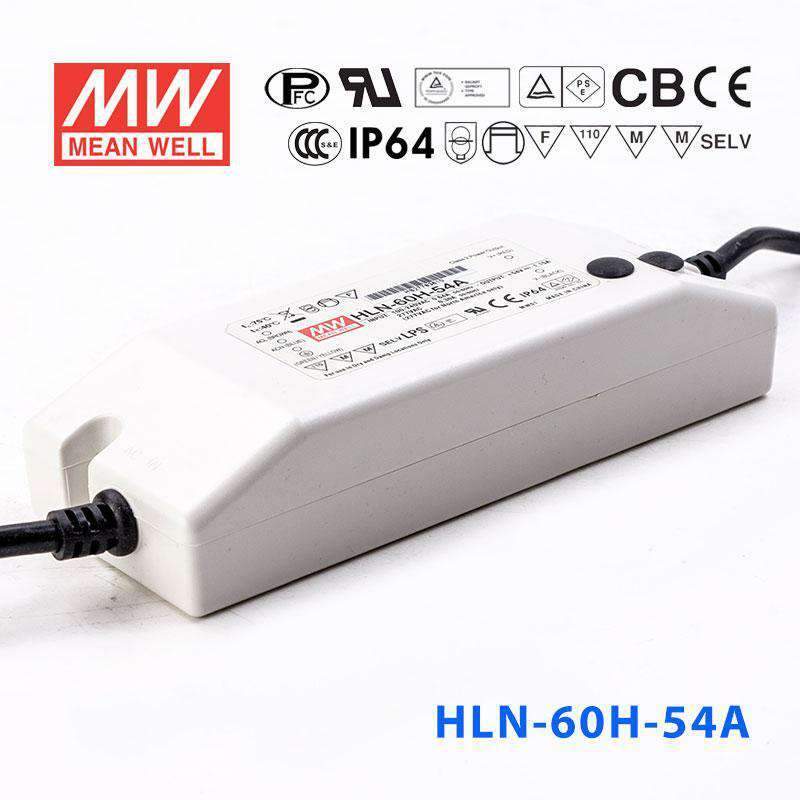

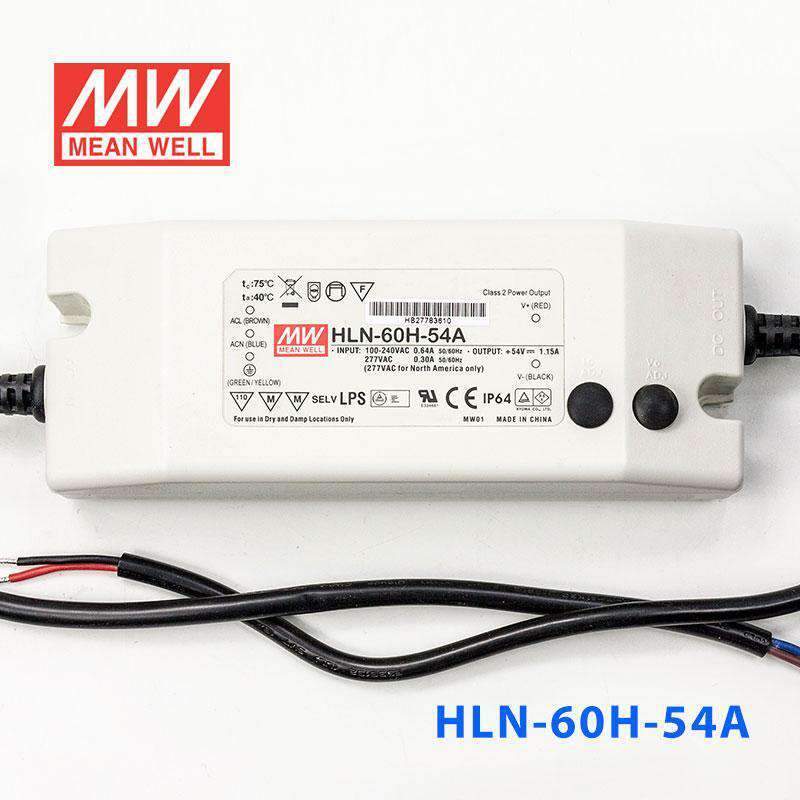

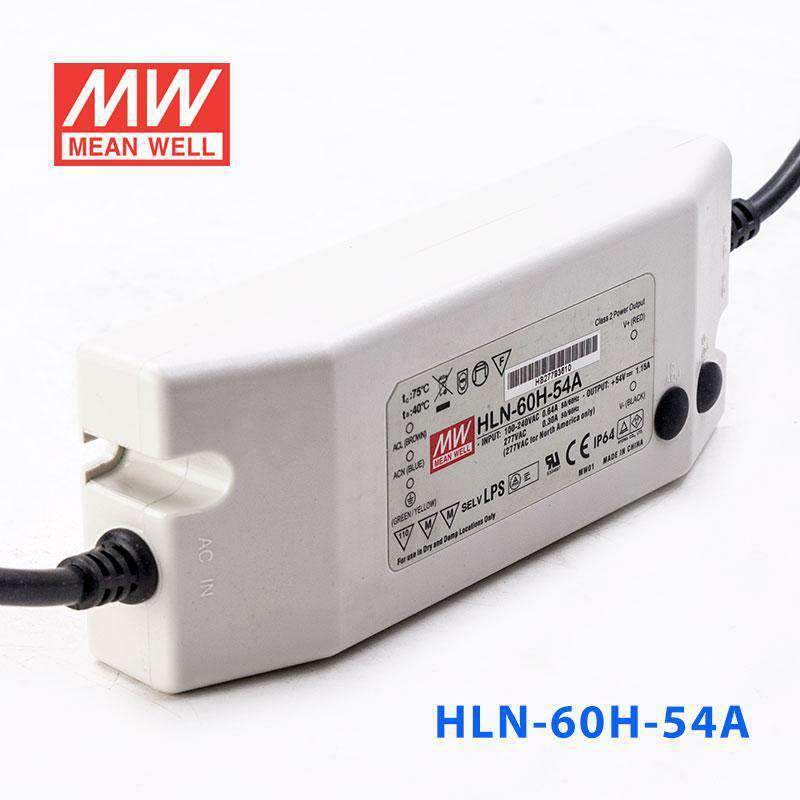

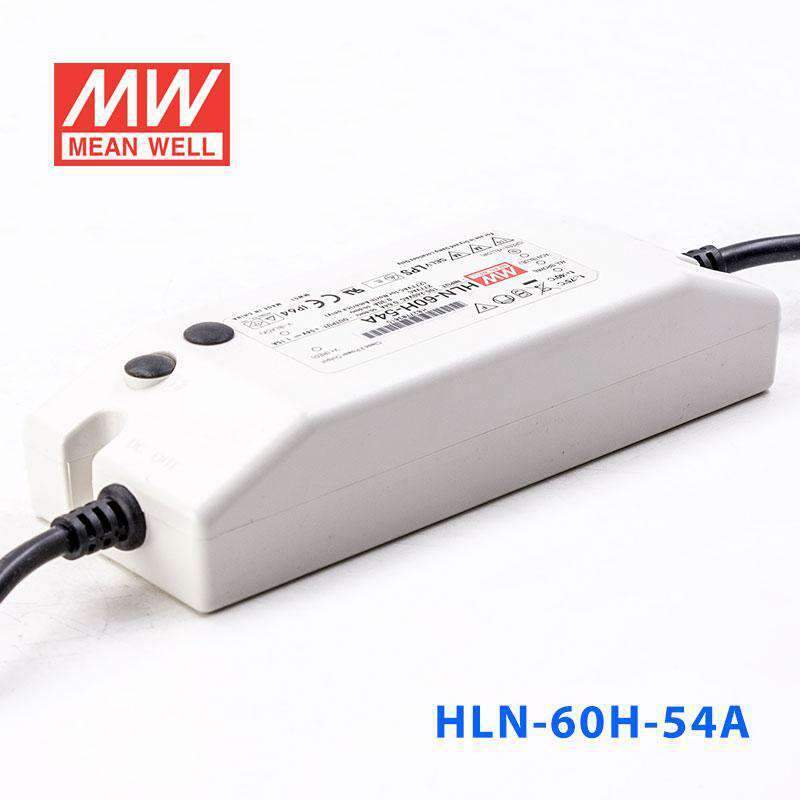

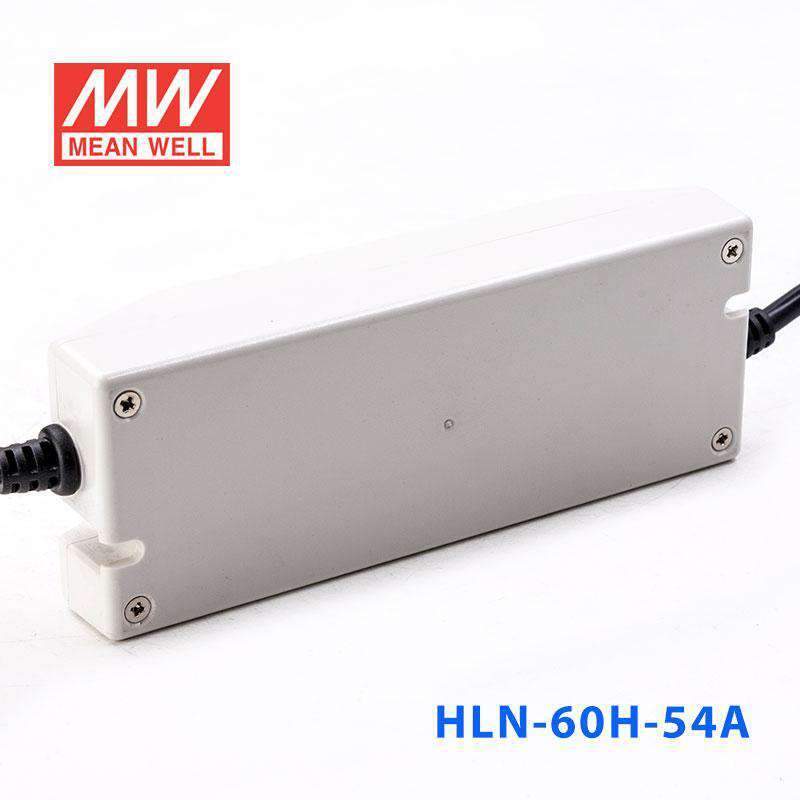

Mean Well HLN-60H-54A Power Supply 60W 54V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-54A Power Supply 60W 54V - IP64, Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 161x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating62.1 Watt
-
Output Voltage54 Volt
-
Rated Current1.15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-60H-54A for high-voltage LED signage strings?
Yes, if the signage load is designed for constant current and operates within the 32-54V range at up to 1.15A. Its 62.1W rating and IP64 enclosure make it a practical match for signage applications needing a higher output voltage model.
Is this driver a fit for 54V linear lighting fixtures?
It is intended for constant-current LED loads, so it fits 54V linear lighting fixtures only when their requirement stays inside 32-54V and 1.15A. The adjustable A-version is useful where the fixture spec calls for fine output trimming within that range.
Can the HLN-60H-54A be used for perimeter or facade lighting?
It can be used for facade or perimeter lighting assemblies that are built for constant current operation up to 62.1W. The IP64 rating and -40°C to +50°C operating range support exposed lighting environments with dust, rain splash, and seasonal temperature swings.
How do I estimate maximum LED strip length with the HLN-60H-54A?
Use the power limit as the starting point: max strip length = 62.1W divided by the strip's rated watts per meter. Check your strip rated power per meter, and make sure the strip is compatible with a 54V constant-current driver because this is not a generic constant-voltage supply.
How does the HLN-60H-54A compare with other HLN series outputs?
Within the HLN family, 40H models cover 12V 3.33A, 15V 2.67A, 20V 2A, 24V 1.67A, 30V 1.34A, 36V 1.12A, 42V 0.96A, 48V 0.84A, and 54V 0.75A in A and B versions. The 60H range covers 15V 4A, 20V 3A, 24V 2.5A, 30V 2A, 36V 1.7A, 42V 1.45A, 48V 1.3A, and 54V 1.15A, while the 80H range covers 12V 5A, 15V 5A, 20V 4A, 24V 3.4A, 30V 2.7A, 36V 2.3A, 42V 1.95A, 48V 1.7A, and 54V 1.5A. The HLN-60H-54A sits in the 60H 54V position at 62.1W and 1.15A.
