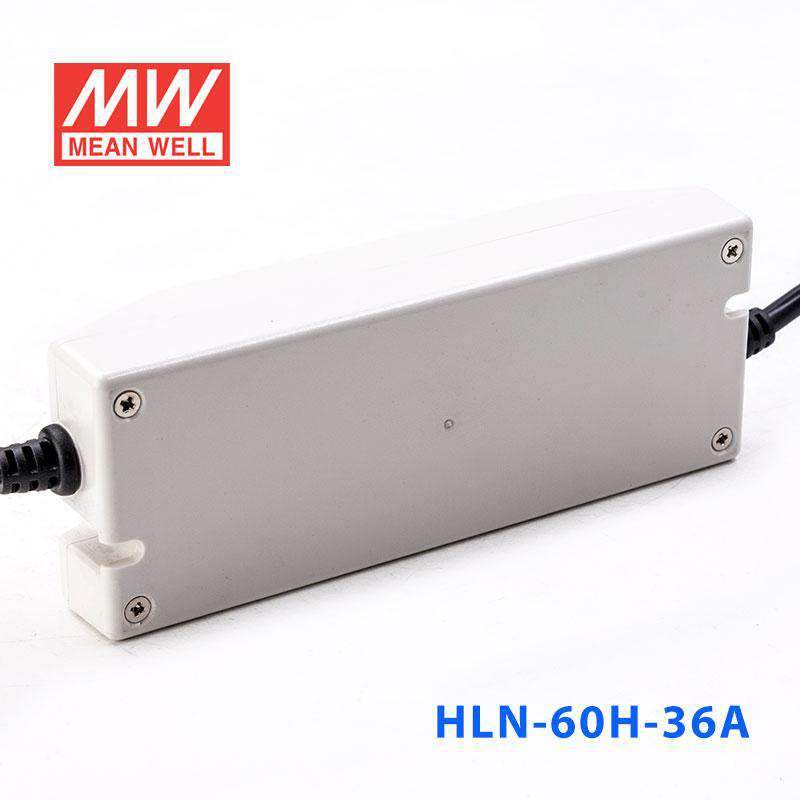

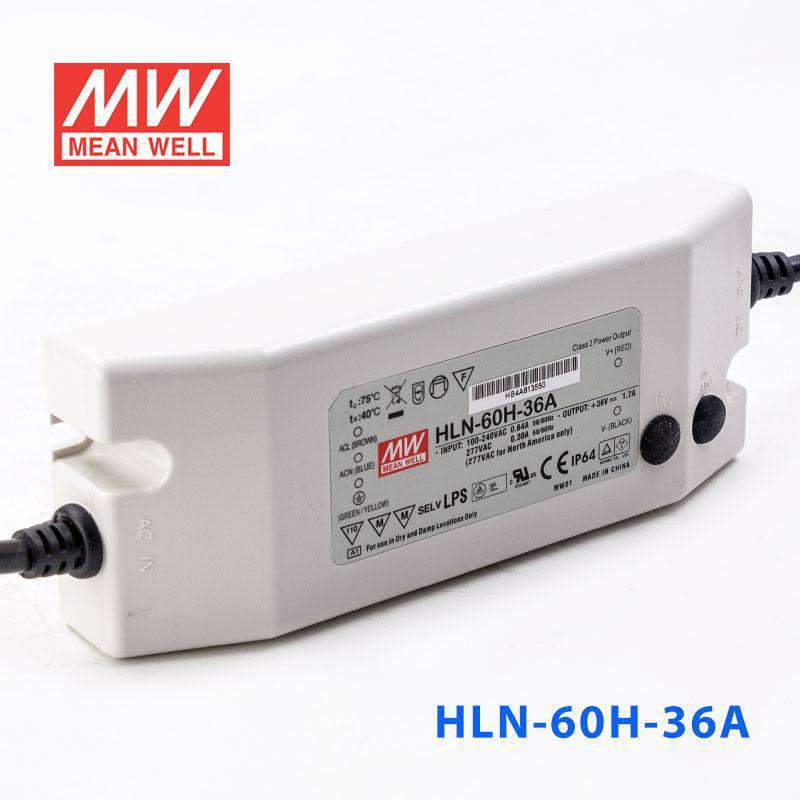

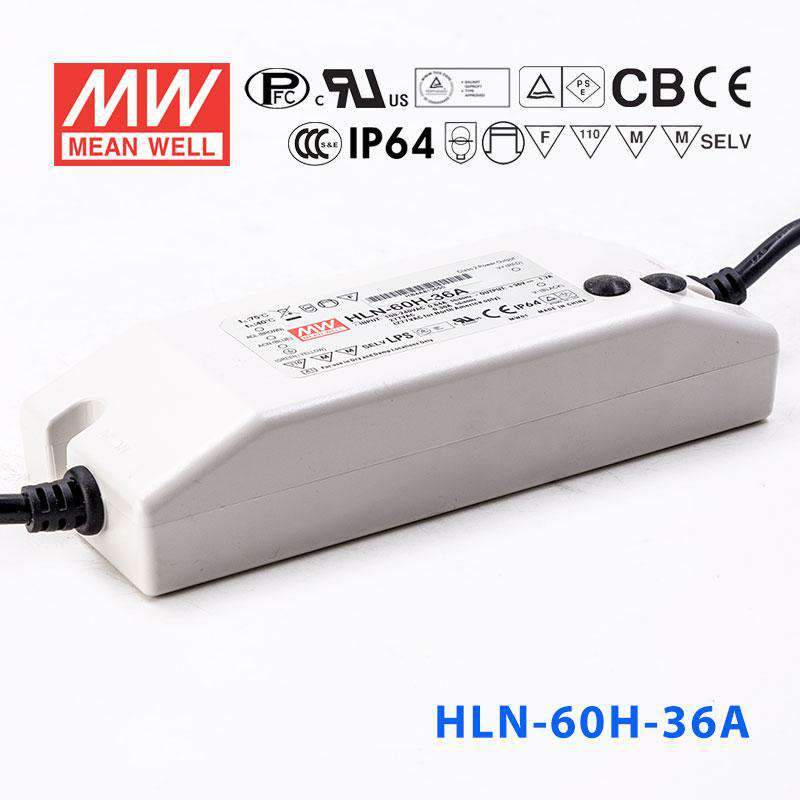

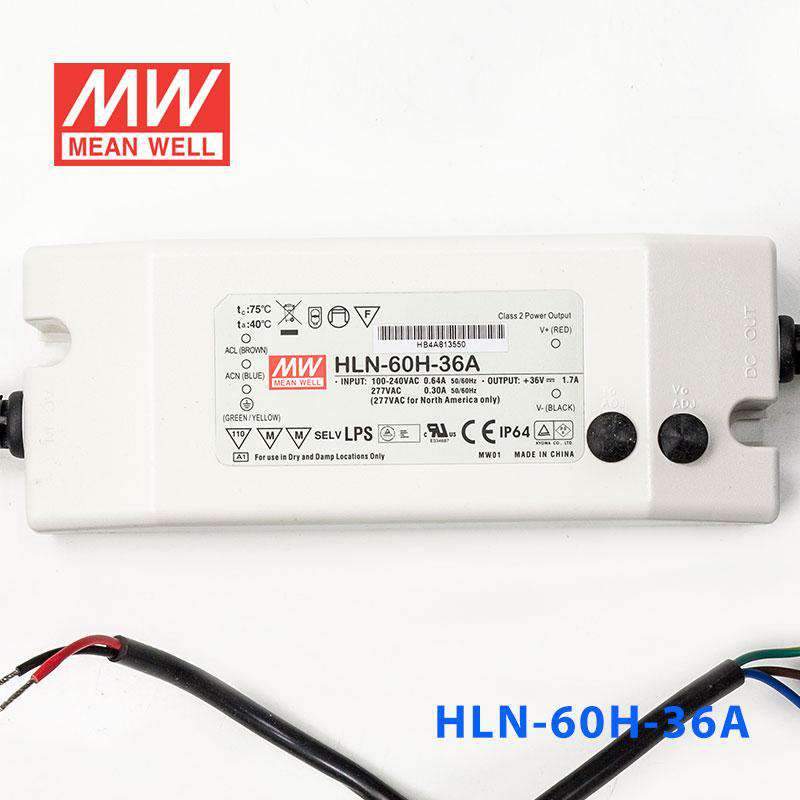

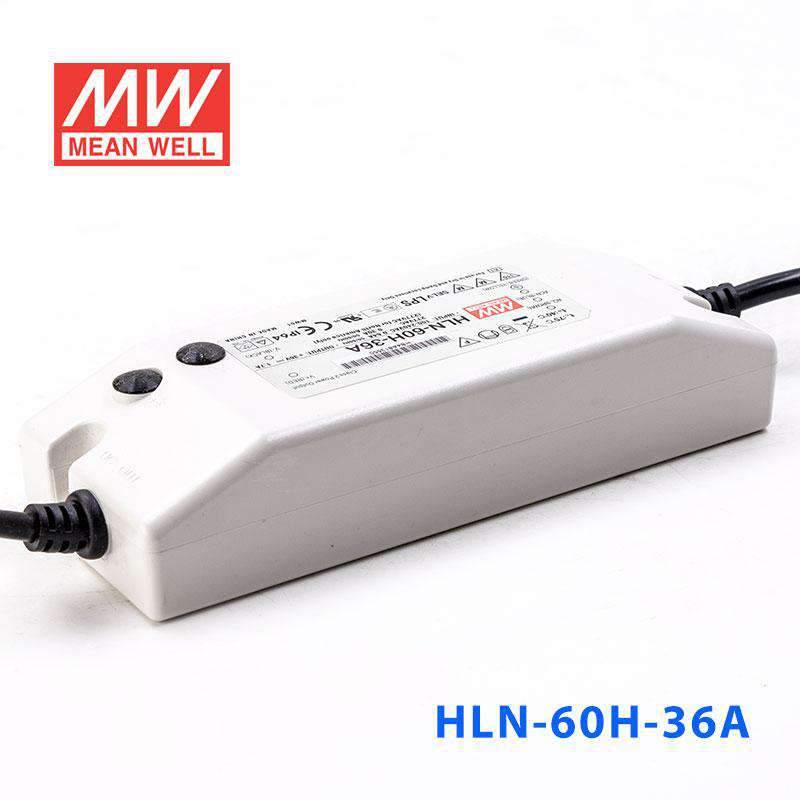

Mean Well HLN-60H-36A Power Supply 60W 36V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-36A Power Supply 60W 36V - IP64, Adjustable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating61.2 Watt
-
Output Voltage36 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-36A for 36V LED signage lighting?
Yes, this driver is rated for signage applications and provides 36V output in constant current mode. Its maximum output is 61.2W at 1.7A, so the connected 36V load needs to fall within the 21-36V constant current range.
Is this driver suitable for 36V architectural or accent lighting in damp locations?
It can be used for 36V lighting where an IP64-rated driver is appropriate. The IP64 enclosure is designed to resist dust and water splashes, and the operating temperature range is -40°C to +50°C.
Can this power a 36V LED strip run for commercial display lighting?
It can be used with a 36V LED strip only if the strip is compatible with a constant current 36V driver. The driver can deliver up to 61.2W, and its constant current operating range is 21-36V.
How much 36V LED strip can the HLN-60H-36A support?
The maximum output power is 61.2W, so estimated strip length is 61.2 divided by the strip's rated watts per meter. For example, the formula is 61.2W / strip W/m = maximum meters; check your strip rated power per meter and confirm it is compatible with 36V constant current operation.
What is the difference between the HLN-60H-36A and other HLN series options?
Within the 60W 36V pair, HLN-60H-36A and HLN-60H-36B both provide 61.2W, 36V, 1.7A, and IP64 protection. Other HLN siblings in the same family span 40W, 60W, and 80W classes with output voltages from 12V to 54V and currents from 0.75A to 5A.
