Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HLN-60H-24B Power Supply 60W 24V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours

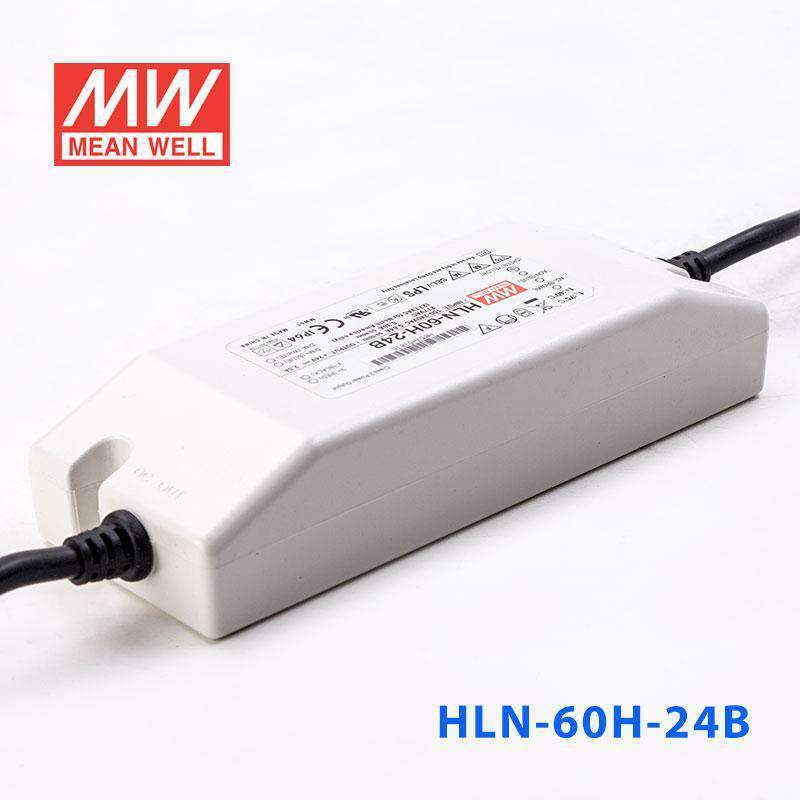

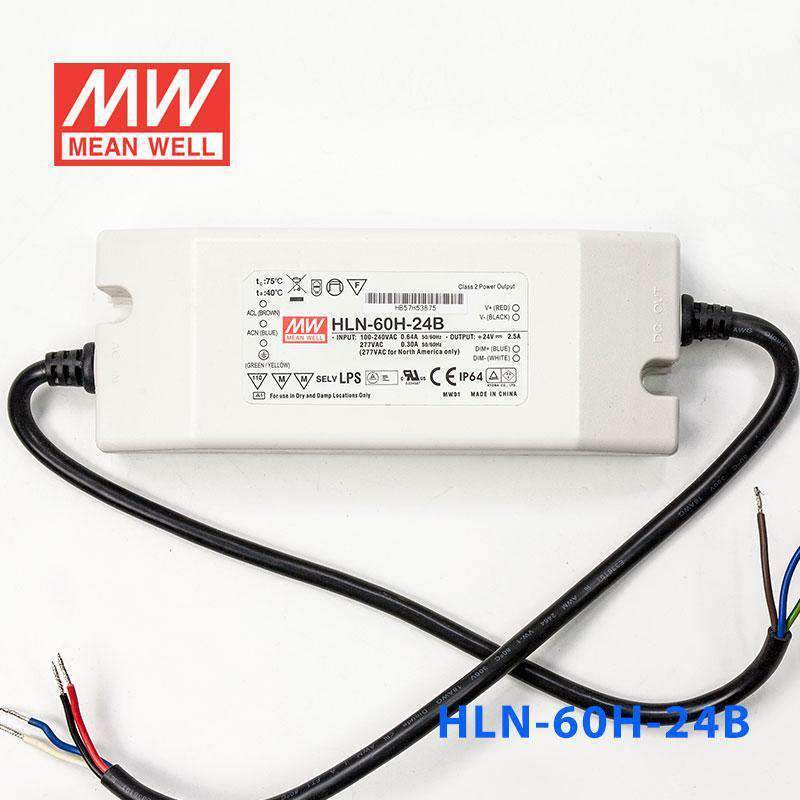

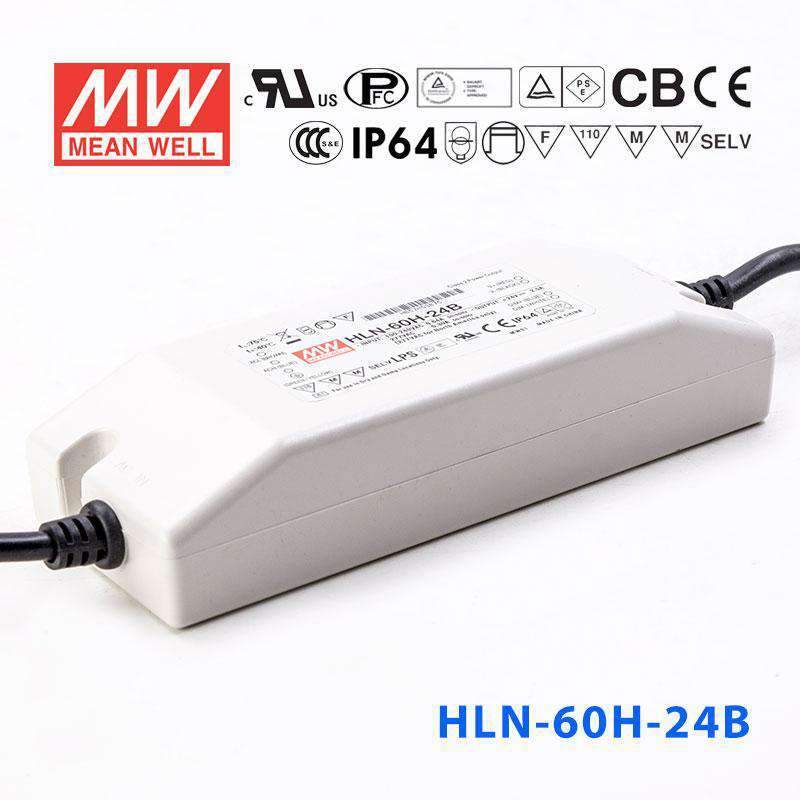

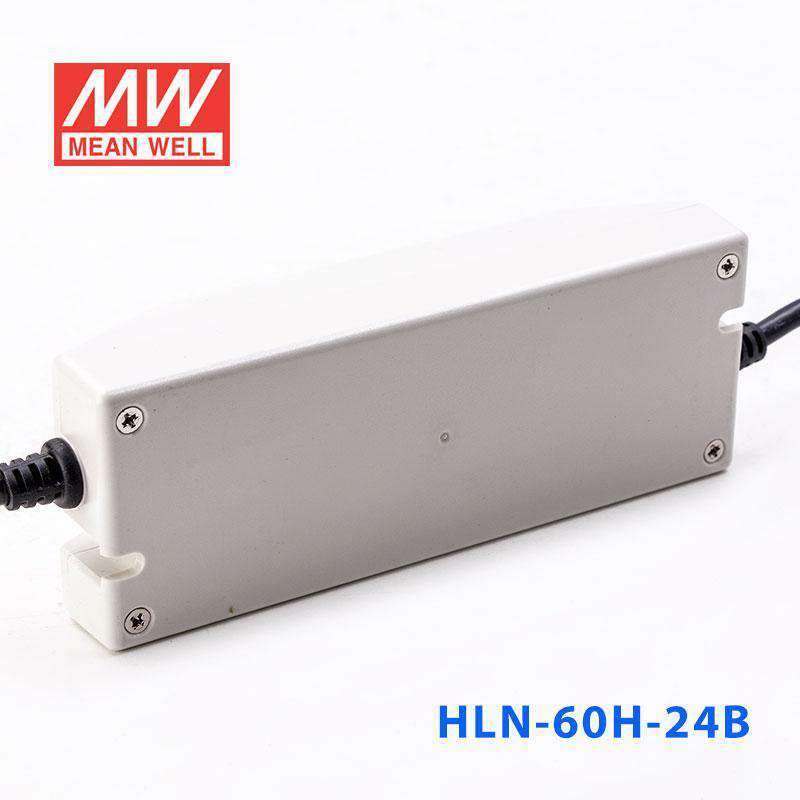

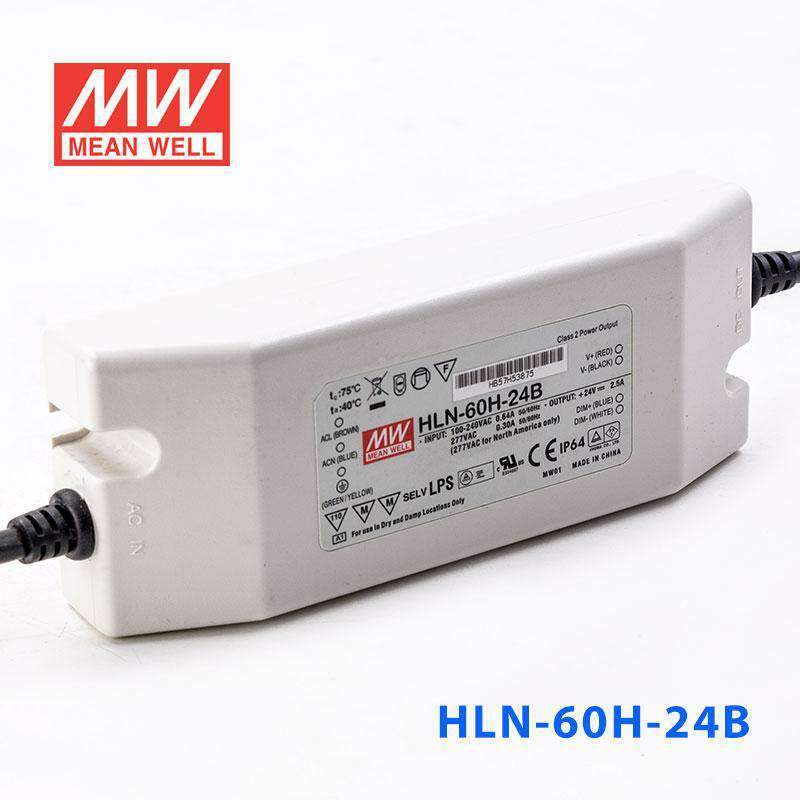

Mean Well HLN-60H-24B Power Supply 60W 24V - IP64, Dimmable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-24B for dimmable sign lighting?
Yes, this 24V dimmable model is intended for LED driver use and is listed as suitable for signage applications. The connected lighting load still needs to match the driver's 60W maximum, 2.5A output current, and 14-24V constant-current range.
Is the HLN-60H-24B suitable for dimmable display or retail lighting?
It can be used for dimmable display or retail lighting if the fixture is a constant-current LED load rated for 24V and up to 2.5A. The driver's maximum output is 60W, and the load should operate within the 14-24V CC range.
Can this driver be used with 24V LED strip lighting in a lighting feature?
It can be used with LED strip lighting only if the strip is designed for constant-current operation rather than a fixed-voltage supply. The strip or lighting feature must fit the 24V output, 2.5A current, 60W power limit, and 14-24V operating range.
How do I size LED strip length for the HLN-60H-24B?
Use the 60W power rating for the estimate: maximum strip length = 60W divided by the strip's rated watts per meter. Check your strip rated power per meter, and make sure the strip is compatible with a 24V constant-current driver rated at 2.5A.
Can the HLN-60H-24B handle outdoor or damp-area lighting use?
Its IP64 enclosure supports use where dust protection and splash resistance are needed, which fits many outdoor or damp-area lighting applications. The driver is also rated for -40°C to +50°C operation, but IP64 is not intended for submerged use.
