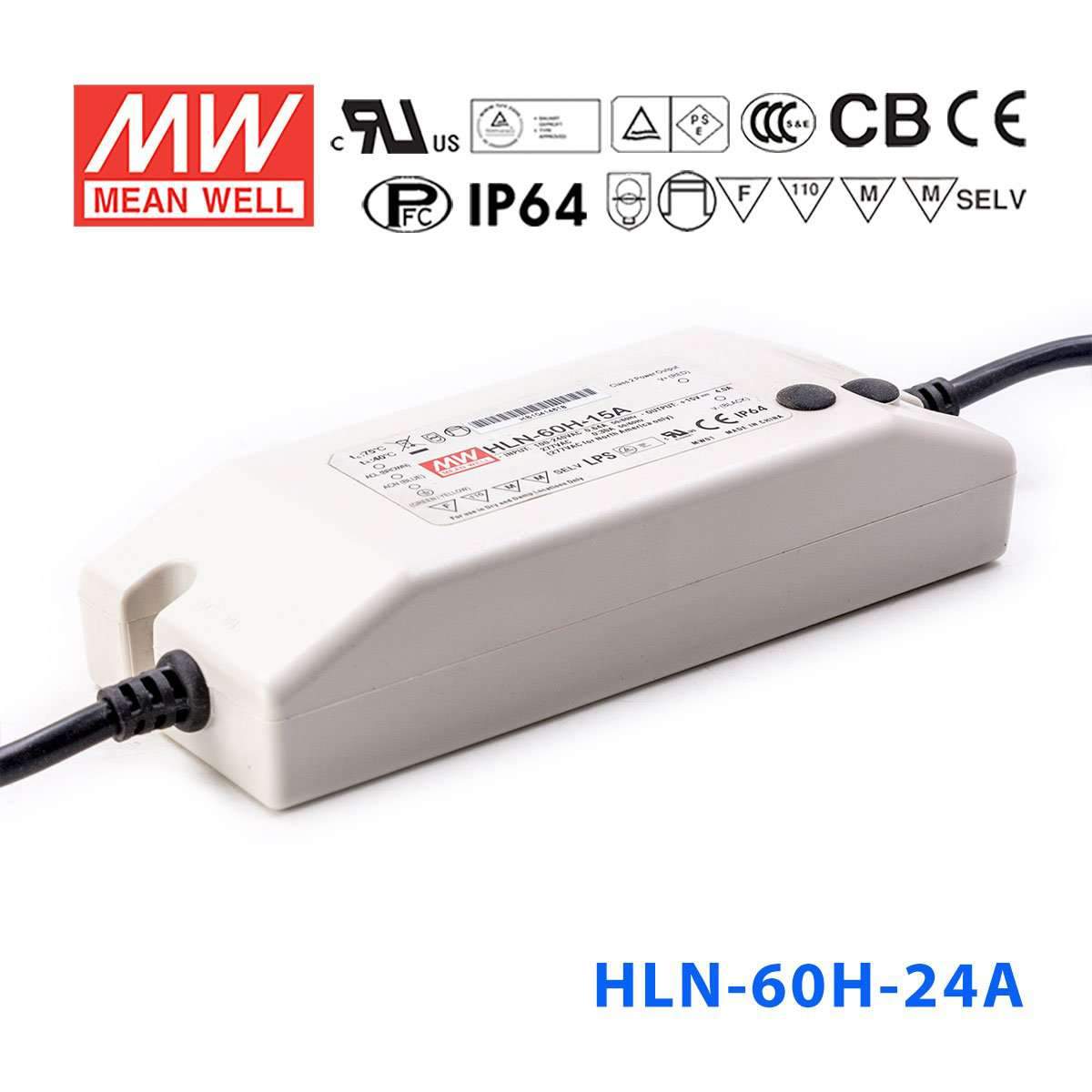

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HLN-60H-24A Power Supply 60W 24V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-24A Power Supply 60W 24V - IP64, Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 161x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-60H-24A for outdoor sign lighting?
Yes, it is suitable for signage applications and has an IP64 enclosure for splash-resistant use. Electrically, it provides 24V output at 2.5A with 60W maximum power and a 14-24V constant-current range, so the sign lighting load needs to match those values.
Is the HLN-60H-24A a good match for 24V architectural lighting?
It can be a match for constant-current architectural lighting products rated for 24V, up to 2.5A, and up to 60W. The load also needs to stay within the stated 14-24V CC operating range.
Can this model power 24V LED strip runs for display lighting?
It can work for LED strip runs only when the strip is built for constant-current operation and matches the driver's 24V, 2.5A, and 60W limits. For display lighting, verify both the strip's rated power per meter and that its operating range fits 14-24V.
What LED strip length can I estimate from the HLN-60H-24A?
Estimate the maximum strip length with this formula: 60W divided by the strip's rated watts per meter. That gives the power-based length limit, and you should also check your strip rated power per meter and confirm it is a constant-current strip compatible with 24V output and the 14-24V range.
Is the HLN-60H-24A suitable for wet or exposed environments?
The IP64 rating means it is built for dust protection and resistance to splashing water, which suits many exposed lighting locations. Its operating temperature range is -40°C to +50°C, but IP64 does not indicate suitability for submersion.
