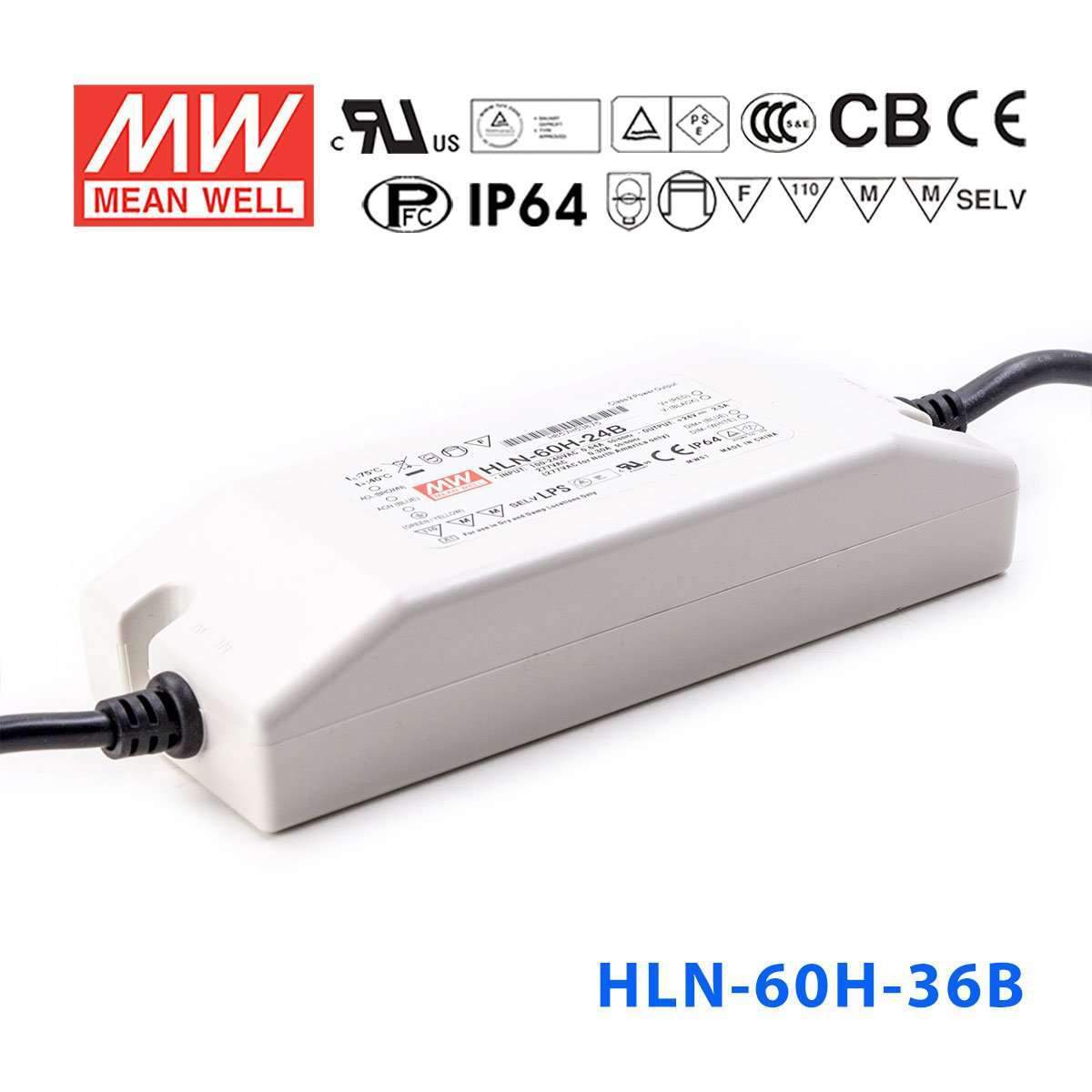

Mean Well HLN-60H-36B Power Supply 60W 36V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-36B Power Supply 60W 36V - IP64, Dimmable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating61.2 Watt
-
Output Voltage36 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-36B for 36V illuminated signage?
Yes, it is listed as suitable for signage applications and provides a 36V constant current output. Its rated output is 61.2W at 1.7A, with a constant current voltage range of 21-36V.
Is the HLN-60H-36B appropriate for 36V display or cove lighting in covered outdoor areas?
It can be used where an IP64-rated driver is appropriate for the environment. IP64 means protection against dust ingress and splashing water, and the unit is rated for -40°C to +50°C operation.
Can this model run a 36V LED lighting load for retail or hospitality fixtures?
It can, as long as the lighting load matches the driver's constant current operation and 21-36V output range. The driver is limited to 61.2W maximum and 1.7A output current.
How do I estimate the maximum 36V LED strip length for this driver?
Use the driver's 61.2W maximum output and divide it by the strip's watts per meter. The calculation is 61.2W / strip W/m = maximum meters; check your strip rated power per meter and make sure the strip is compatible with 36V constant current output.
Can the HLN-60H-36B be used outdoors or in wet areas?
It is suitable for environments where IP64 protection is sufficient, meaning dust protection and resistance to splashing water. It is not described here as submersible, so it should be matched to locations that fit an IP64-rated enclosure.
