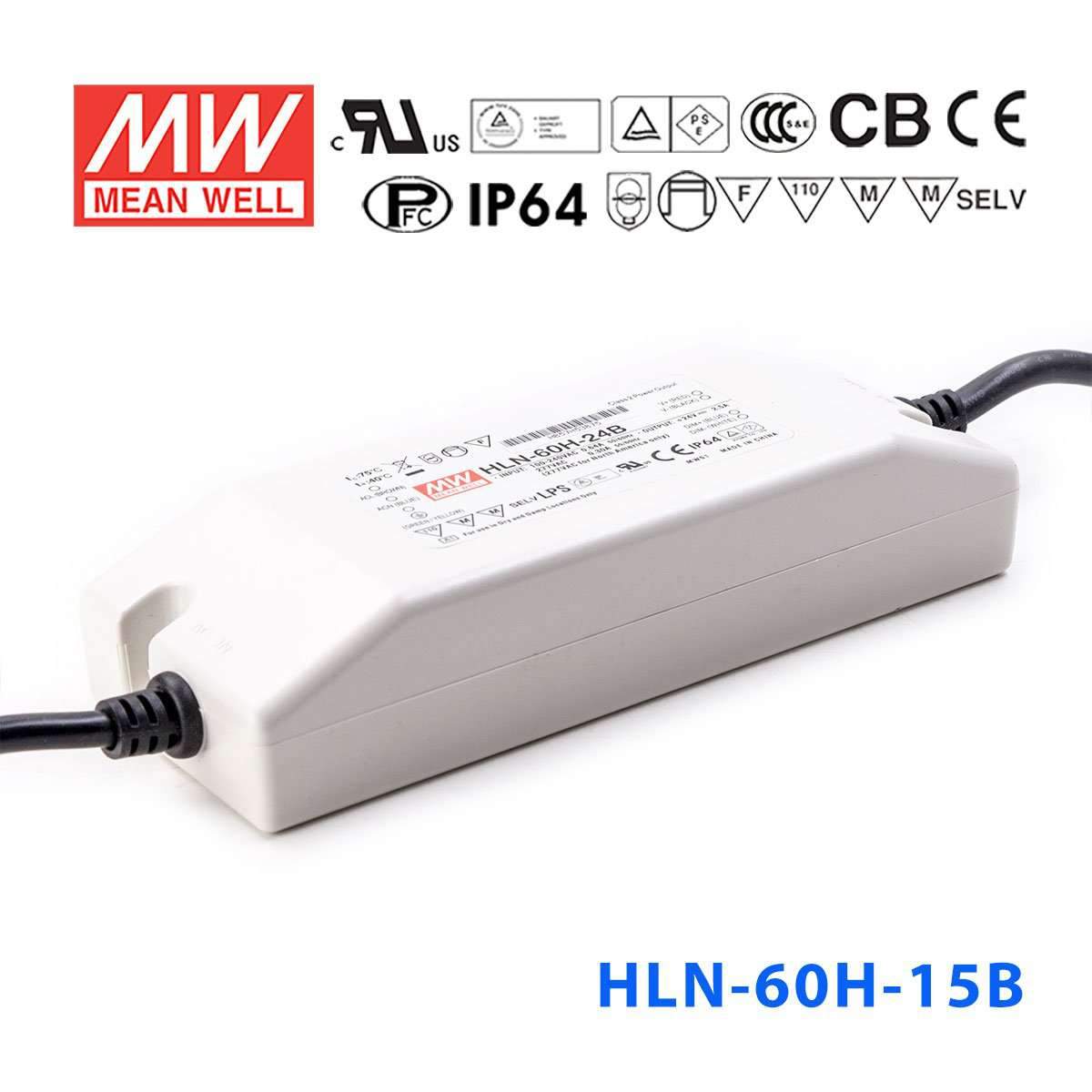

Mean Well HLN-60H-15B Power Supply 60W 15V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-15B Power Supply 60W 15V - IP64, Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 161x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-60H-15B for dimmable LED signage at 15V?
Yes, if the sign uses a constant-current LED load operating within 9-15V at 4A. This driver is rated 60W at 15V and is listed as suitable for signage applications. The connected load still needs to match the driver's constant-current range.
Is the HLN-60H-15B suitable for dimmable accent lighting in a 15V system?
It can be suitable when the fixture is designed for constant-current operation from 9-15V and draws 4A. The available output power is 60W, so the total lighting load needs to remain within that rating. It is intended for matched constant-current lighting products, not generic constant-voltage loads.
How do I estimate LED strip length for the HLN-60H-15B?
Use the driver's power limit: 60W divided by the strip's rated watts per meter equals the estimated maximum length. That estimate applies only if the strip is a 15V constant-current product within the 9-15V range at 4A. Check your strip rated power per meter before sizing.
Can this driver be used outdoors for sign or lighting projects?
It is intended for conditions where IP64 protection is appropriate, and it operates from -40°C to +50°C. That supports dusty areas and splashing water exposure, but not submersion. Use it where the environment matches an IP64-rated driver.
How does the HLN-60H-15B compare with the HLN-60H-15A and related HLN models?
The HLN-60H-15B and HLN-60H-15A share the same 60W, 15V, 4A electrical rating. Other listed 60H outputs are 20V 3A, 24V 2.5A, 30V 2A, 36V 1.7A, 42V 1.45A, 48V 1.3A, and 54V 1.15A. The broader family shown here also includes 40H models from 12V 3.33A to 54V 0.75A and 80H models from 12V 5A to 54V 1.5A.
