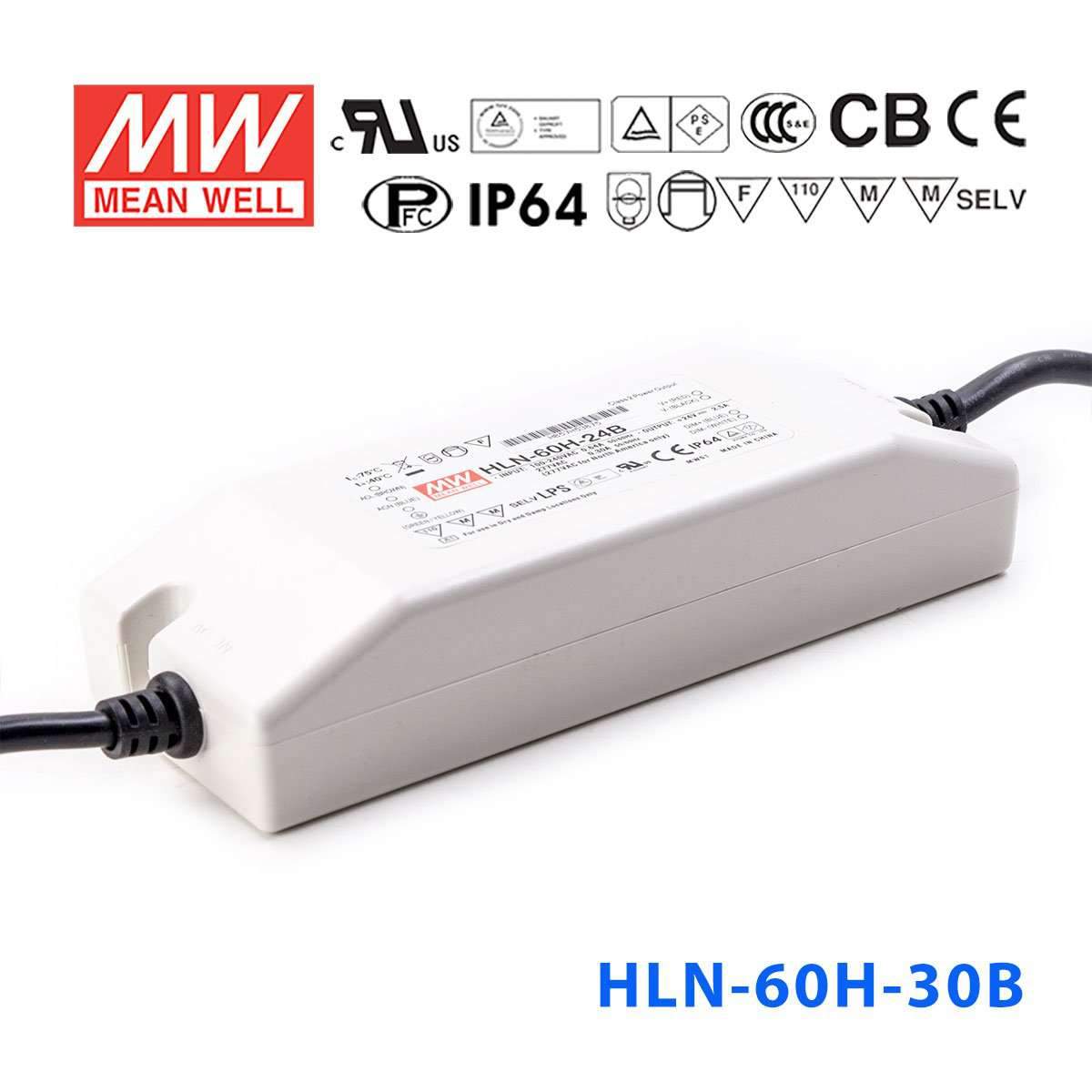

Mean Well HLN-60H-30B Power Supply 60W 30V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-30B Power Supply 60W 30V - IP64, Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 161x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-60H-30B for dimmable 30V signage lighting?
Yes, this dimmable driver can be used for signage lighting when the LED load is designed for constant-current operation at 30V. It provides up to 2A and 60W, and the supported constant-current range is 18-30V.
Is the HLN-60H-30B a fit for dimmable accent or cove lighting?
It can be a fit for dimmable accent or cove lighting if the LED load matches a 30V constant-current driver and stays within 2A and 60W. The fixture should also operate inside the 18-30V CC range.
Can this driver run a 30V LED strip in a lighting display?
It can run a lighting display strip only when the strip is a constant-current type compatible with 30V output. Check the strip's rated power per meter and confirm the total load stays within 60W and 2A.
How much LED strip can I use with the HLN-60H-30B?
Use the driver's 60W rating to calculate the maximum length: 60W divided by the strip's rated watts per meter. Check your strip rated power per meter, and make sure the strip is compatible with a constant-current 30V, 2A driver in the 18-30V range.
Can the HLN-60H-30B be used in damp or outdoor areas?
Its IP64 rating supports use where dust protection and resistance to splashing water are important, including many damp or outdoor lighting areas. The operating temperature range is -40°C to +50°C, but IP64 is not a submerged-use rating.
