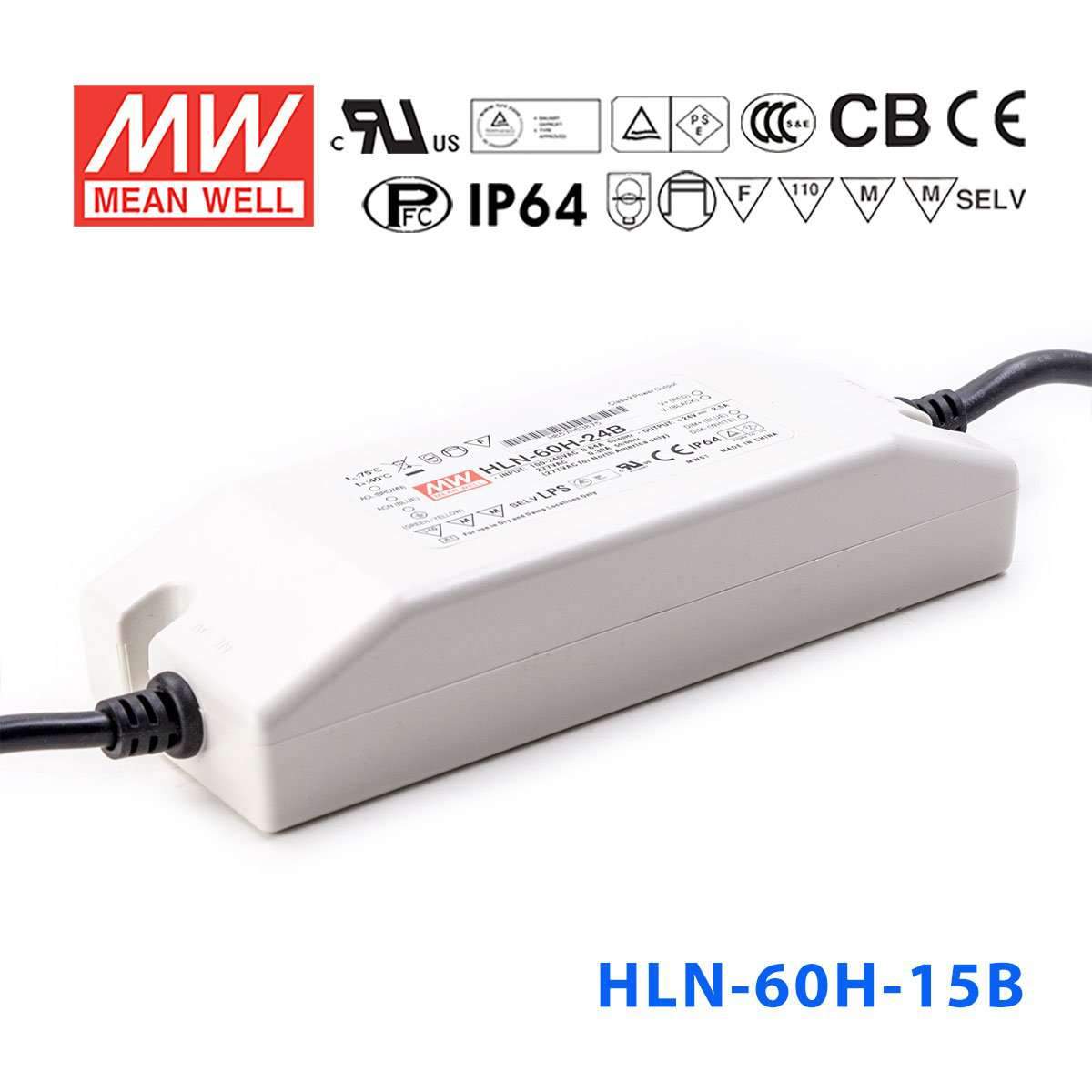

Mean Well HLN-60H-15B Power Supply 60W 15V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-15B Power Supply 60W 15V - IP64, Dimmable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-15B for dimmable LED signage at 15V?
Yes, if the sign uses a constant-current LED load operating within 9-15V at 4A. This driver is rated 60W at 15V and is listed as suitable for signage applications. The connected load still needs to match the driver's constant-current range.
Is the HLN-60H-15B suitable for dimmable accent lighting in a 15V system?
It can be suitable when the fixture is designed for constant-current operation from 9-15V and draws 4A. The available output power is 60W, so the total lighting load needs to remain within that rating. It is intended for matched constant-current lighting products, not generic constant-voltage loads.
How do I estimate LED strip length for the HLN-60H-15B?
Use the driver's power limit: 60W divided by the strip's rated watts per meter equals the estimated maximum length. That estimate applies only if the strip is a 15V constant-current product within the 9-15V range at 4A. Check your strip rated power per meter before sizing.
Can this driver be used outdoors for sign or lighting projects?
It is intended for conditions where IP64 protection is appropriate, and it operates from -40°C to +50°C. That supports dusty areas and splashing water exposure, but not submersion. Use it where the environment matches an IP64-rated driver.
How does the HLN-60H-15B compare with the HLN-60H-15A and related HLN models?
The HLN-60H-15B and HLN-60H-15A share the same 60W, 15V, 4A electrical rating. Other listed 60H outputs are 20V 3A, 24V 2.5A, 30V 2A, 36V 1.7A, 42V 1.45A, 48V 1.3A, and 54V 1.15A. The broader family shown here also includes 40H models from 12V 3.33A to 54V 0.75A and 80H models from 12V 5A to 54V 1.5A.
