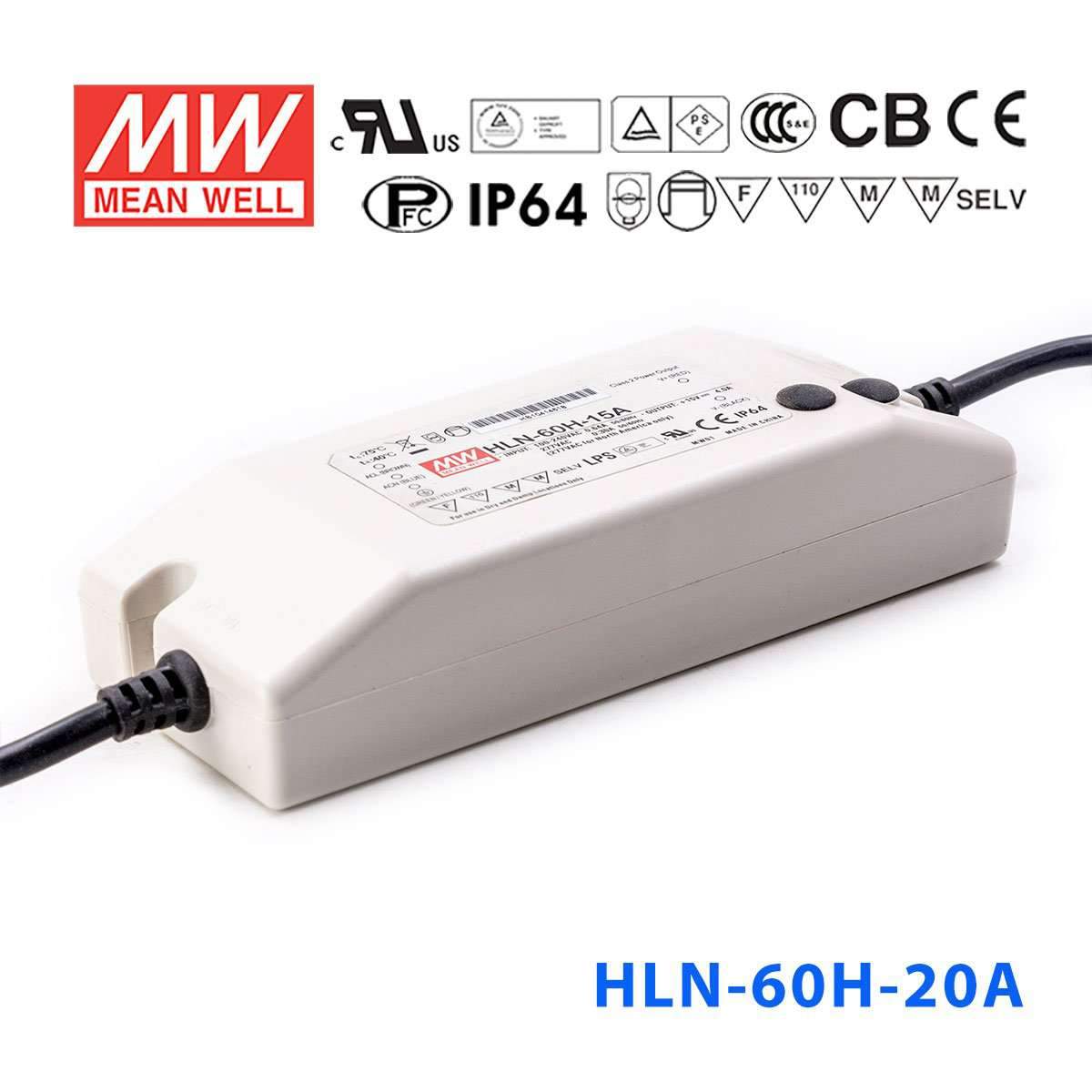

Mean Well HLN-60H-20A Power Supply 60W 20V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-20A Power Supply 60W 20V - IP64, Adjustable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage20 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-20A for 20V LED signage modules?
Yes, if the sign uses a constant-current LED load that operates within the 12-20V range at 3A. This driver is rated 60W at 20V and is listed as suitable for signage applications. It should only be used with loads that match its constant-current output.
Is the HLN-60H-20A suitable for 20V linear or accent lighting?
It can be suitable for linear or accent lighting when the fixture is specified for constant-current operation from 12-20V at 3A. The maximum output power is 60W, so the fixture load needs to stay within that rating. Verify the fixture's driver requirement before selecting it.
Can this model power a 20V LED strip run?
Only if the strip is a constant-current 20V product that fits the 12-20V CC range at 3A. To estimate maximum strip length, divide 60W by the strip's rated watts per meter. Check your strip rated power per meter before sizing.
Is the HLN-60H-20A appropriate for outdoor lighting or sign projects?
It is intended for environments where IP64 protection is suitable, and it operates from -40°C to +50°C. IP64 supports dust protection and resistance to splashing water, but not full immersion. Use it where those site conditions match the product rating.
Can I use this driver for display lighting with a moderate power load?
Yes, if the display lighting is a constant-current load requiring 3A within 12-20V and staying under 60W. That makes it a fit for matched 20V lighting products where a protected IP64 driver is needed. It is not the right choice for loads that require a different current or a constant-voltage supply.
