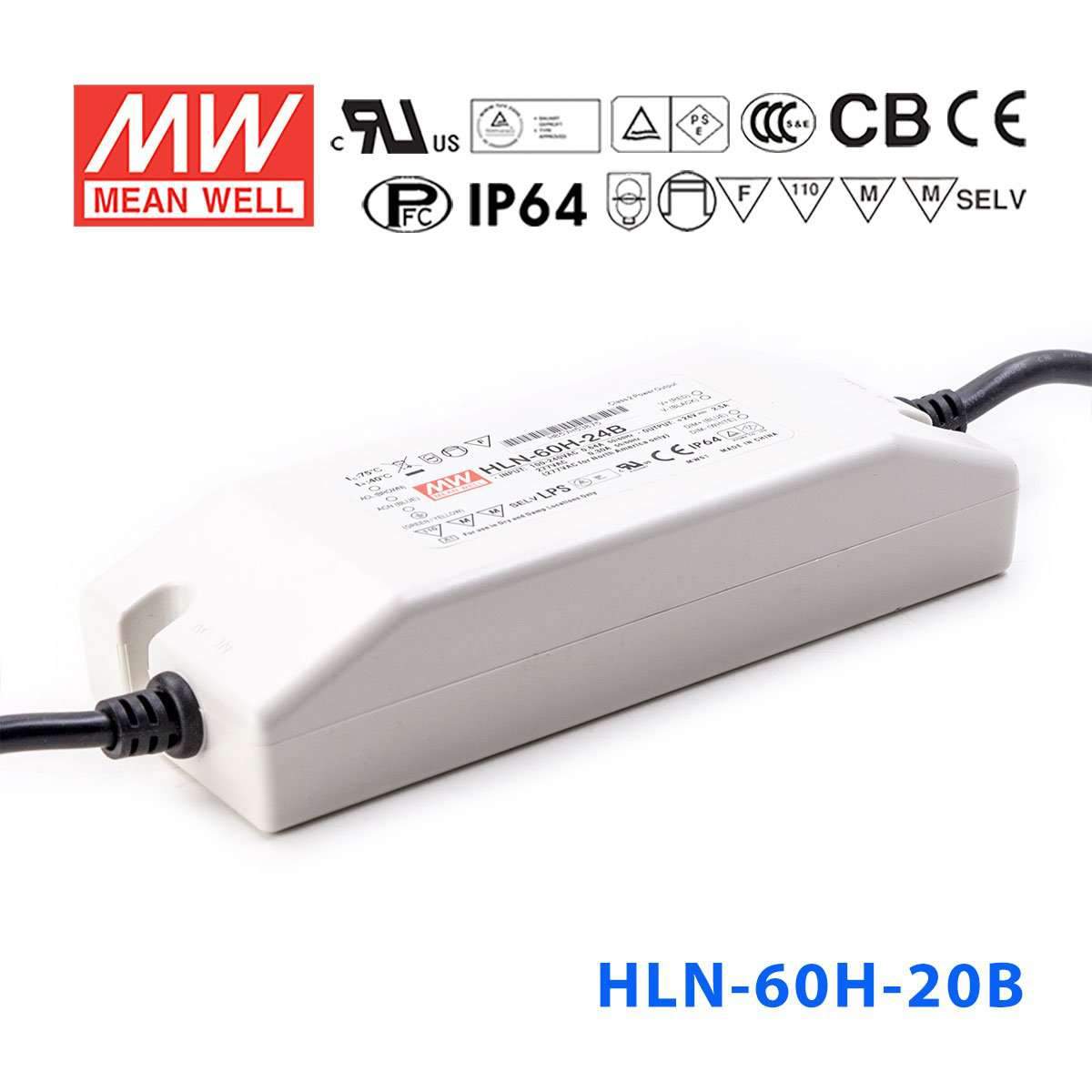

Mean Well HLN-60H-20B Power Supply 60W 20V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-20B Power Supply 60W 20V - IP64, Dimmable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage20 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-20B for LED signage lighting?
Yes, this model is specifically noted as suitable for signage applications. It provides constant current output up to 3A with a 12-20V constant-current range and 60W maximum power, which fits LED signage loads designed for those electrical limits.
Is the HLN-60H-20B suitable for a 20V LED lighting load?
It is a fit for constant-current LED lighting products that operate at 20V and draw up to 3A, with a 60W maximum output. It should only be used with lighting loads that stay within the stated 12-20V CC range.
Can this driver run LED strip lighting?
It can be used for LED strip lighting only if the strip is designed for constant-current operation within 12-20V and up to 3A. For strip or linear lighting, the key checks are the driver's 60W limit and the strip's own rated power per meter.
How much LED strip can the HLN-60H-20B support?
Use the driver's 60W maximum power to estimate total strip length: maximum length = 60W divided by your strip's rated watts per meter. Because this unit is 20V constant current at 3A, also check that your strip is designed for constant-current operation within the 12-20V range.
Can the HLN-60H-20B be used outdoors or in damp locations?
Its IP64 rating makes it suitable for locations where dust protection and splash resistance matter, including many outdoor or damp lighting applications. The operating temperature range is -40°C to +50°C, but IP64 is not a submersion rating.
