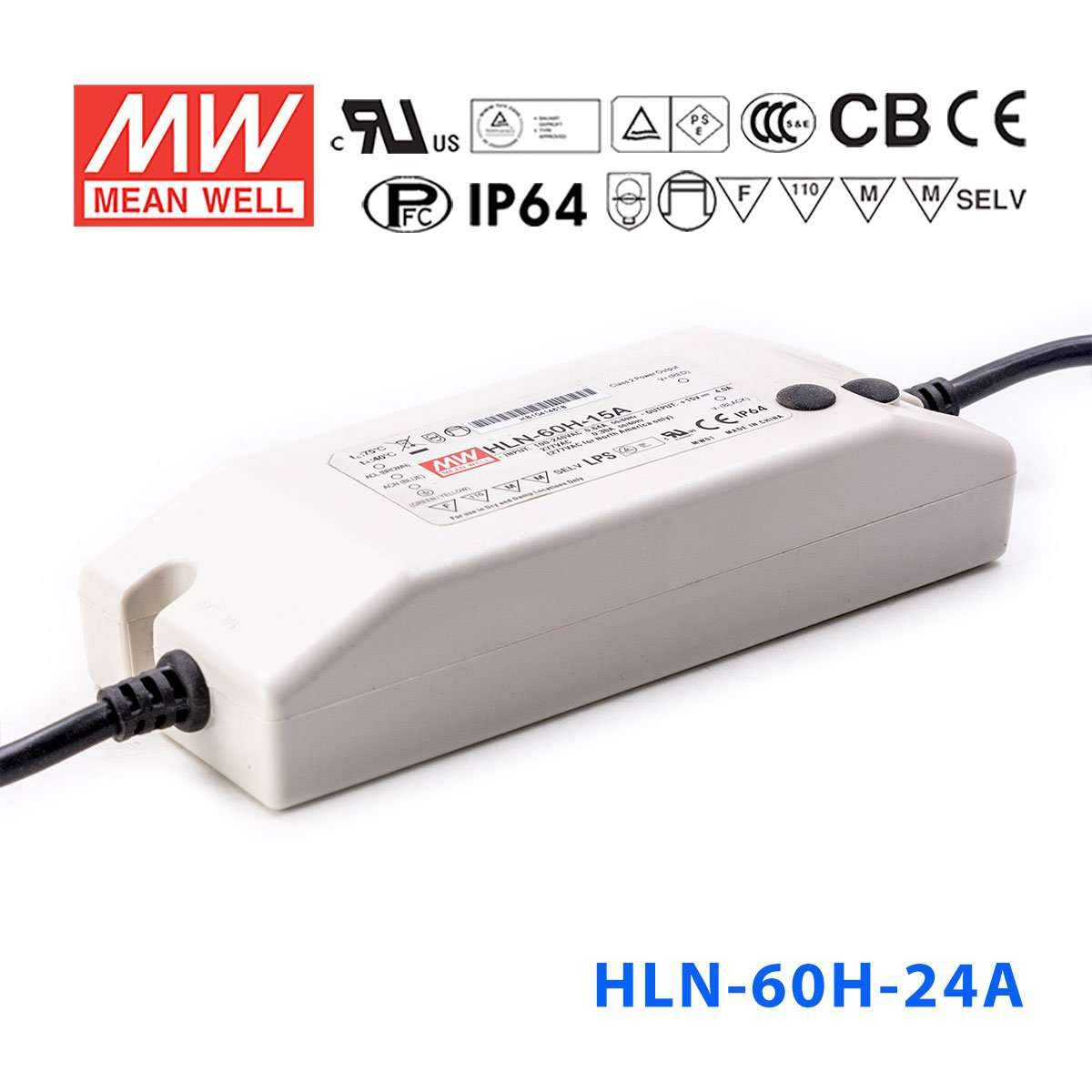

Mean Well HLN-60H-24A Power Supply 60W 24V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-24A Power Supply 60W 24V - IP64, Adjustable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-24A for outdoor sign lighting?
Yes, it is suitable for signage applications and has an IP64 enclosure for splash-resistant use. Electrically, it provides 24V output at 2.5A with 60W maximum power and a 14-24V constant-current range, so the sign lighting load needs to match those values.
Is the HLN-60H-24A a good match for 24V architectural lighting?
It can be a match for constant-current architectural lighting products rated for 24V, up to 2.5A, and up to 60W. The load also needs to stay within the stated 14-24V CC operating range.
Can this model power 24V LED strip runs for display lighting?
It can work for LED strip runs only when the strip is built for constant-current operation and matches the driver's 24V, 2.5A, and 60W limits. For display lighting, verify both the strip's rated power per meter and that its operating range fits 14-24V.
What LED strip length can I estimate from the HLN-60H-24A?
Estimate the maximum strip length with this formula: 60W divided by the strip's rated watts per meter. That gives the power-based length limit, and you should also check your strip rated power per meter and confirm it is a constant-current strip compatible with 24V output and the 14-24V range.
Is the HLN-60H-24A suitable for wet or exposed environments?
The IP64 rating means it is built for dust protection and resistance to splashing water, which suits many exposed lighting locations. Its operating temperature range is -40°C to +50°C, but IP64 does not indicate suitability for submersion.
