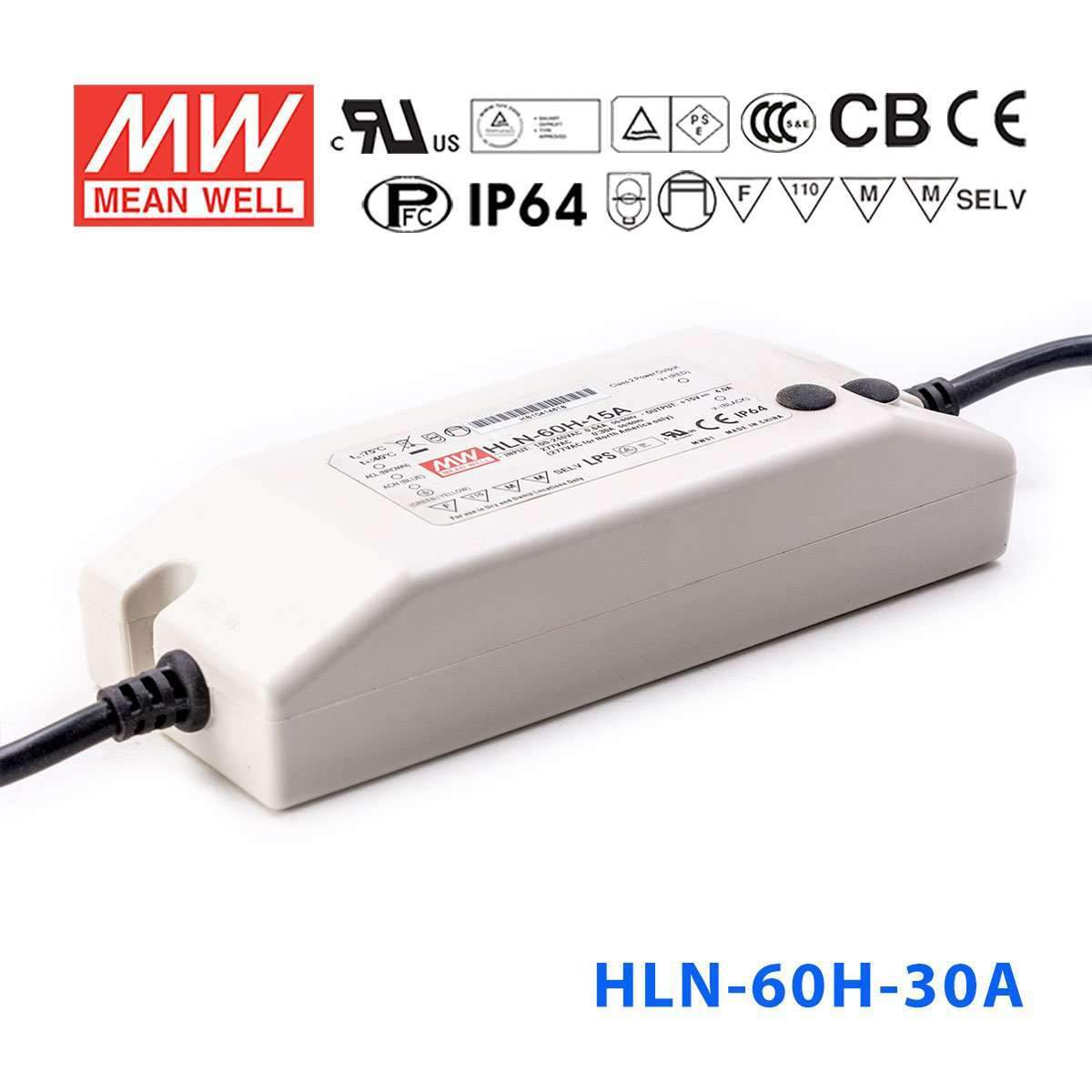

Mean Well HLN-60H-30A Power Supply 60W 30V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-30A Power Supply 60W 30V - IP64, Adjustable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-30A for 30V LED signage or illuminated graphics?
Yes, it can be used for LED signage loads that are designed for constant-current operation at 30V. The driver delivers up to 2A with 60W maximum power, and the load needs to stay within the 18-30V constant-current range.
Is the HLN-60H-30A suitable for linear lighting or accent lighting?
It can be suitable for linear or accent lighting when the LED load is a constant-current product matched to 30V output and up to 2A. The electrical limit is 60W maximum, with a stated CC range of 18-30V.
Can this model power a 30V LED strip application?
It can power a strip application only if the strip is made for constant-current operation and is compatible with 30V output. Check that the strip stays within 2A, 60W, and the 18-30V operating range before using this driver.
What is the maximum LED strip length for the HLN-60H-30A?
The power-based estimate is maximum length = 60W divided by your strip's rated watts per meter. Check your strip rated power per meter, and confirm the strip is intended for constant-current use within the 18-30V range at up to 2A.
Is the HLN-60H-30A okay for outdoor lighting conditions?
The IP64 housing is appropriate for dust protection and splashing-water exposure, so it fits many outdoor lighting conditions. The unit is also rated for -40°C to +50°C operation, but IP64 does not mean it can be submerged.
