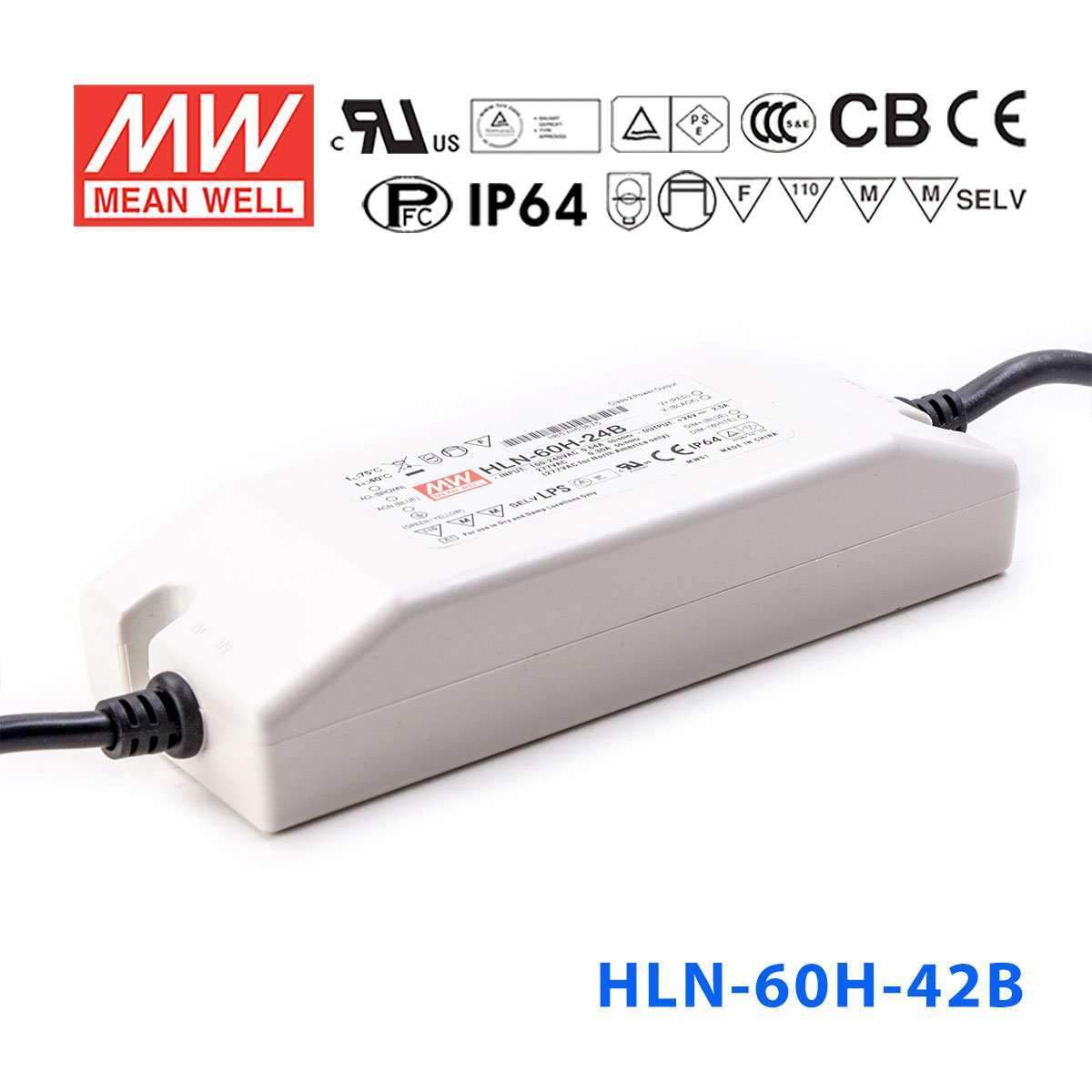

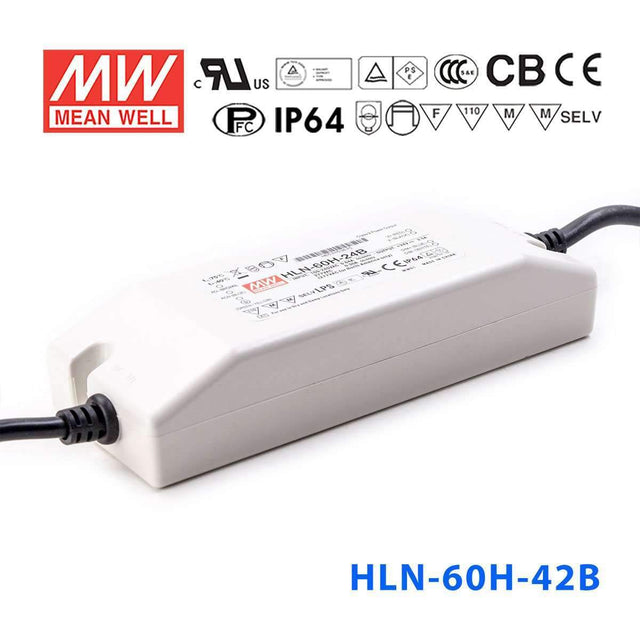

Mean Well HLN-60H-42B Power Supply 60W 42V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-42B Power Supply 60W 42V - IP64, Dimmable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60.9 Watt
-
Output Voltage42 Volt
-
Rated Current1.45 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-42B for 42V LED sign lighting?
Yes, it is specified as suitable for signage applications and provides 42V constant current output. The unit is rated for 60.9W maximum output and 1.45A, with a 25-42V constant current range.
Is this driver suitable for 42V accent or perimeter lighting in exterior-facing fixtures?
It can be used where the fixture requires a 42V constant current driver and the environment matches an IP64-rated enclosure. The operating temperature range is -40°C to +50°C.
Can this power a 42V LED strip for commercial display lighting?
It can if the strip is compatible with a constant current 42V driver. The driver provides up to 60.9W at 1.45A, so the load needs to stay within the 25-42V constant current range.
How do I calculate the maximum 42V LED strip length for the HLN-60H-42B?
Start with the driver's 60.9W maximum output and divide by the strip's watts per meter. The formula is 60.9W / strip W/m = maximum meters; check your strip rated power per meter and verify compatibility with 42V constant current output.
Is the HLN-60H-42B suitable for wet or outdoor locations?
Its IP64 rating means protection against dust and splashing water, so it is suited to locations with incidental moisture rather than immersion. Use it only where IP64 matches the site's exposure level.
