Mean Well HLN-60H-48A Power Supply 60W 48V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours

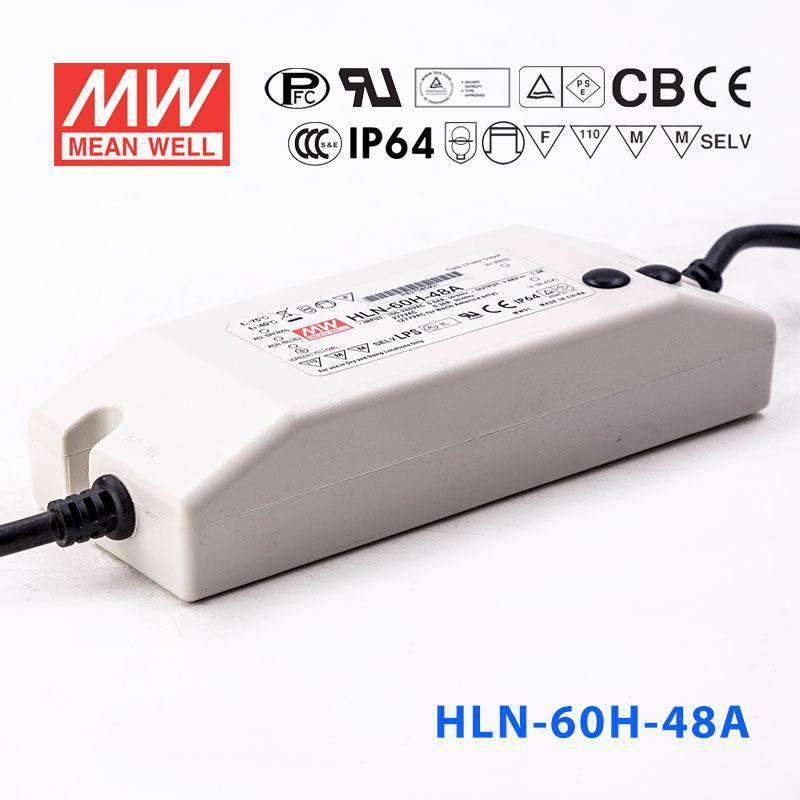

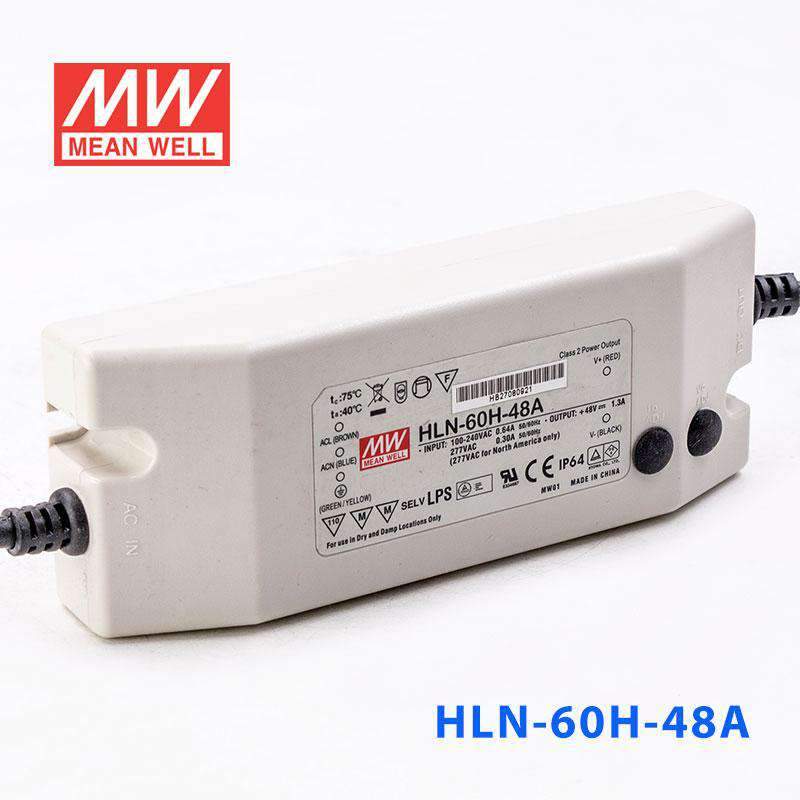

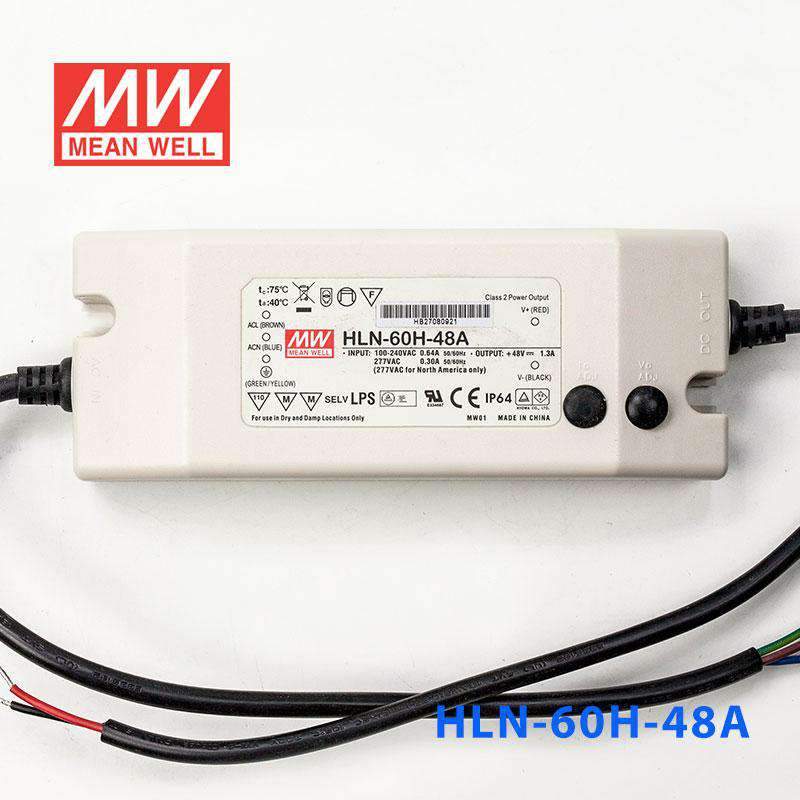

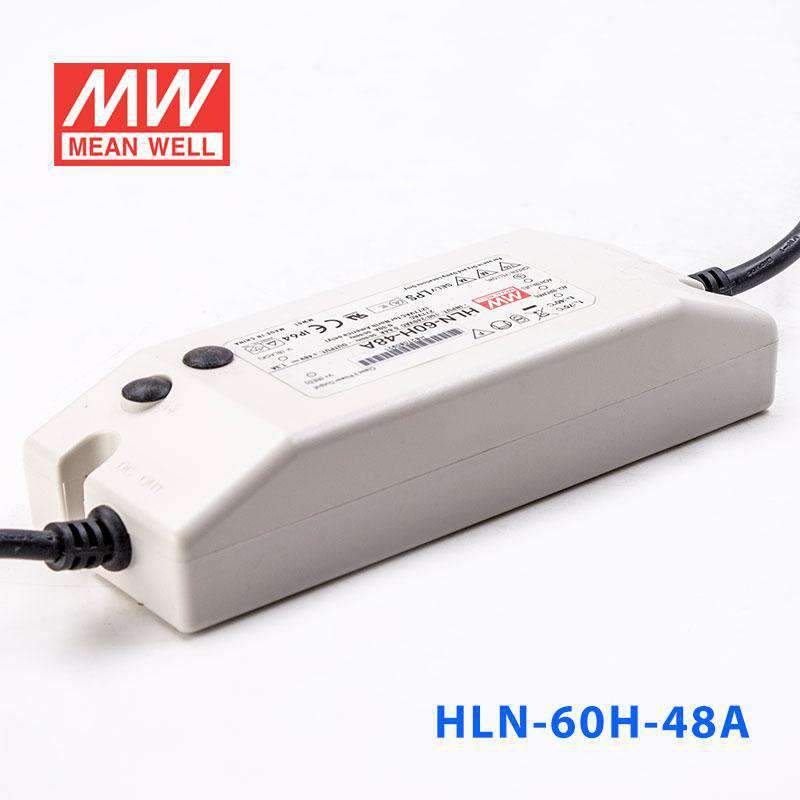

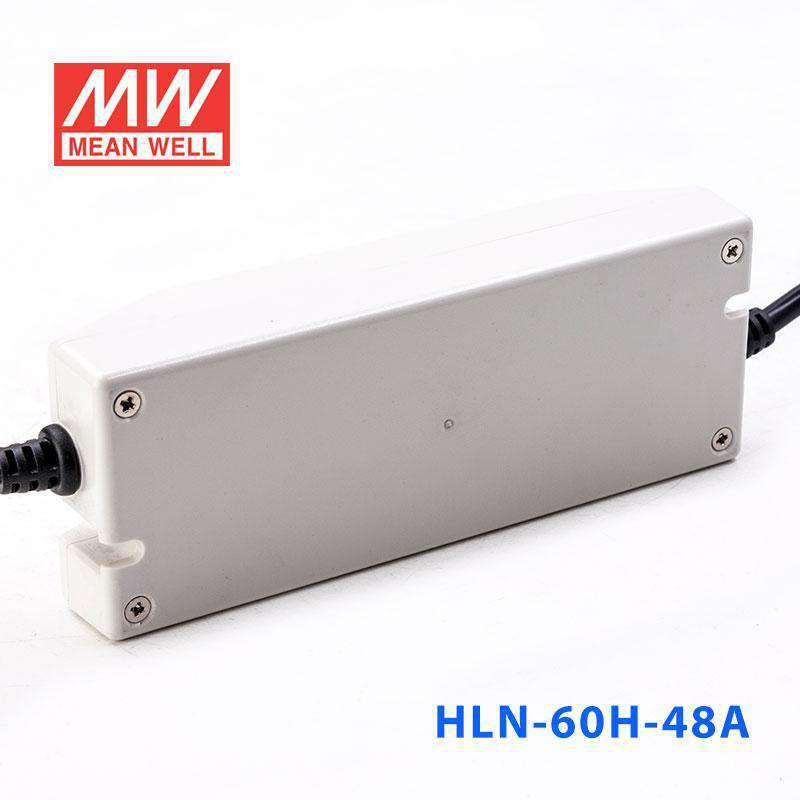

Mean Well HLN-60H-48A Power Supply 60W 48V - IP64, Adjustable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating62.4 Watt
-
Output Voltage48 Volt
-
Rated Current1.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-48A for 48V LED signage applications?
Yes, this model is specified as suitable for signage applications and provides 48V output in constant current mode. It is rated for up to 62.4W and 1.3A, with a constant current range of 28-48V.
Is this driver appropriate for 48V linear lighting or display lighting systems?
It can be used with 48V lighting loads that are designed for constant current operation. The connected load needs to stay within the 28-48V range and within the driver's 62.4W maximum output.
Can the HLN-60H-48A run a 48V LED strip in a splash-prone location?
It can if the 48V strip is compatible with a constant current driver and the environment suits an IP64 enclosure. IP64 means resistance to dust and splashing water, and the driver is rated for -40°C to +50°C operation.
How much 48V LED strip can this driver support?
The driver can deliver up to 62.4W. To estimate maximum length, divide 62.4W by the strip's rated watts per meter; check your strip rated power per meter and confirm the strip is designed for 48V constant current use.
What is the difference between the HLN-60H-48A and nearby HLN series models?
The matching 48V sibling is HLN-60H-48B, which has the same 62.4W, 48V, 1.3A, and IP64 ratings. Nearby 60H models also include 36V at 61.2W and 1.7A, 42V at 60.9W and 1.45A, and 54V at 62.1W and 1.15A.
