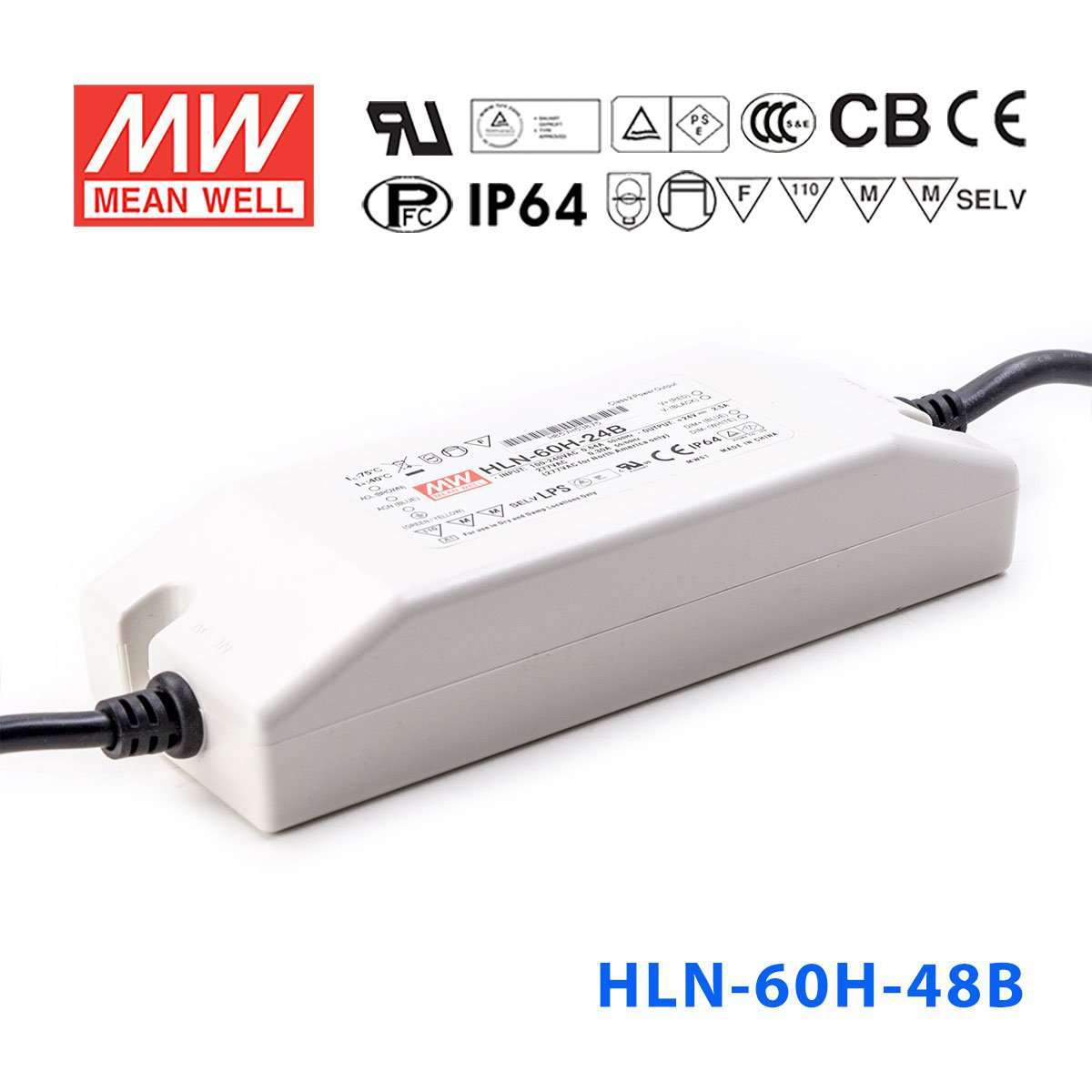

Mean Well HLN-60H-48B Power Supply 60W 48V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-48B Power Supply 60W 48V - IP64, Dimmable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating62.4 Watt
-
Output Voltage48 Volt
-
Rated Current1.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-48B for 48V LED signage lighting?
It can fit 48V signage lighting that needs a constant current driver and stays within the driver's 62.4W, 1.3A, and 28-48V constant-current range. The IP64 housing also matches signage use where dust and splashing water are concerns.
Is the HLN-60H-48B suitable for 48V linear lighting fixtures in damp areas?
Yes, if the fixture is designed for constant current operation and its electrical requirement falls within 28-48V at up to 1.3A. With an IP64 case and an operating range of -40°C to +50°C, it is suited to lighting applications exposed to dust or water spray rather than fully submerged conditions.
Can this driver power a 48V architectural lighting run?
It can work for a 48V architectural lighting run when the load stays at or below 62.4W and matches the 28-48V constant-current range. This model is a Class 2 power unit, which is often preferred where a lower-power remote driver is needed.
How much 48V LED strip can the HLN-60H-48B support?
Use the driver's 62.4W maximum to estimate length: max strip length = 62.4W divided by your strip's rated watts per meter. Check your strip rated power per meter first, and confirm the strip is actually compatible with a 48V constant-current driver rather than a constant-voltage supply.
Is the HLN-60H-48B okay for outdoor or wet locations?
Its IP64 rating means it is built to resist dust and splashing water, so it is suitable for outdoor or wet-area use where direct spray or weather exposure is expected. IP64 does not indicate submersion protection, so it is for splash-prone environments rather than underwater use.
