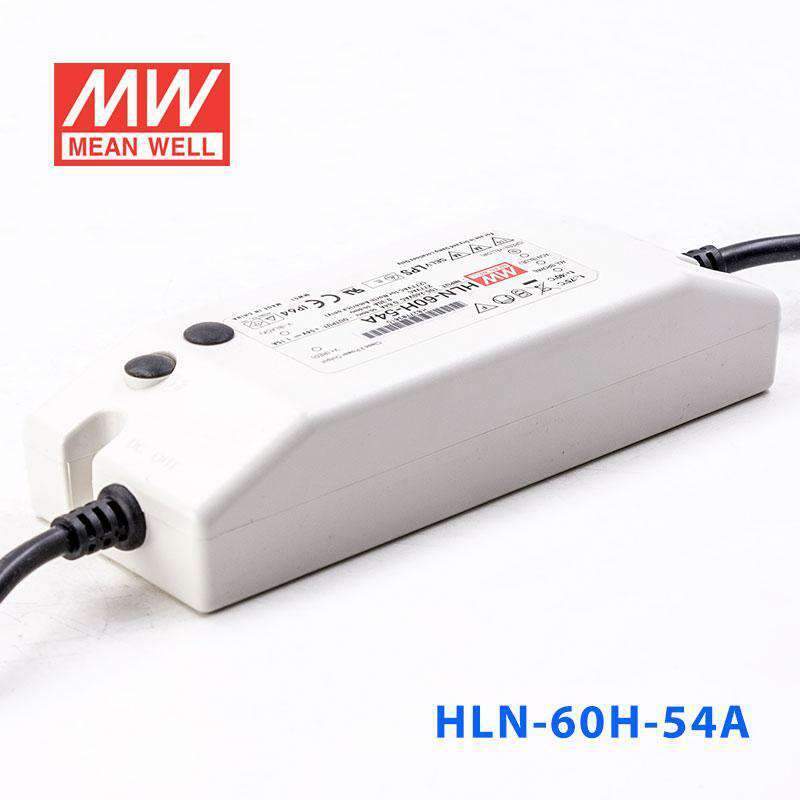

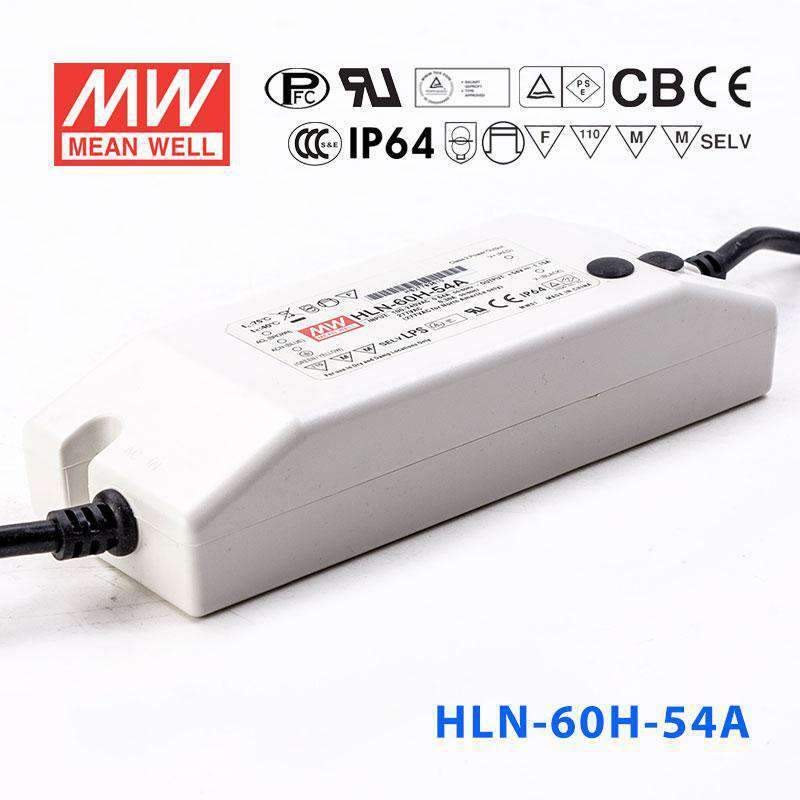

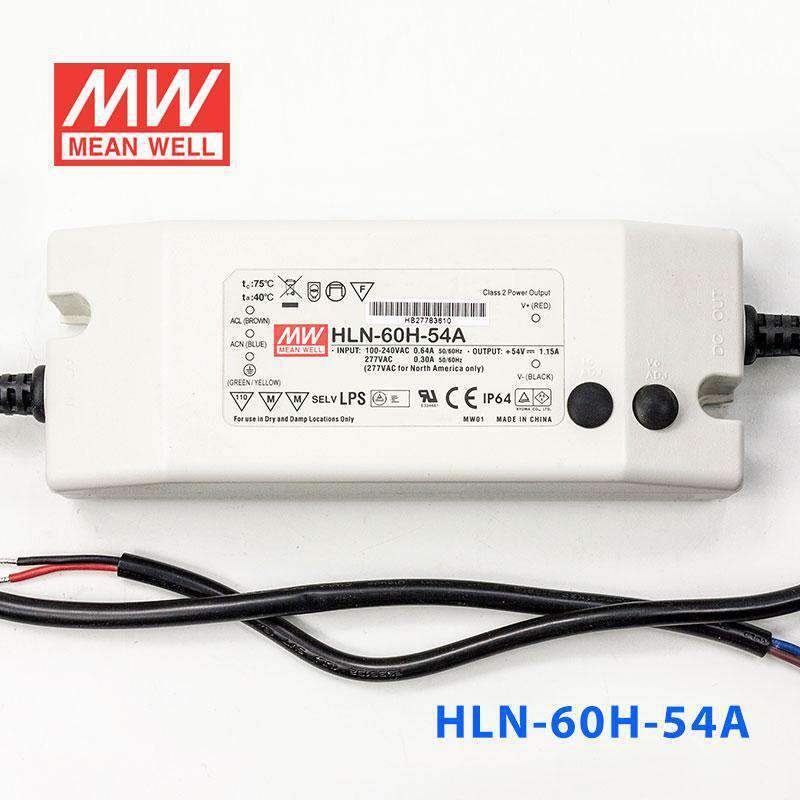

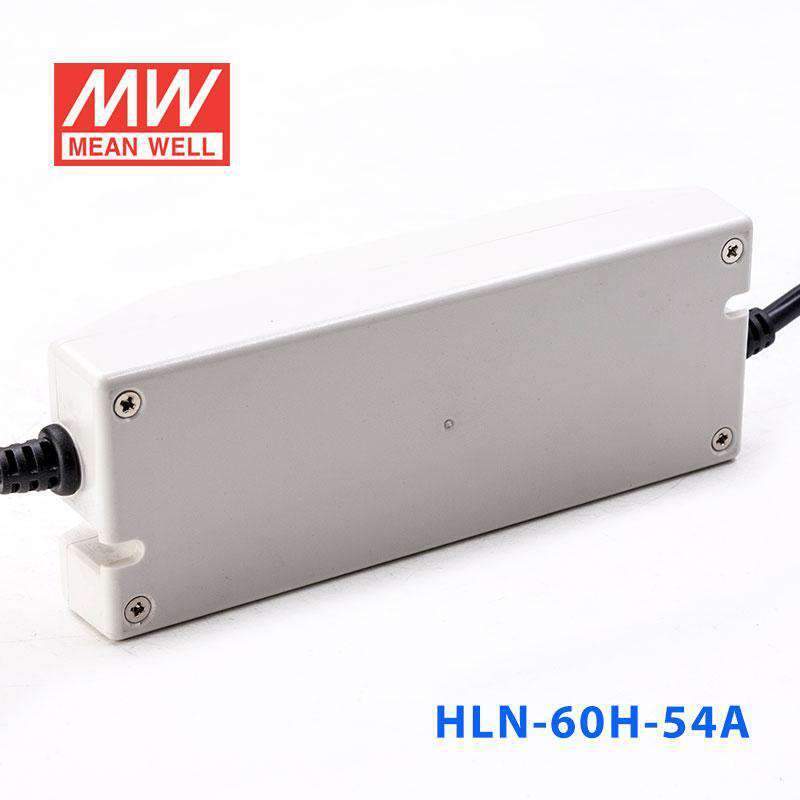

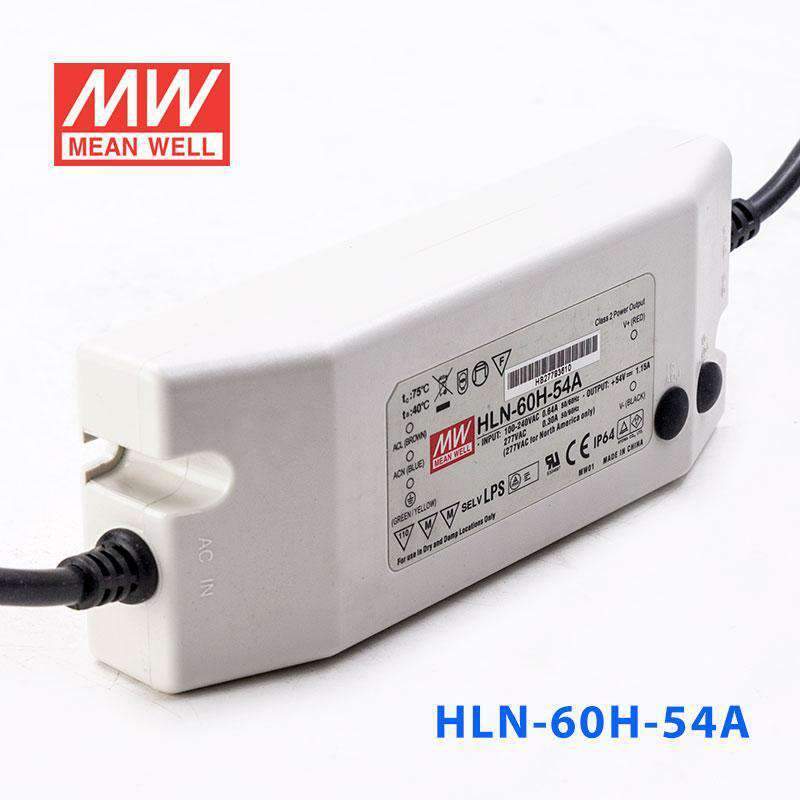

Mean Well HLN-60H-54A Power Supply 60W 54V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-60H-54A Power Supply 60W 54V - IP64, Adjustable
The HLN-60H is a 60W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating62.1 Watt
-
Output Voltage54 Volt
-
Rated Current1.15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the HLN-60H-54A for high-voltage LED signage strings?
Yes, if the signage load is designed for constant current and operates within the 32-54V range at up to 1.15A. Its 62.1W rating and IP64 enclosure make it a practical match for signage applications needing a higher output voltage model.
Is this driver a fit for 54V linear lighting fixtures?
It is intended for constant-current LED loads, so it fits 54V linear lighting fixtures only when their requirement stays inside 32-54V and 1.15A. The adjustable A-version is useful where the fixture spec calls for fine output trimming within that range.
Can the HLN-60H-54A be used for perimeter or facade lighting?
It can be used for facade or perimeter lighting assemblies that are built for constant current operation up to 62.1W. The IP64 rating and -40°C to +50°C operating range support exposed lighting environments with dust, rain splash, and seasonal temperature swings.
How do I estimate maximum LED strip length with the HLN-60H-54A?
Use the power limit as the starting point: max strip length = 62.1W divided by the strip's rated watts per meter. Check your strip rated power per meter, and make sure the strip is compatible with a 54V constant-current driver because this is not a generic constant-voltage supply.
How does the HLN-60H-54A compare with other HLN series outputs?
Within the HLN family, 40H models cover 12V 3.33A, 15V 2.67A, 20V 2A, 24V 1.67A, 30V 1.34A, 36V 1.12A, 42V 0.96A, 48V 0.84A, and 54V 0.75A in A and B versions. The 60H range covers 15V 4A, 20V 3A, 24V 2.5A, 30V 2A, 36V 1.7A, 42V 1.45A, 48V 1.3A, and 54V 1.15A, while the 80H range covers 12V 5A, 15V 5A, 20V 4A, 24V 3.4A, 30V 2.7A, 36V 2.3A, 42V 1.95A, 48V 1.7A, and 54V 1.5A. The HLN-60H-54A sits in the 60H 54V position at 62.1W and 1.15A.
