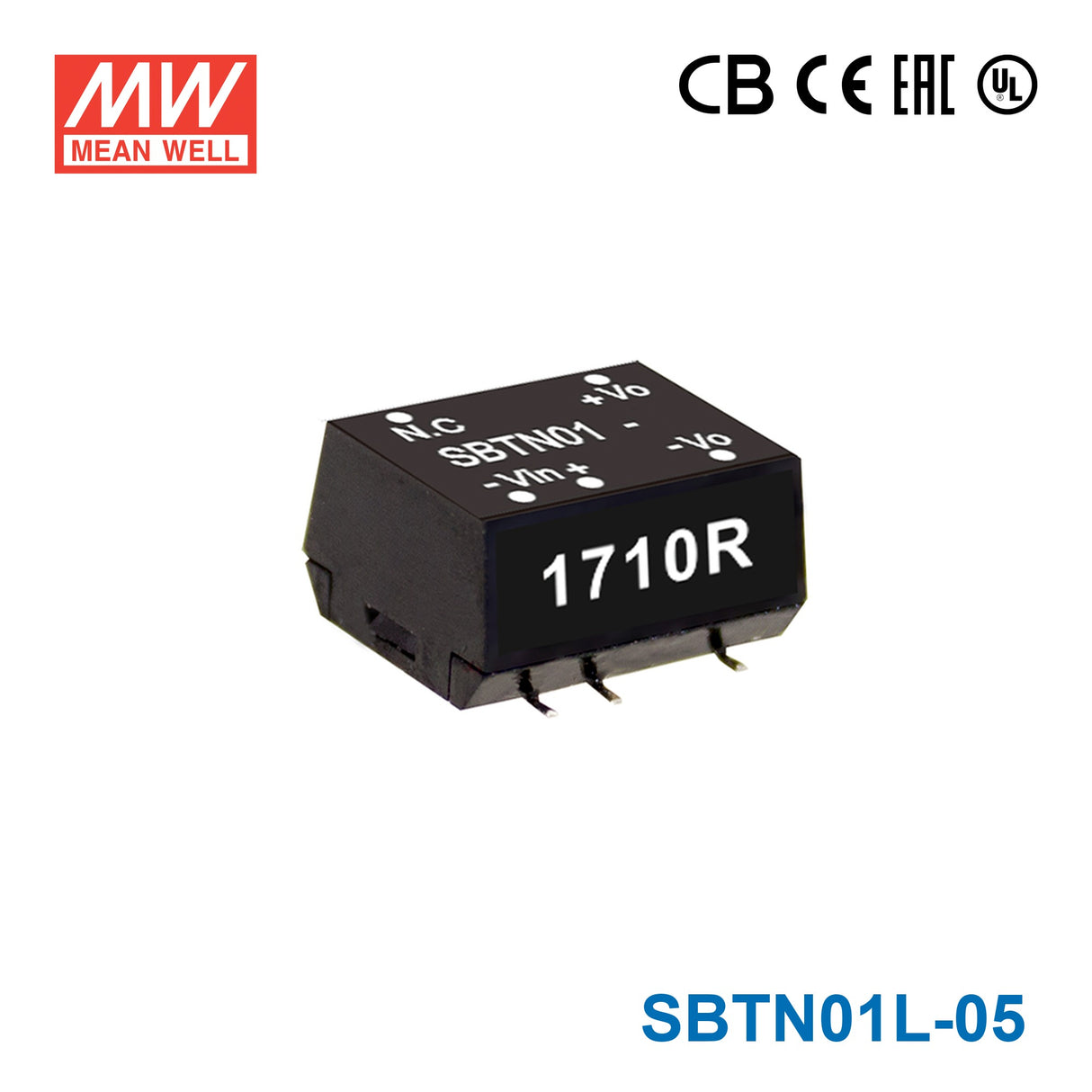

Mean Well SBTN01L-05 DC-DC Converter - 1W 5V DC in 5V out
The SBTN01L is a 1W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL62368-1(Except for 9V output models), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
::specification::
Frequently Asked Questions
Can I use the SBTN01L-05 for a low-power embedded 5V rail inside a compact device?
Yes, if the load fits within its 1W output rating and 0.2A output current. It is a constant-voltage 5V output converter in a 12.9 × 10.9 × 7.1 mm package, which suits very small embedded circuits with modest power demand.
Is the SBTN01L-05 suitable for industrial sensor or interface modules with light 5V loads?
It can work for low-power industrial or embedded electronics that need a regulated 5V output and stay within 1W. With 0.2A available at 5V, it is intended for light auxiliary loads rather than higher-current control hardware.
Can the SBTN01L-05 be used in densely packed electronics where converter size matters?
Yes. Its dimensions are 12.9 × 10.9 × 7.1 mm and its weight is 0.0011 kg, so it is built for very compact layouts. That makes it practical for miniature embedded boards or space-limited electronics.
What kind of input source matches the SBTN01L-05?
The specified input range is 4-5VAC. It should therefore be selected for designs that provide an input within that 4-5VAC range and need a 5V constant-voltage output at up to 0.2A.
Can the SBTN01L-05 handle wide temperature swings in industrial equipment?
The operating temperature range is -40°C to +90°C. That is a broad range for small electronics and supports use in equipment exposed to very low or very high operating temperatures, as long as the rest of the design is built for the same conditions.
How does the SBTN01L-05 compare with the other SBTN01L models?
All listed SBTN01L models are rated at 1W, but the outputs differ: SBTN01L-05 is 5V at 0.2A, SBTN01L-09 is 9V at 0.11A, SBTN01L-12 is 12V at 0.08A, and SBTN01L-15 is 15V at 0.07A. The choice within this series comes down to matching the required output voltage and current to the target circuit.
