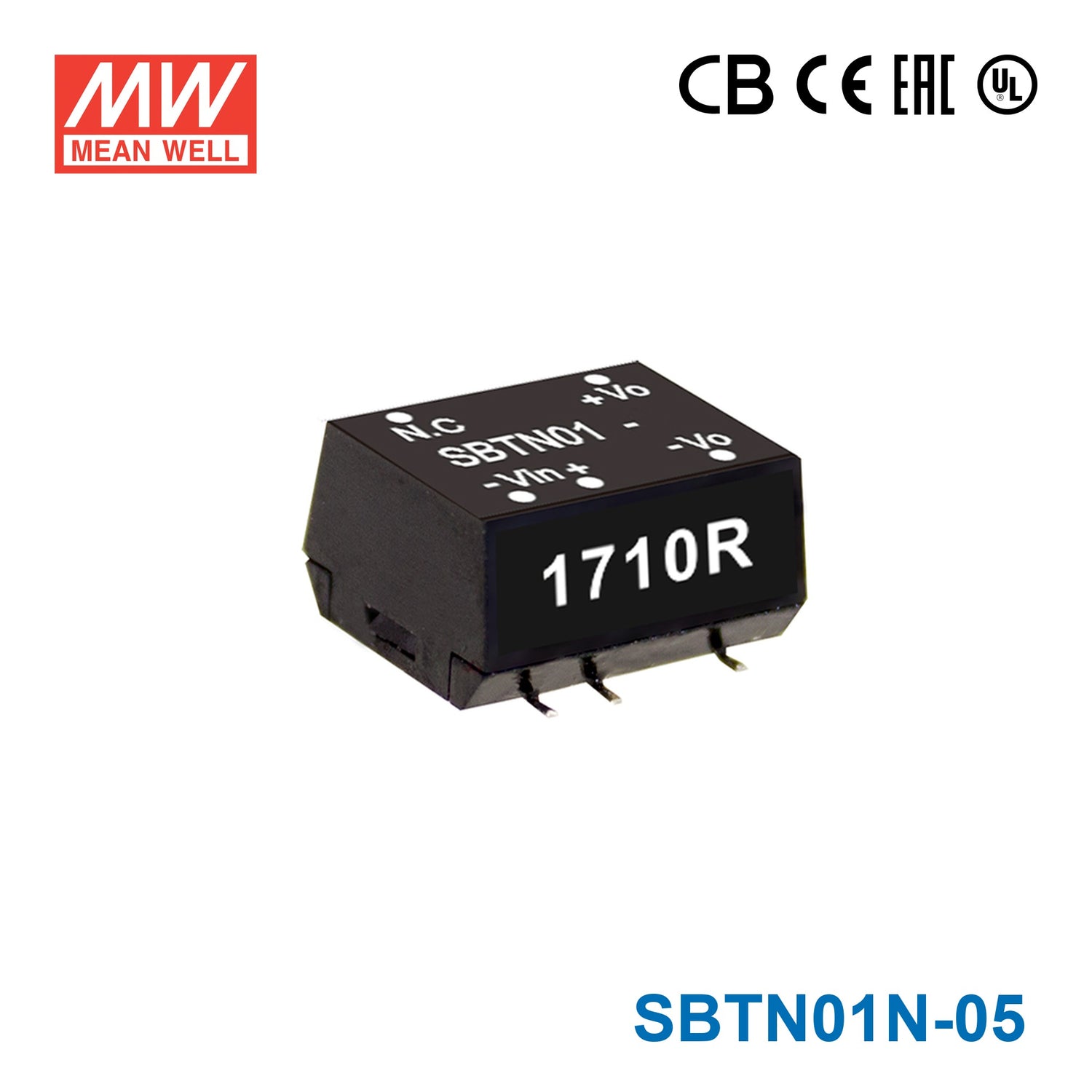

Mean Well SBTN01N-05 DC-DC Converter - 1W 24V DC in 5V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 84% |
| Protections: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max. Optional models (SC-suffix): Continuous |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage24V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SBTN01N-05 to power a small 5V embedded controller from a 24-26VAC system?
Yes, it is intended for low-power 5V loads where the source is within the listed 24-26VAC input range. Output capacity is 1W total with up to 0.2A available at 5V.
Is this a good fit for a low-current 5V sensor or logic rail in industrial equipment?
It can be used for light 5V sensor, logic, or interface circuits that stay at or below 0.2A and 1W. The constant voltage output makes it a fit for electronics that require a regulated 5V rail rather than a constant current source.
Can the SBTN01N-05 be used in compact automation or control assemblies with tight space limits?
Yes, the package is very small at 12.9 x 10.9 x 7.1 mm and the weight is 0.0011 kg. That makes it suitable for compact embedded and control assemblies where a low-power 5V rail is needed.
What is the difference between the SBTN01N-05 and the other SBTN01N output options?
The listed SBTN01N siblings all have 1W power but different output levels. They are 5V at 0.2A for SBTN01N-05, 9V at 0.11A for SBTN01N-09, 12V at 0.08A for SBTN01N-12, and 15V at 0.07A for SBTN01N-15.
Can this converter be used in cold or hot environments, and is it rated for outdoor exposure?
The operating temperature range is -40C to +90C, so the specs support use in both low and high temperature conditions. No IP rating is provided, so the available data does not confirm outdoor suitability.
