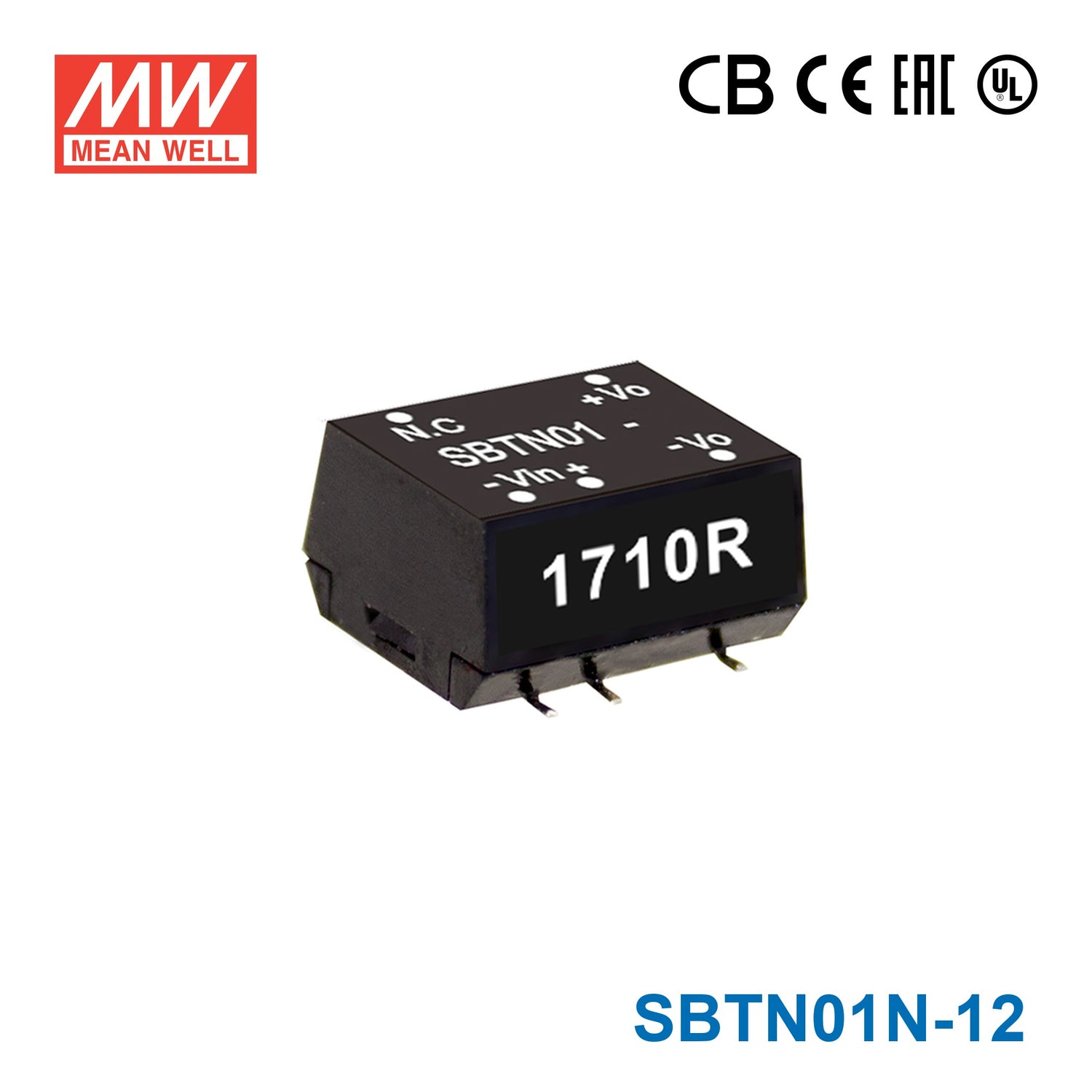

Mean Well SBTN01N-12 DC-DC Converter - 1W 24V DC in 12V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 84% |
| Protections: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max. Optional models (SC-suffix): Continuous |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage24V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SBTN01N-12 for a low-power 12V automation accessory or control circuit?
Yes, if the 12V load stays within the converter's 1W and 0.08A limits. It is a constant voltage model, so it is intended for electronics that need a regulated 12V output.
Is this converter appropriate for a compact 12V embedded board inside industrial equipment?
It is suited to very small 12V embedded or auxiliary boards that draw no more than 0.08A. The housing measures 12.9 x 10.9 x 7.1 mm and weighs 0.0011 kg, which helps in space-constrained designs.
Can the SBTN01N-12 be used for a 12V sensing or low-current instrumentation stage?
It can be used for a 12V sensing, measurement, or instrumentation stage as long as the total demand does not exceed 1W. The specified input range is 24-26VAC, so it should be matched to that source window.
What are the output differences between the SBTN01N-12 and the other SBTN01N versions?
The listed SBTN01N range keeps the same 1W power level while changing output voltage and current. The options shown are 5V at 0.2A, 9V at 0.11A, 12V at 0.08A, and 15V at 0.07A.
How well does the SBTN01N-12 handle temperature extremes, and is it outdoor rated?
Its operating temperature range is specified as -40C to +90C, which supports demanding temperature conditions. There is no IP rating in the provided product specs, so the data does not confirm outdoor use.
