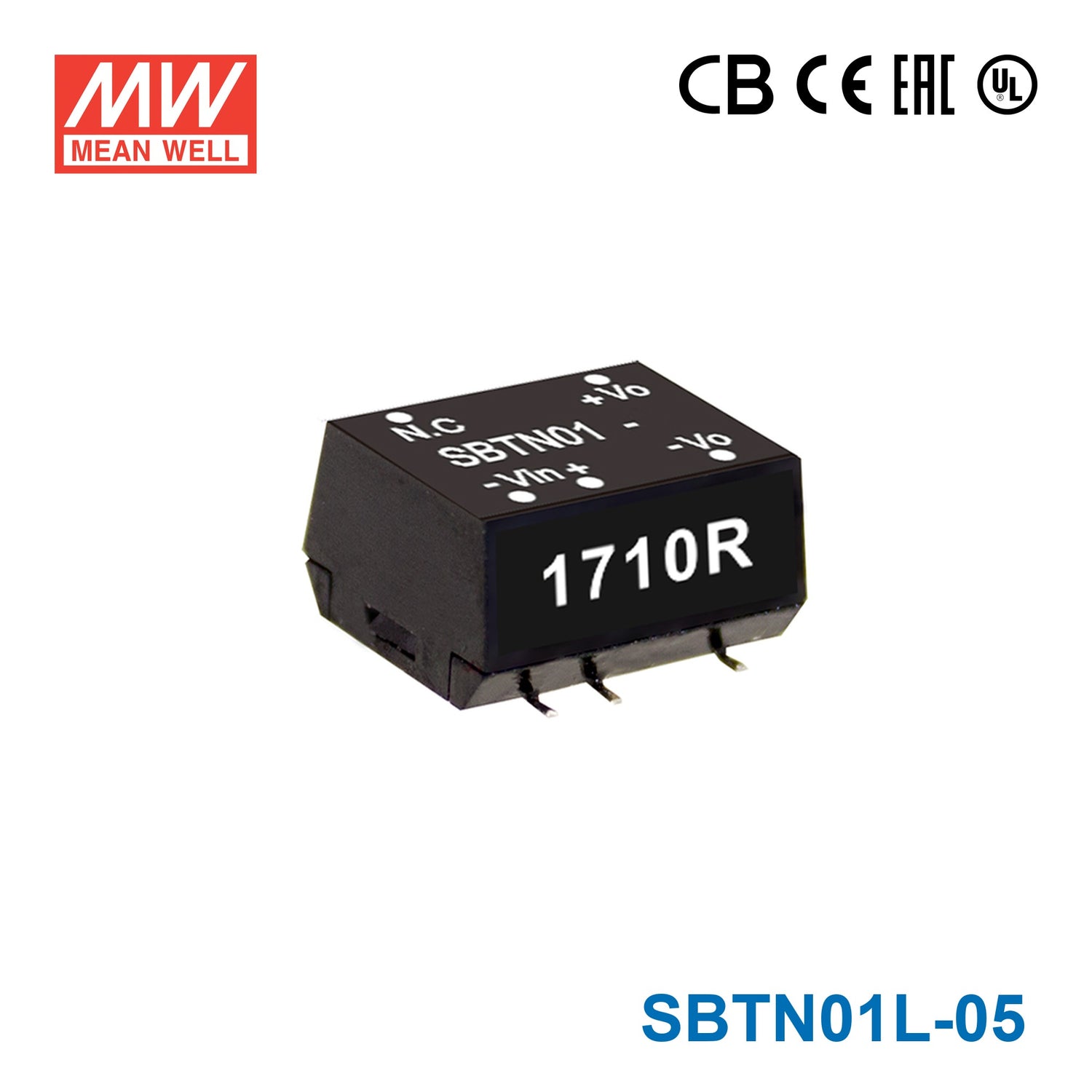

Mean Well SBTN01L-05 DC-DC Converter - 1W 5V DC in 5V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 84% |
| Protections: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max. Optional models (SC-suffix): Continuous |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SBTN01L-05 for a low-power embedded 5V rail inside a compact device?
Yes, if the load fits within its 1W output rating and 0.2A output current. It is a constant-voltage 5V output converter in a 12.9 × 10.9 × 7.1 mm package, which suits very small embedded circuits with modest power demand.
Is the SBTN01L-05 suitable for industrial sensor or interface modules with light 5V loads?
It can work for low-power industrial or embedded electronics that need a regulated 5V output and stay within 1W. With 0.2A available at 5V, it is intended for light auxiliary loads rather than higher-current control hardware.
Can the SBTN01L-05 be used in densely packed electronics where converter size matters?
Yes. Its dimensions are 12.9 × 10.9 × 7.1 mm and its weight is 0.0011 kg, so it is built for very compact layouts. That makes it practical for miniature embedded boards or space-limited electronics.
What kind of input source matches the SBTN01L-05?
The specified input range is 4-5VAC. It should therefore be selected for designs that provide an input within that 4-5VAC range and need a 5V constant-voltage output at up to 0.2A.
Can the SBTN01L-05 handle wide temperature swings in industrial equipment?
The operating temperature range is -40°C to +90°C. That is a broad range for small electronics and supports use in equipment exposed to very low or very high operating temperatures, as long as the rest of the design is built for the same conditions.
How does the SBTN01L-05 compare with the other SBTN01L models?
All listed SBTN01L models are rated at 1W, but the outputs differ: SBTN01L-05 is 5V at 0.2A, SBTN01L-09 is 9V at 0.11A, SBTN01L-12 is 12V at 0.08A, and SBTN01L-15 is 15V at 0.07A. The choice within this series comes down to matching the required output voltage and current to the target circuit.
