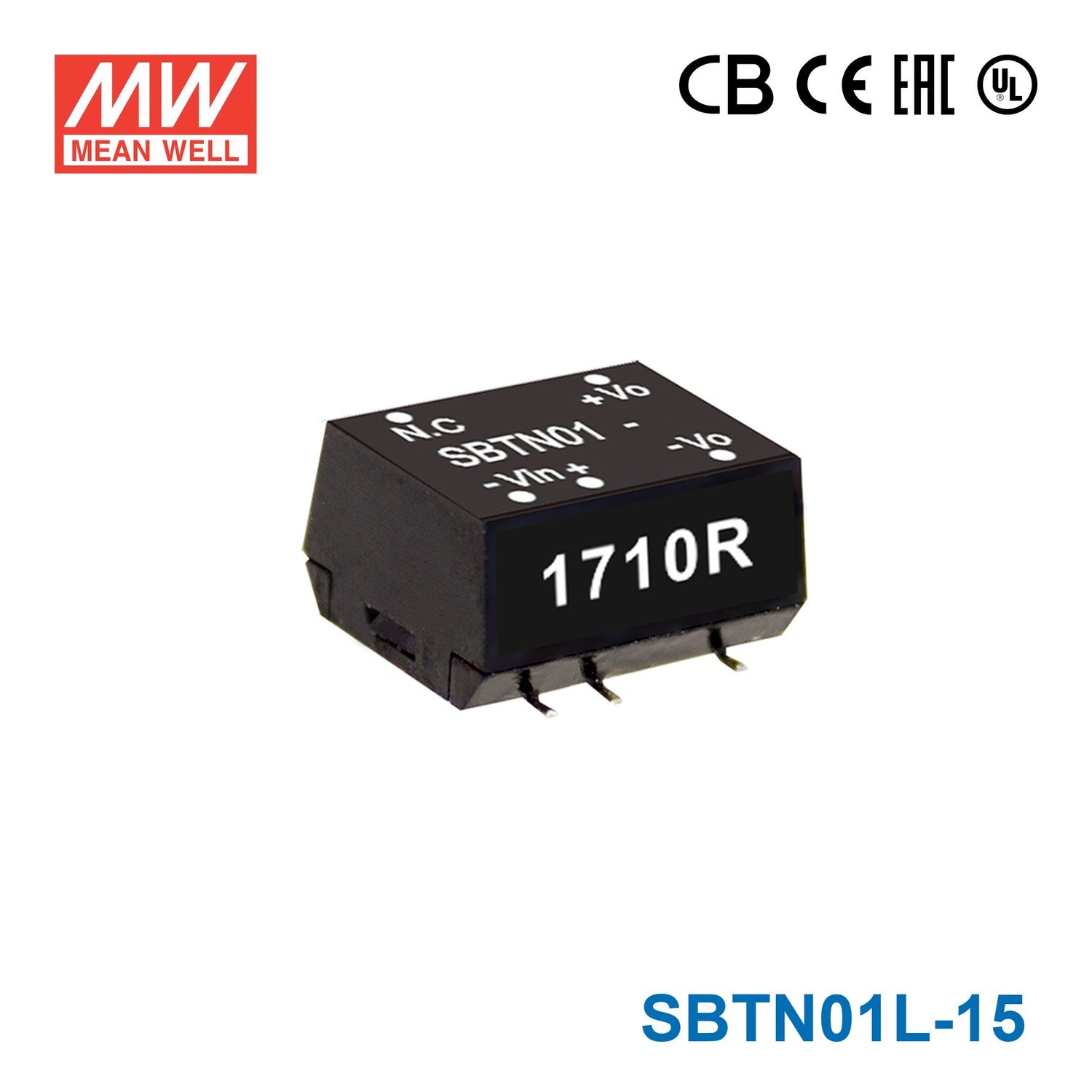

Mean Well SBTN01L-15 DC-DC Converter - 1W 5V DC in 15V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 84% |
| Protections: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max. Optional models (SC-suffix): Continuous |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SBTN01L-15 for a low-power 15V analog stage in industrial or embedded equipment?
Yes, this converter provides a 15V constant-voltage output rated for 0.07A with 1W total power. It is appropriate for low-power analog, signal-conditioning, or control sections that require 15V and remain within that output limit.
Is this model suitable for a compact automation module that needs 15V from a 4-5VAC input?
It is designed for a 4-5VAC input range and produces a 15V constant-voltage output. Because the output is limited to 0.07A and 1W, it fits light-duty automation electronics rather than larger 15V loads.
Can the SBTN01L-15 be used in embedded systems where board space is very limited?
Yes, its dimensions are 12.9 x 10.9 x 7.1 mm and its weight is 0.0011 kg, so it suits very compact embedded designs. The main selection check is whether the load truly needs 15V and no more than 0.07A.
Is this converter better for enclosed equipment than exposed outdoor installations?
Its operating temperature range of -40°C to +90°C supports use in equipment exposed to broad temperature swings. However, no IP rating is listed in the provided specs, so it is better suited to protected enclosures or indoor assemblies than open outdoor exposure.
What is the difference between the SBTN01L-15 and the other SBTN01L models?
All listed SBTN01L versions are rated at 1W, but the output options differ. The sibling models are 5V at 0.2A for the SBTN01L-05, 9V at 0.11A for the SBTN01L-09, and 12V at 0.08A for the SBTN01L-12, while this unit outputs 15V at 0.07A.
