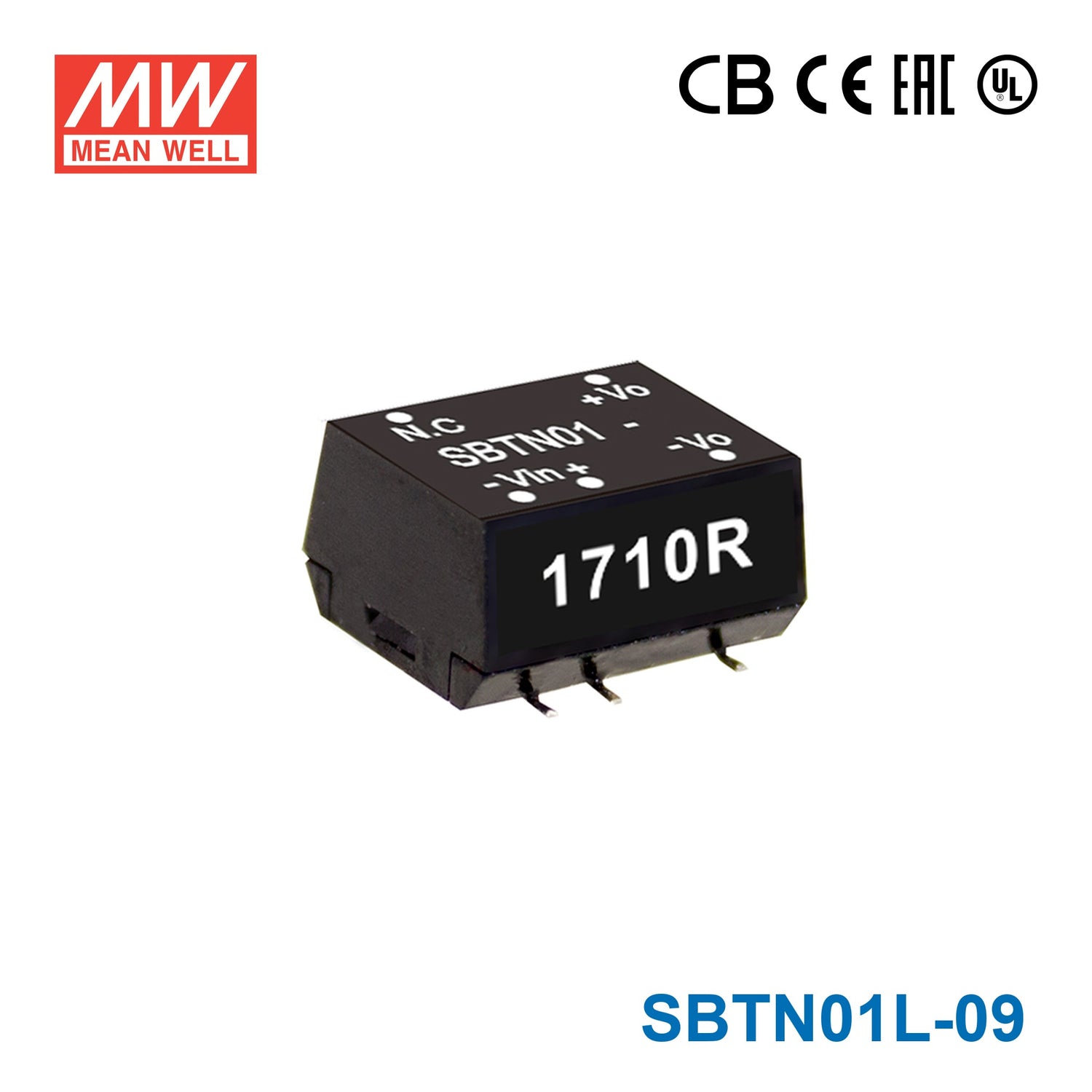

Mean Well SBTN01L-09 DC-DC Converter - 1W 5V DC in 9V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 84% |
| Protections: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max. Optional models (SC-suffix): Continuous |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage9 Volt
-
Rated Current0.11 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SBTN01L-09 for a small embedded circuit that needs a 9V rail?
Yes, if the load stays within its 1W rating and 0.11A output current. It provides a constant-voltage 9V output in a 12.9 × 10.9 × 7.1 mm package, which suits low-power embedded electronics where board space is limited.
Is the SBTN01L-09 appropriate for light industrial interface or monitoring electronics?
It can be used for low-power industrial or embedded circuits that need a 9V output and remain within 1W. With 0.11A available, it is better suited to small interface, monitoring, or auxiliary functions than to heavier loads.
Can the SBTN01L-09 fit in compact electronics with strict size limits?
Yes. The converter measures 12.9 × 10.9 × 7.1 mm and weighs 0.0011 kg, so it is intended for very compact assemblies. That makes it suitable where a small 9V converter is needed without using much board or enclosure space.
What input range should I pair with the SBTN01L-09?
The specified input is 4-5VAC. It should be selected for designs that provide an input within that 4-5VAC window and need a constant-voltage 9V output up to 0.11A.
Can the SBTN01L-09 operate in harsh temperature conditions?
Its operating temperature range is -40°C to +90°C. That wide range supports use in equipment exposed to significant temperature variation, provided the rest of the system is rated for the same environment.
How does the SBTN01L-09 differ from the other SBTN01L options?
The listed SBTN01L family members all have a 1W rating, but their outputs are different: SBTN01L-05 is 5V at 0.2A, SBTN01L-09 is 9V at 0.11A, SBTN01L-12 is 12V at 0.08A, and SBTN01L-15 is 15V at 0.07A. The main difference is the output voltage and its corresponding current within the same 1W class.
