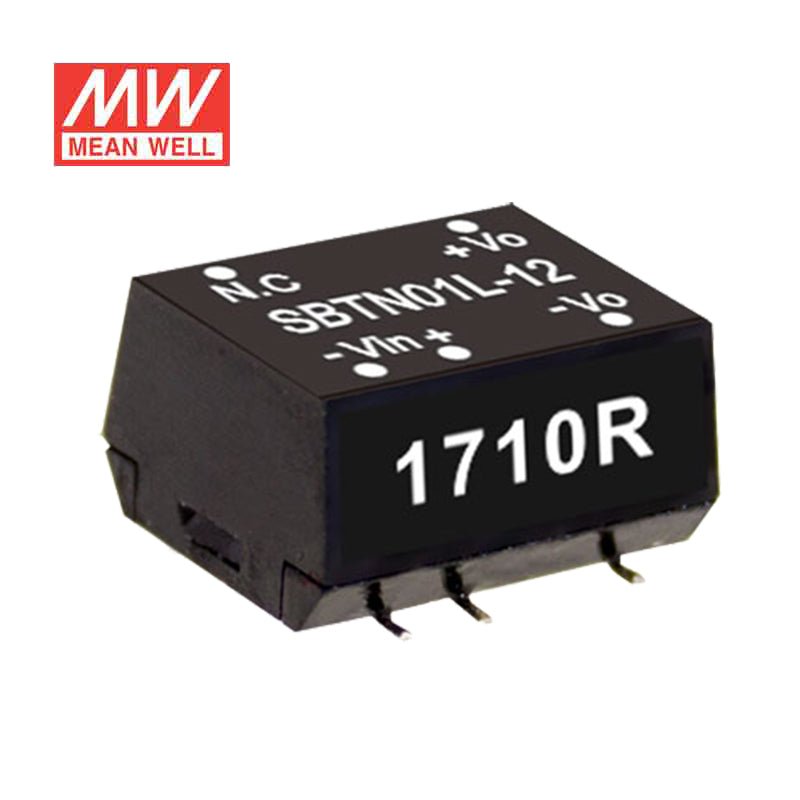

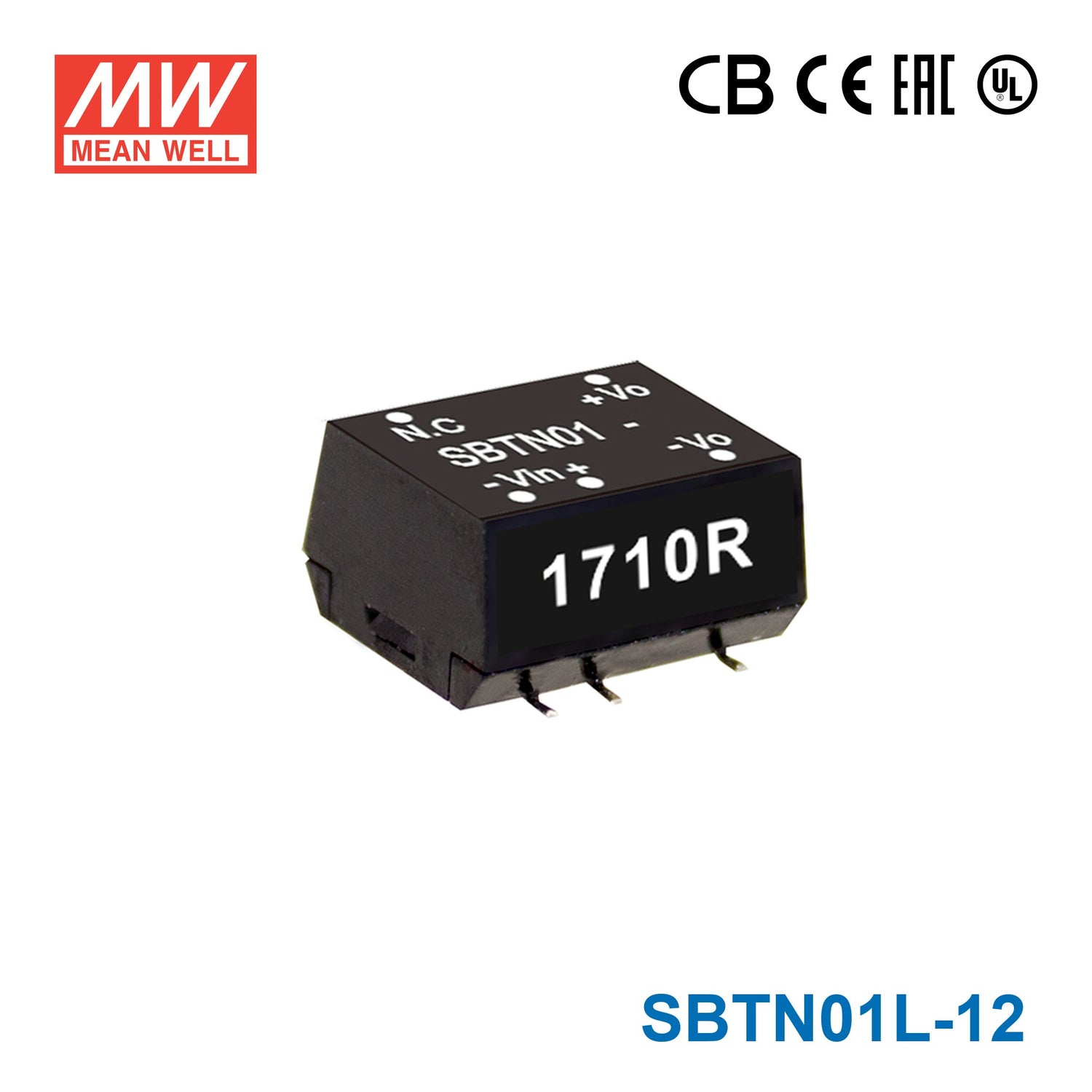

Mean Well SBTN01L-12 DC-DC Converter - 1W 5V DC in 12V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 84% |
| Protections: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max. Optional models (SC-suffix): Continuous |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SBTN01L-12 for a low-power 12V sensor or monitoring module in industrial equipment?
Yes, this model is a constant-voltage DC-DC converter with a 12V output rated for 0.08A and 1W. It fits low-power industrial or automation loads that specifically need 12V and stay within that output limit.
Is this converter a good fit for embedded control boards that need a small 12V rail from a 4-5VAC source?
It can be a fit when the source available to the converter is 4-5VAC and the downstream circuit needs a 12V constant-voltage output. The output capacity is 0.08A at 1W, so it is intended for light embedded loads rather than higher-current subsystems.
Can I use this for a compact automation interface circuit that only needs a small amount of 12V power?
Yes, the small size of 12.9 x 10.9 x 7.1 mm and 0.0011 kg weight make it suited to compact electronics where board space matters. Its 12V constant-voltage output is limited to 0.08A and 1W, so it is best for low-power interface or signal-stage use.
Is the SBTN01L-12 suitable for outdoor or harsh-environment use?
The operating temperature range is -40°C to +90°C, which supports use across a wide temperature span. No IP rating is listed in the provided specs, so it is better matched to protected indoor equipment or enclosed assemblies rather than exposed outdoor locations.
How does the SBTN01L-12 compare with the other SBTN01L output options?
Within the SBTN01L family, all listed models are 1W units. The sibling outputs are 5V at 0.2A for the SBTN01L-05, 9V at 0.11A for the SBTN01L-09, and 15V at 0.07A for the SBTN01L-15, while this model provides 12V at 0.08A.
