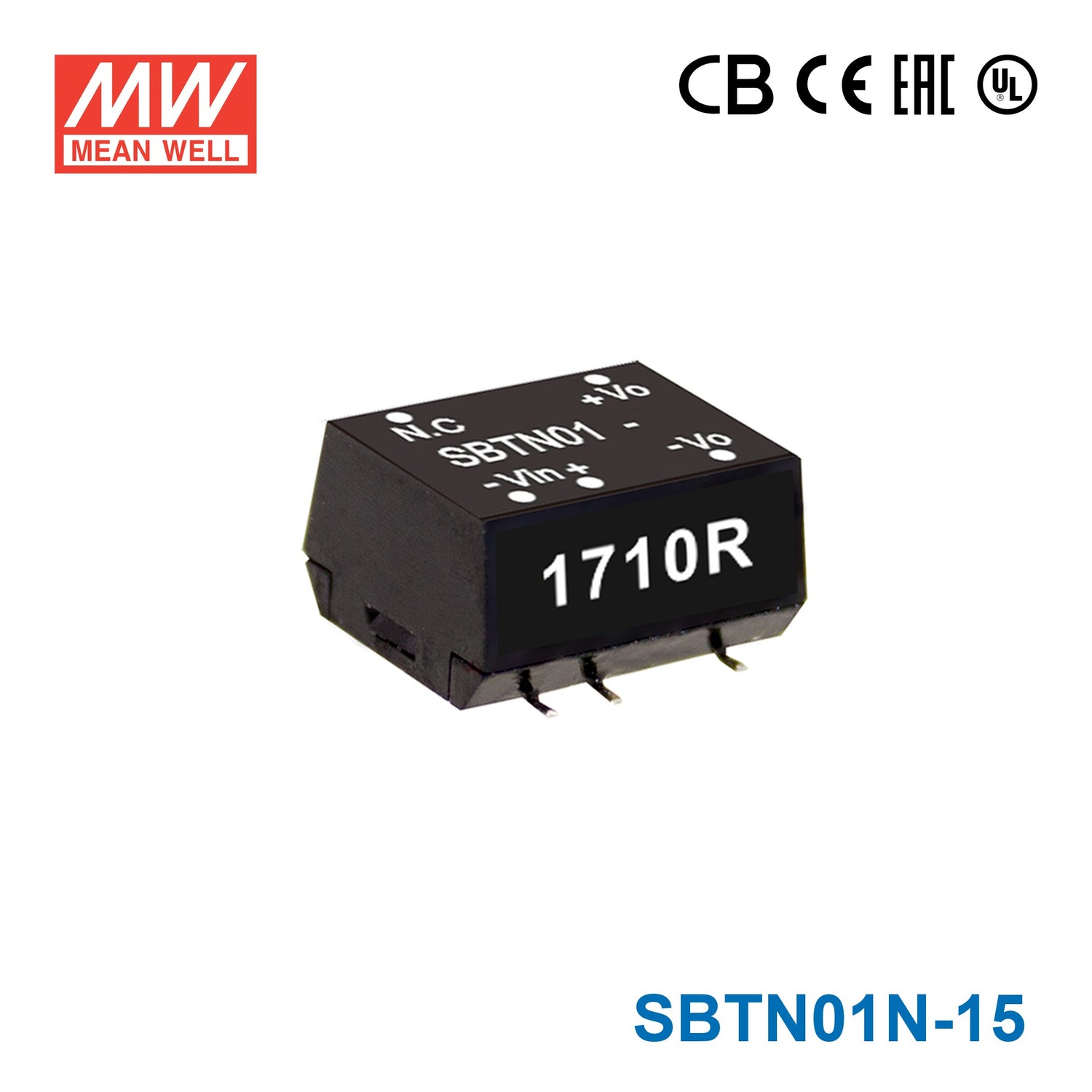

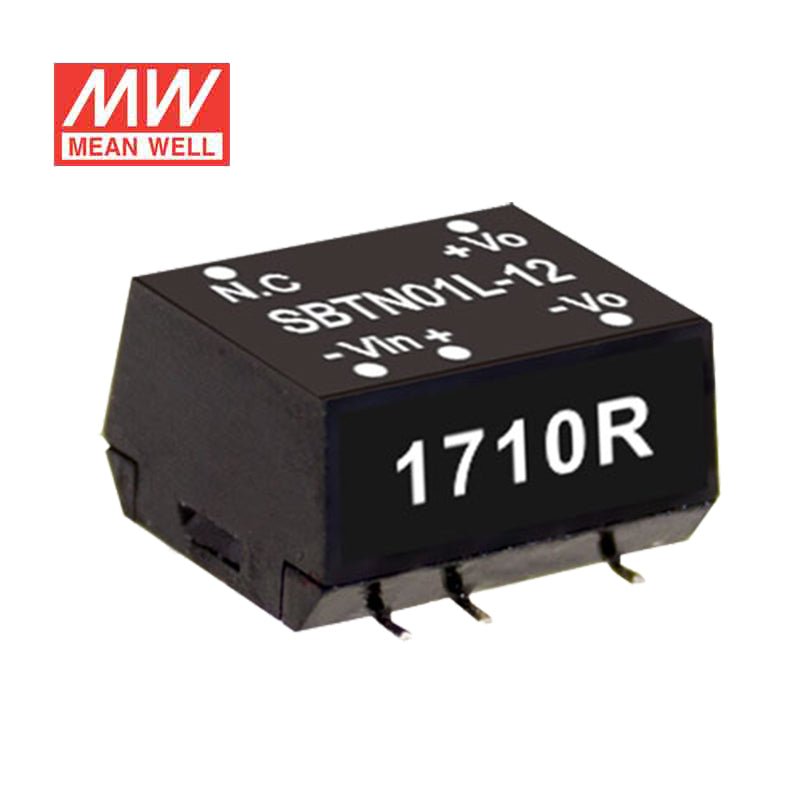

Mean Well SBTN01N-15 DC-DC Converter - 1W 24V DC in 15V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 84% |
| Protections: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max. Optional models (SC-suffix): Continuous |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage24V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SBTN01N-15 for a low-power 15V industrial electronics rail?
It is suitable for low-power 15V electronics where the load remains within 1W and 0.07A. The output mode is constant voltage, which aligns with circuits that require a regulated 15V supply.
Is this model a fit for a small 15V embedded or automation module in a 24-26VAC system?
Yes, if the source is within the listed 24-26VAC input range and the 15V load does not exceed 0.07A. This makes it appropriate for compact embedded and automation subcircuits rather than higher-power devices.
Can the SBTN01N-15 support a 15V analog or control stage in a compact enclosure?
It can support a low-current 15V analog, control, or interface stage up to 1W. The compact size of 12.9 x 10.9 x 7.1 mm and weight of 0.0011 kg help where enclosure space is limited.
How does the SBTN01N-15 differ from the other SBTN01N converters?
The listed SBTN01N siblings all carry a 1W rating, but each uses a different output voltage and current combination. The family shown includes 5V at 0.2A, 9V at 0.11A, 12V at 0.08A, and 15V at 0.07A.
Is the SBTN01N-15 suitable for outdoor conditions or only temperature-challenging indoor equipment?
The product is specified for operation from -40C to +90C, so the temperature range supports demanding indoor equipment environments. No IP rating is listed, so the provided specifications do not verify outdoor suitability.
