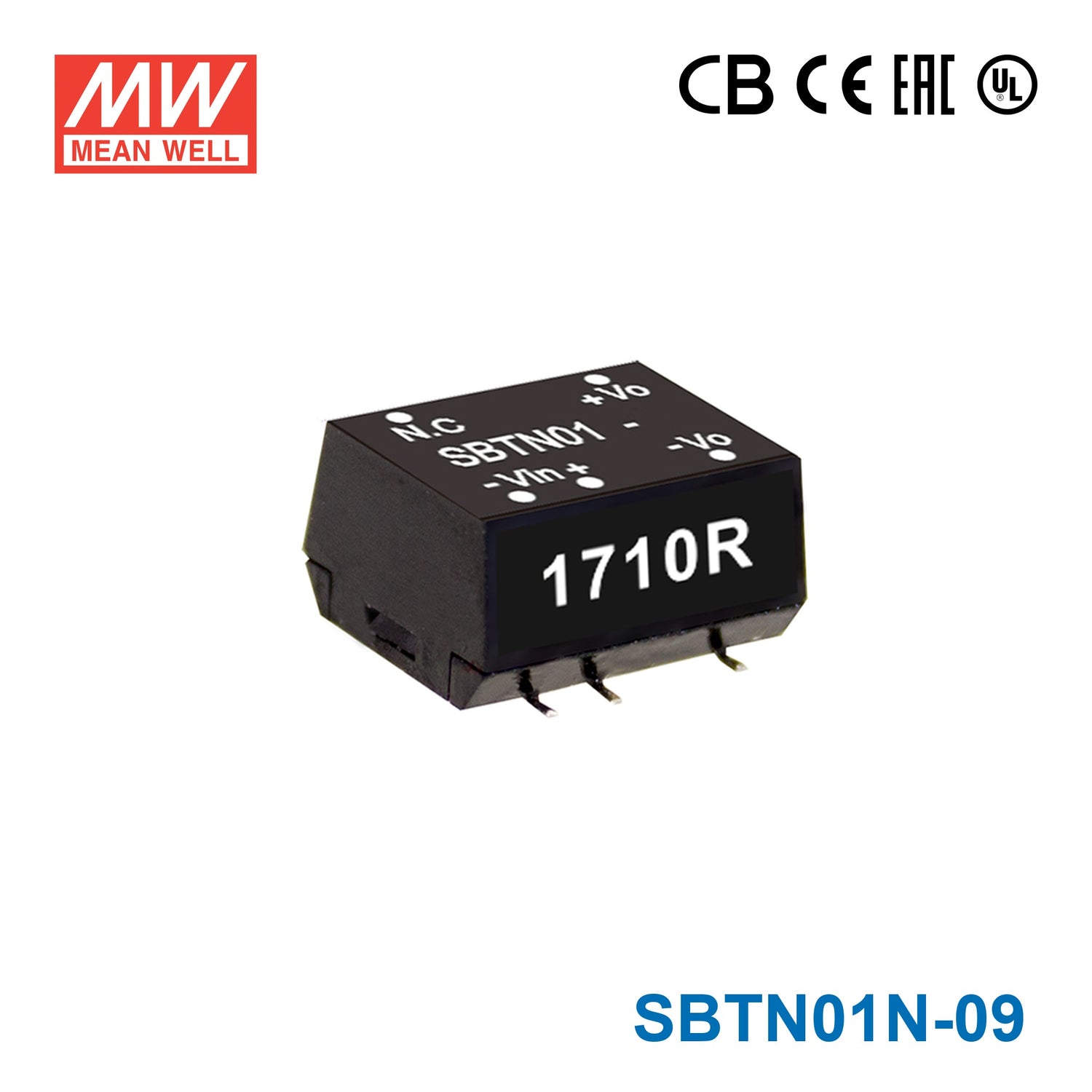

Mean Well SBTN01N-09 DC-DC Converter - 1W 24V DC in 9V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 84% |
| Protections: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max. Optional models (SC-suffix): Continuous |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage9 Volt
-
Rated Current0.11 Ampere
-
Input Voltage24V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SBTN01N-09 for a 9V PLC interface or signal conditioning circuit?
It can fit low-power 9V interface or signal circuits when the load stays within 1W and 0.11A. The listed input range is 24-26VAC, so it should be used where that source range is available.
Is this model suitable for a small 9V embedded subsystem in industrial electronics?
Yes, for a small embedded subsystem that needs a constant 9V output and draws no more than 0.11A. Its 1W rating places it in the low-power category rather than as a supply for larger control loads.
Can the SBTN01N-09 support low-current monitoring or instrumentation electronics?
It is appropriate for low-current monitoring, instrumentation, or auxiliary electronics that require 9V constant voltage up to 0.11A. The compact 12.9 x 10.9 x 7.1 mm size also helps in dense assemblies.
How does the SBTN01N-09 compare with the rest of the SBTN01N family?
Each listed SBTN01N model is rated for 1W, but the output voltage and current differ by version. The family options shown are 5V at 0.2A, 9V at 0.11A, 12V at 0.08A, and 15V at 0.07A.
Is the SBTN01N-09 meant for outdoor environments or wide-temperature industrial enclosures?
The temperature specification is -40C to +90C, which supports use across a broad operating range. No IP rating is listed in the provided specs, so outdoor exposure is not established by the available data.
