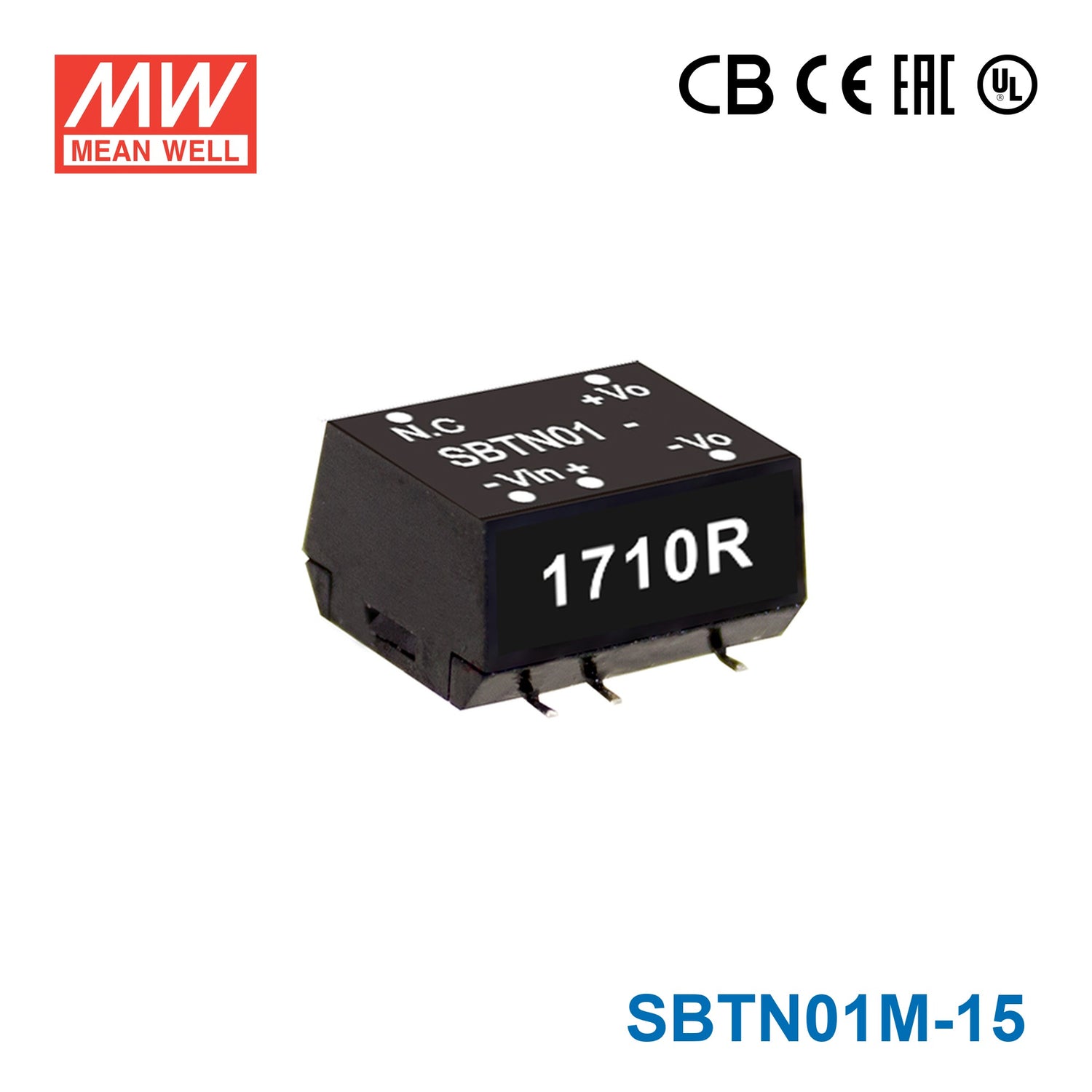

Mean Well SBTN01M-15 DC-DC Converter - 1W 12V DC in 15V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 84% |
| Protections: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period for 60 min, each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max. Optional models (SC-suffix): Continuous |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SBTN01M-15 for a low-power 15V industrial control signal circuit?
It can fit low-power 15V control or signal applications where the load stays within 1W and 0.07A. The listed operating mode is constant voltage, so it is intended for circuits that require a regulated 15V output.
Is this converter suitable for embedded electronics that need a small 15V auxiliary rail?
Yes, it is sized for very small embedded or automation subcircuits that need 15V at up to 0.07A. Its 12.9 x 10.9 x 7.1 mm body and 0.0011 kg weight make it appropriate where board space and mass are limited.
Can the SBTN01M-15 support a 15V analog or sensing stage in industrial equipment?
It is appropriate for a low-current 15V analog, measurement, or sensing stage if the total demand does not exceed 0.07A or 1W. The input range is listed as 10-13VAC, so it should be matched to systems in that input window.
How does the SBTN01M-15 compare with the other SBTN01M models?
All listed SBTN01M models are 1W converters in the same family. The sibling outputs are 5V at 0.2A for SBTN01M-05, 9V at 0.11A for SBTN01M-09, 12V at 0.08A for SBTN01M-12, and 15V at 0.07A for SBTN01M-15.
Is the SBTN01M-15 suited for harsh temperature environments or outdoor use?
The specified operating temperature is -40C to +90C, which supports use across a wide temperature range. No IP rating is listed in the provided specs, so the product data does not establish outdoor or washdown suitability.
