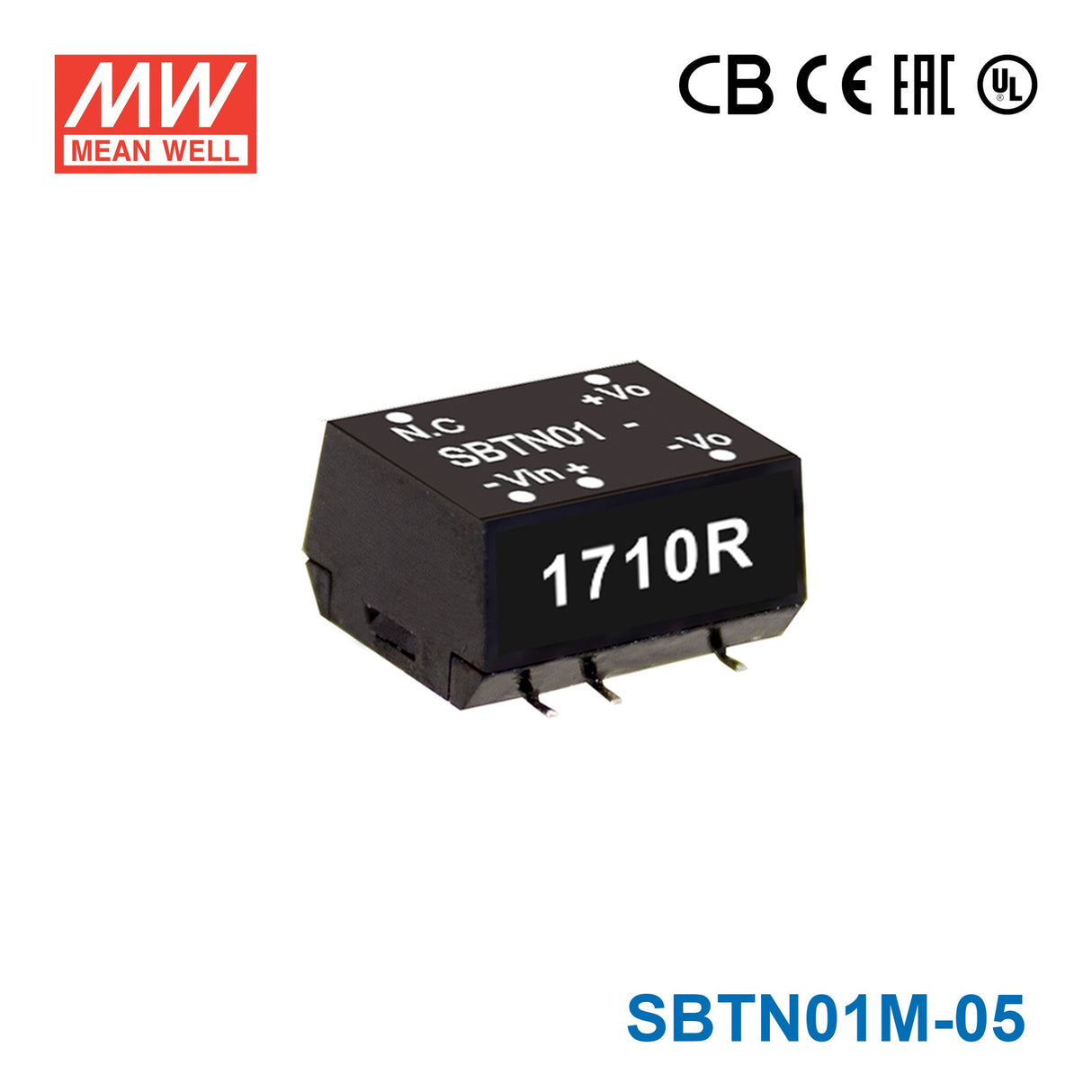

Mean Well SBTN01M-05 DC-DC Converter - 1W 12V DC in 5V out
The SBTN01M is a 1W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL62368-1(Except for 9V output models), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
::specification::
Frequently Asked Questions
Can I use the SBTN01M-05 to power a low-power 5V embedded controller from a 10-13VAC source?
Yes, this model is intended for applications where the converter input is 10-13VAC and the load needs a 5V constant-voltage output. Its output rating is 0.2A with 1W total power, so it fits low-power embedded controllers and logic sections.
Is this a reasonable choice for small industrial monitoring electronics that run on 5V?
It can be, as long as the 5V load stays within 0.2A and 1W. That makes it suitable for low-power monitoring, control, or communications circuits rather than higher-draw 5V devices.
Can the SBTN01M-05 work in compact automation hardware with very little board space?
Yes, it is very compact at 12.9 x 10.9 x 7.1 mm and weighs 0.0011 kg. Those dimensions make it practical for dense automation or embedded assemblies where only a small 5V rail is required.
Is this converter suitable for outdoor equipment cabinets?
The operating temperature range is -40°C to +90°C, which supports a wide range of equipment conditions. No IP rating is listed in the provided specs, so it is better suited to protected housings or indoor control assemblies than directly exposed outdoor use.
How does the SBTN01M-05 compare with the other SBTN01M versions?
All listed SBTN01M models are 1W converters, but they differ by output. The siblings are 9V at 0.11A for the SBTN01M-09, 12V at 0.08A for the SBTN01M-12, and 15V at 0.07A for the SBTN01M-15, while this model provides 5V at 0.2A.
