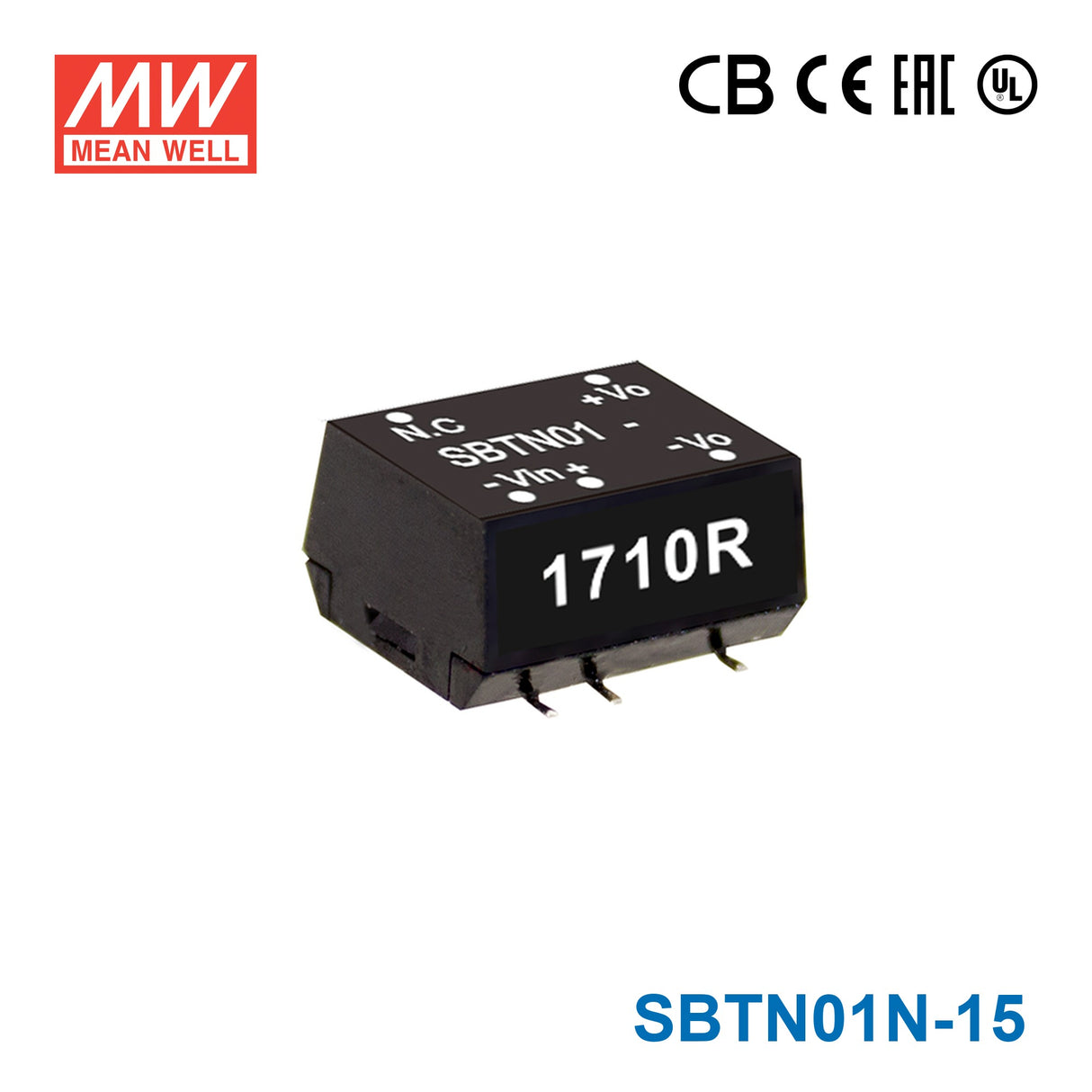

Mean Well SBTN01N-15 DC-DC Converter - 1W 24V DC in 15V out
The SBTN01N is a 1W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL62368-1(Except for 9V output models), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSBTN Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage24V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.51 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
::specification::
Frequently Asked Questions
Can I use the SBTN01N-15 for a low-power 15V industrial electronics rail?
It is suitable for low-power 15V electronics where the load remains within 1W and 0.07A. The output mode is constant voltage, which aligns with circuits that require a regulated 15V supply.
Is this model a fit for a small 15V embedded or automation module in a 24-26VAC system?
Yes, if the source is within the listed 24-26VAC input range and the 15V load does not exceed 0.07A. This makes it appropriate for compact embedded and automation subcircuits rather than higher-power devices.
Can the SBTN01N-15 support a 15V analog or control stage in a compact enclosure?
It can support a low-current 15V analog, control, or interface stage up to 1W. The compact size of 12.9 x 10.9 x 7.1 mm and weight of 0.0011 kg help where enclosure space is limited.
How does the SBTN01N-15 differ from the other SBTN01N converters?
The listed SBTN01N siblings all carry a 1W rating, but each uses a different output voltage and current combination. The family shown includes 5V at 0.2A, 9V at 0.11A, 12V at 0.08A, and 15V at 0.07A.
Is the SBTN01N-15 suitable for outdoor conditions or only temperature-challenging indoor equipment?
The product is specified for operation from -40C to +90C, so the temperature range supports demanding indoor equipment environments. No IP rating is listed, so the provided specifications do not verify outdoor suitability.
