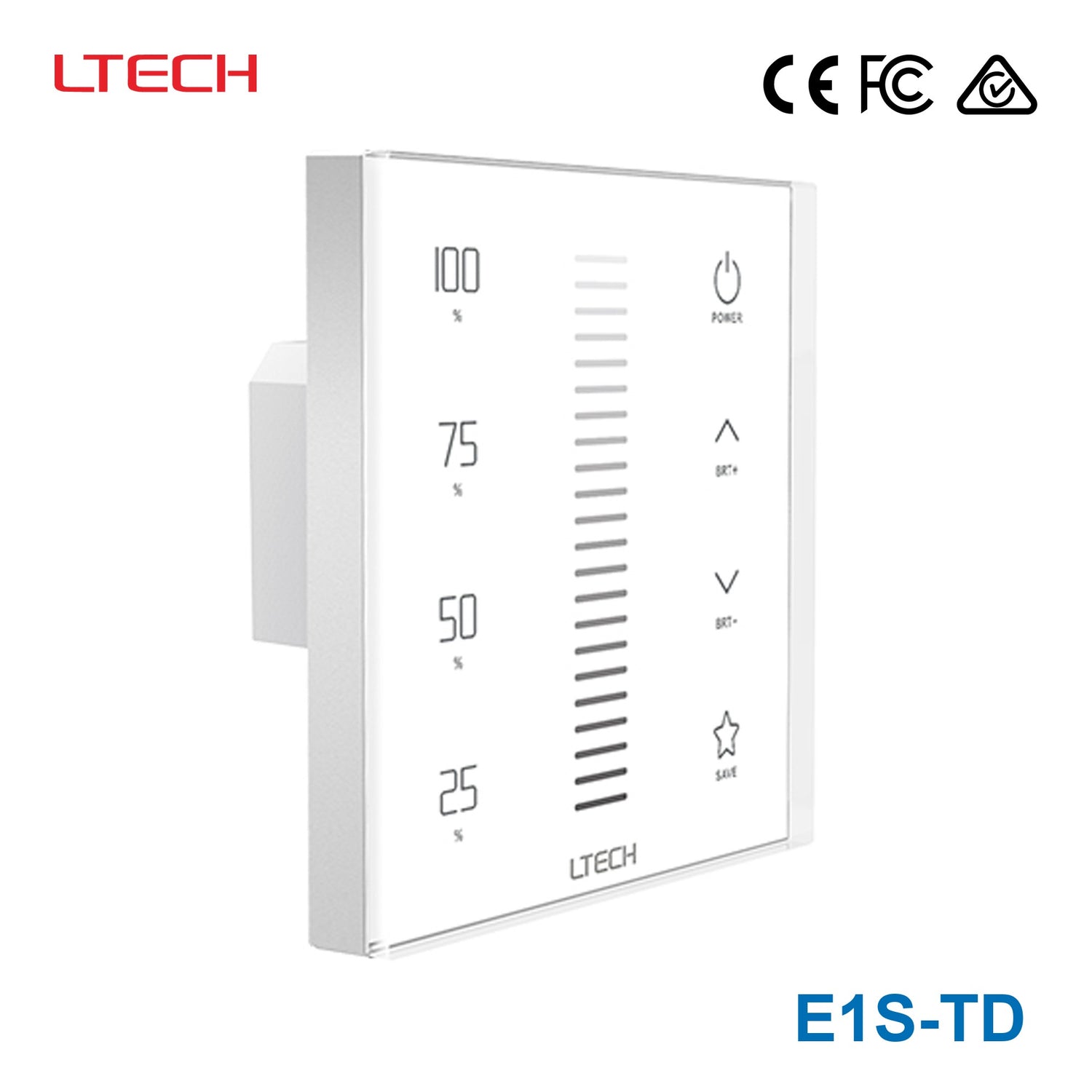

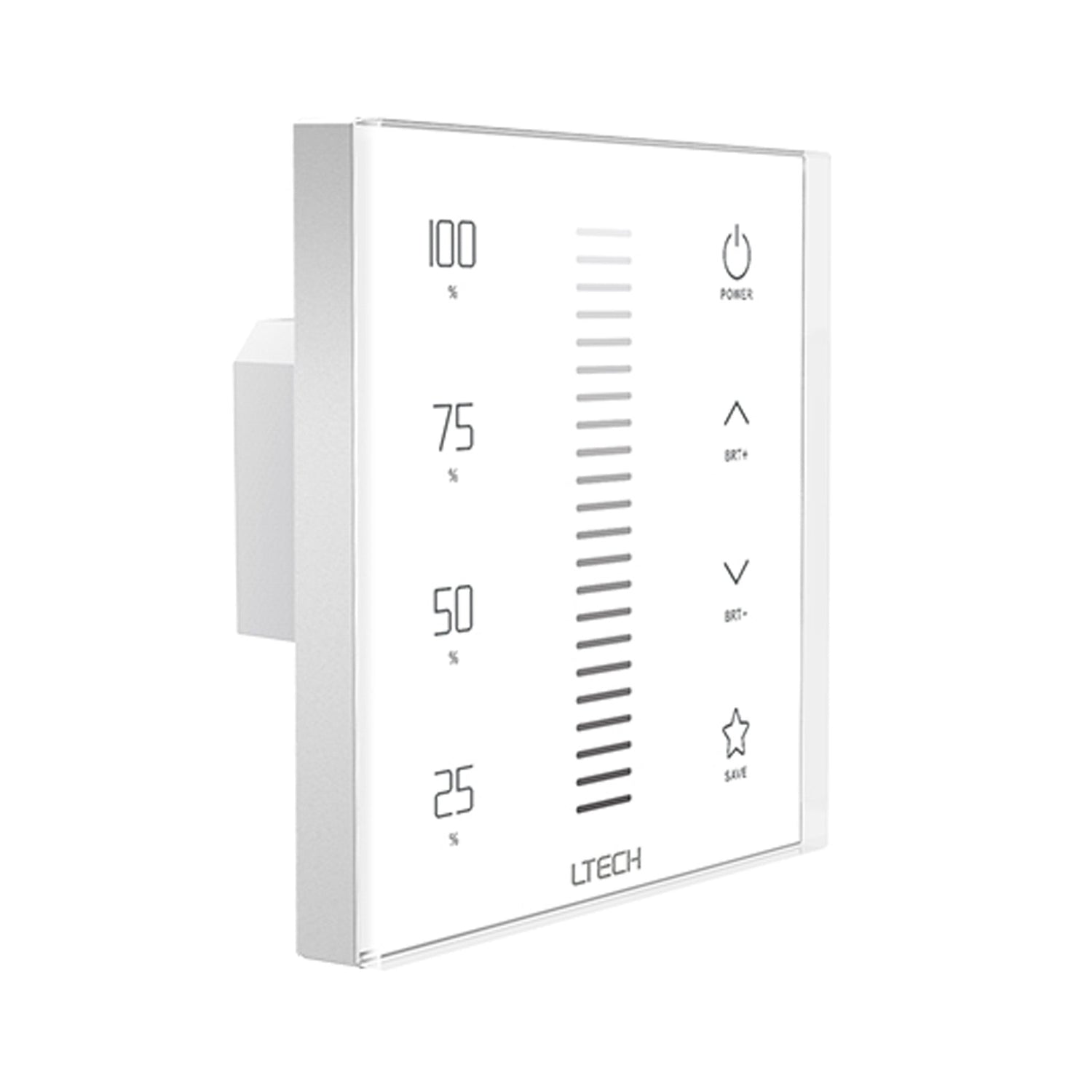

Ltech E1S-TD Touch Panel - Triac Dimmer
Description
Description
- 2 in 1 function: RF wireless control and touch panel control.
- Trailing edge signal output
- lamps can be connected directly
- easy and convenient.
- Touch keys with chord and LED indicator.
- Adopts capacitive touch control technology on the panel
- makes LED color selection more user-friendly.
- Touch panel can be controlled by remote directly or smart phone if add a gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Power Rating200 Watt
-
Input Voltage100V~240V
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length3.39 in
-
Width3.39 in
-
Height1.42 in
-
Weight0.51 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of dimming does the Ltech E1S-TD use?
The Ltech E1S-TD is a triac dimmer with trailing edge signal output. It is designed for AC phase-cut dimming applications where that control method is required.
Is the E1S-TD only a wall touch panel, or can it also be controlled wirelessly?
This model combines two control methods in one unit: touch panel control and RF wireless control. It can also work with smartphone control when a compatible gateway is added.
What kinds of applications is the E1S-TD suited for?
The E1S-TD is intended for standalone LED control and dimming applications where a compact touch interface and wireless control are useful. It is a fit for commercial or professional lighting environments that need simple brightness control through a dedicated panel.
What is the power rating of the Ltech E1S-TD?
This model is rated at 200 W. Buyers comparing compact dimming panels should use that rating as a key reference point when evaluating whether it matches the intended load requirement.
Can the E1S-TD be used in demanding indoor environments?
The specified operating temperature range is -20°C to 50°C, which supports use across a wide range of indoor conditions. That makes it suitable for environments that may experience colder or warmer ambient temperatures than a typical conditioned room.
Does this dimmer support smart control options?
Yes, the product description states that the touch panel can be controlled by smartphone if a gateway is added. On its own, it already supports touch panel operation and RF wireless control.
What warranty comes with the Ltech E1S-TD?
The listed warranty period for this model is 5 years. That is a useful consideration for buyers looking for a dimming controller intended for long-term use in professional lighting projects.
