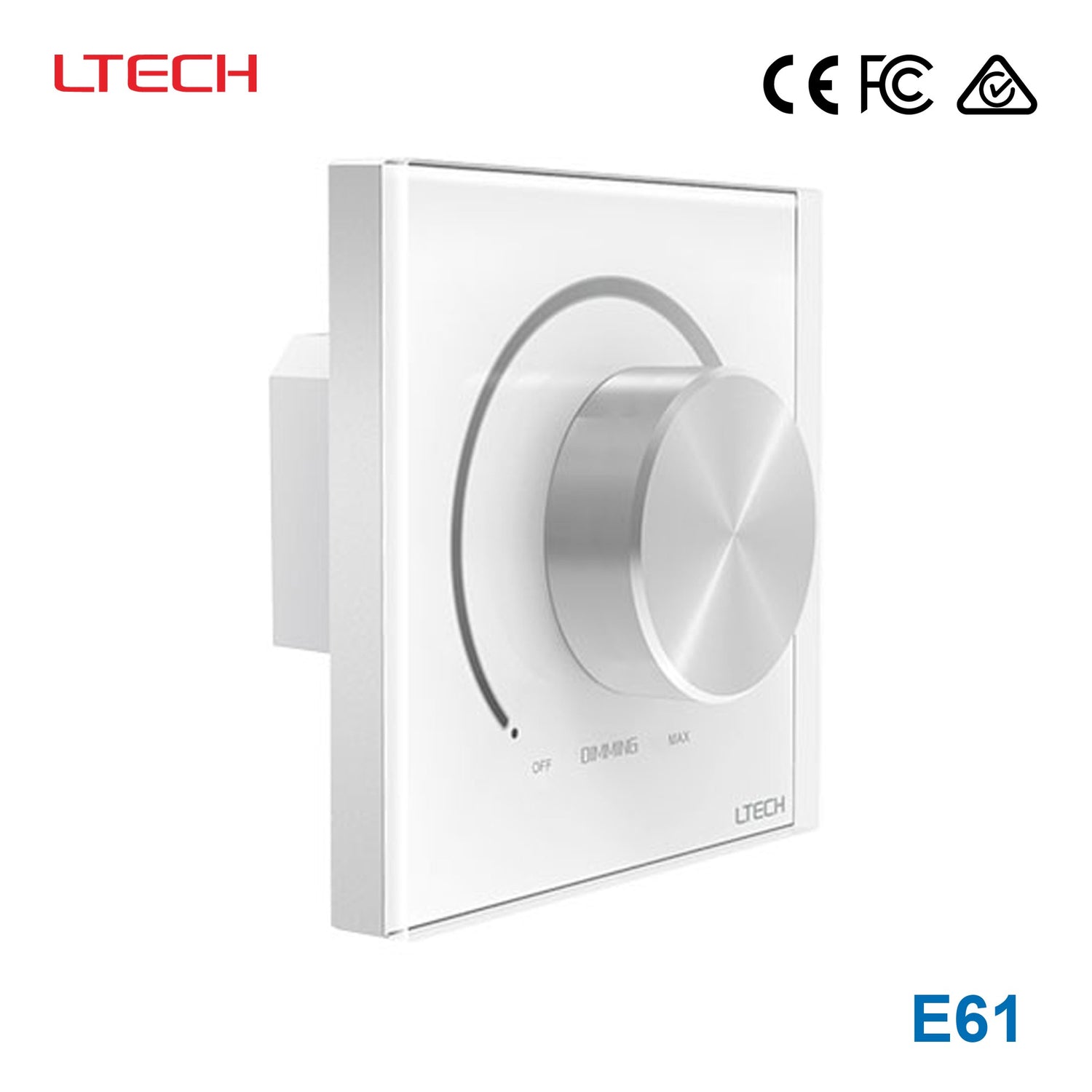

Ltech E61 Rotary Panel - Dimmer
Description
Description
- 2 in 1 function: RF wireless control and PWM power output.
- Power output
- lamps can be connected directly
- easy and convenient.
- With 2 functions: dimming and switch.
- Touch panel can be controlled by remote directly or smart phone if add a gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Power Rating144 Watt
-
Output Voltage24 Volt
-
Rated Current6 Ampere
-
Input Voltage12V~24V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-10°C~55°C
-
Warranty5 Year
-
Length3.39 in
-
Width3.39 in
-
Height1.42 in
-
Weight0.53 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech E61 Rotary Panel - Dimmer do?
The Ltech E61 is a standalone LED dimmer panel that combines RF wireless control with PWM power output in one unit. It is designed for dimming control and on/off switching for compatible lighting loads.
Does the Ltech E61 support both dimming and switching?
Yes. This model supports two control functions: dimming and switch control. That makes it suitable for applications where users want brightness adjustment as well as simple on/off operation from the same panel.
What electrical rating should buyers check for the Ltech E61?
The Ltech E61 is rated for 24 V output, 6 A rated current, and 144 W power. Buyers should confirm their lighting system matches those limits before selecting this model.
Is the Ltech E61 a smart lighting controller?
It can be part of a smart lighting setup if a gateway is added. The product description states the touch panel can be controlled directly by remote, or by smartphone when used with a gateway.
Where is the Ltech E61 best used?
This model is well suited for LED dimming applications that need a wall-panel style controller with wireless operation. It fits projects where users want local brightness control with the option to add smarter remote access later.
What operating environment is suitable for the Ltech E61?
The specified operating temperature range is -10°C to 55°C. Buyers should use it in environments that stay within that range for normal performance and longevity.
How does the Ltech E61 compare with a basic dimmer-only panel?
The E61 stands out by combining RF wireless control and PWM power output in the same product. It also supports both dimming and switching, and it can work with smartphone control when paired with a gateway.
What warranty comes with the Ltech E61 Rotary Panel - Dimmer?
This model includes a 5-year warranty period. That longer warranty can be useful for commercial and professional buyers who want added confidence in long-term service use.
