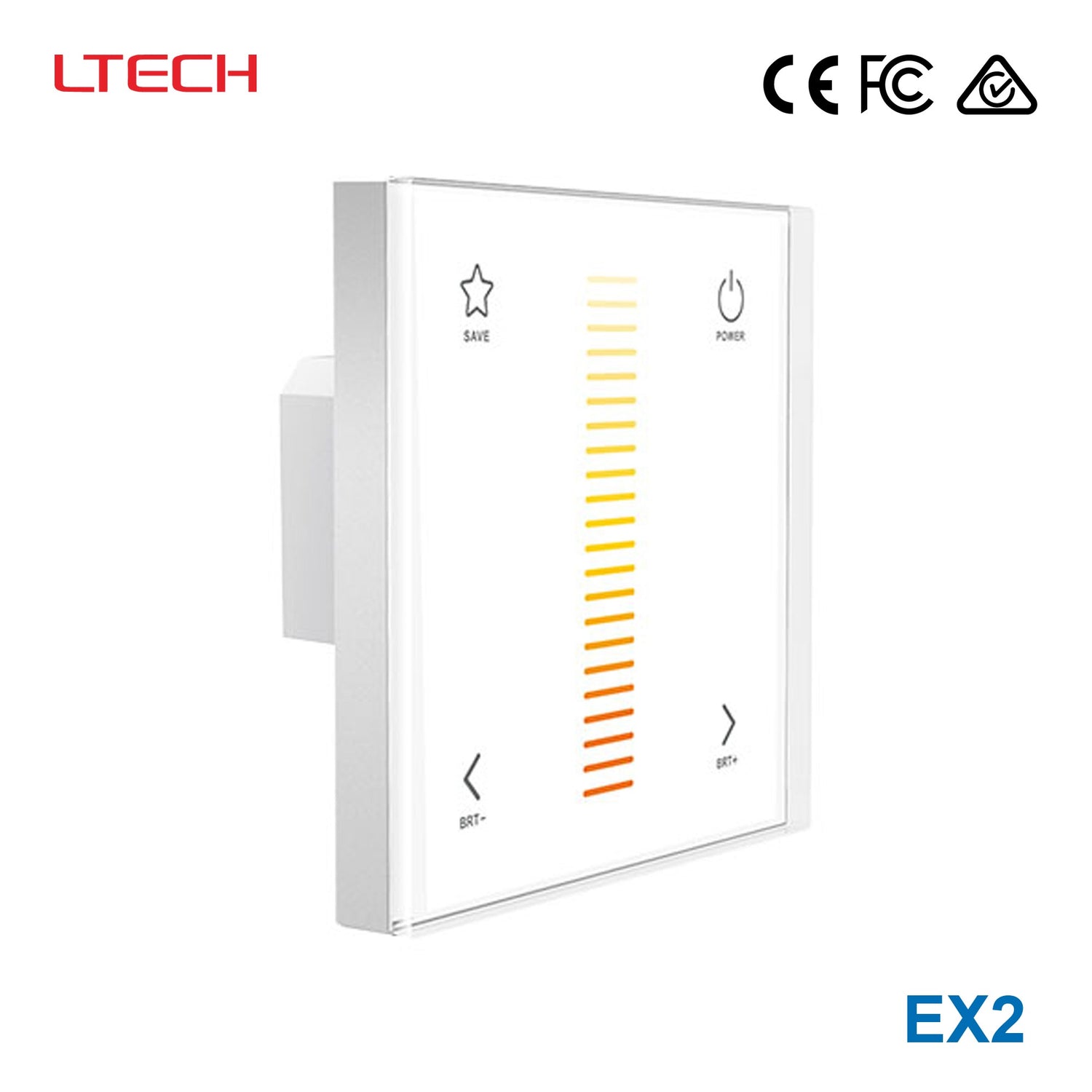

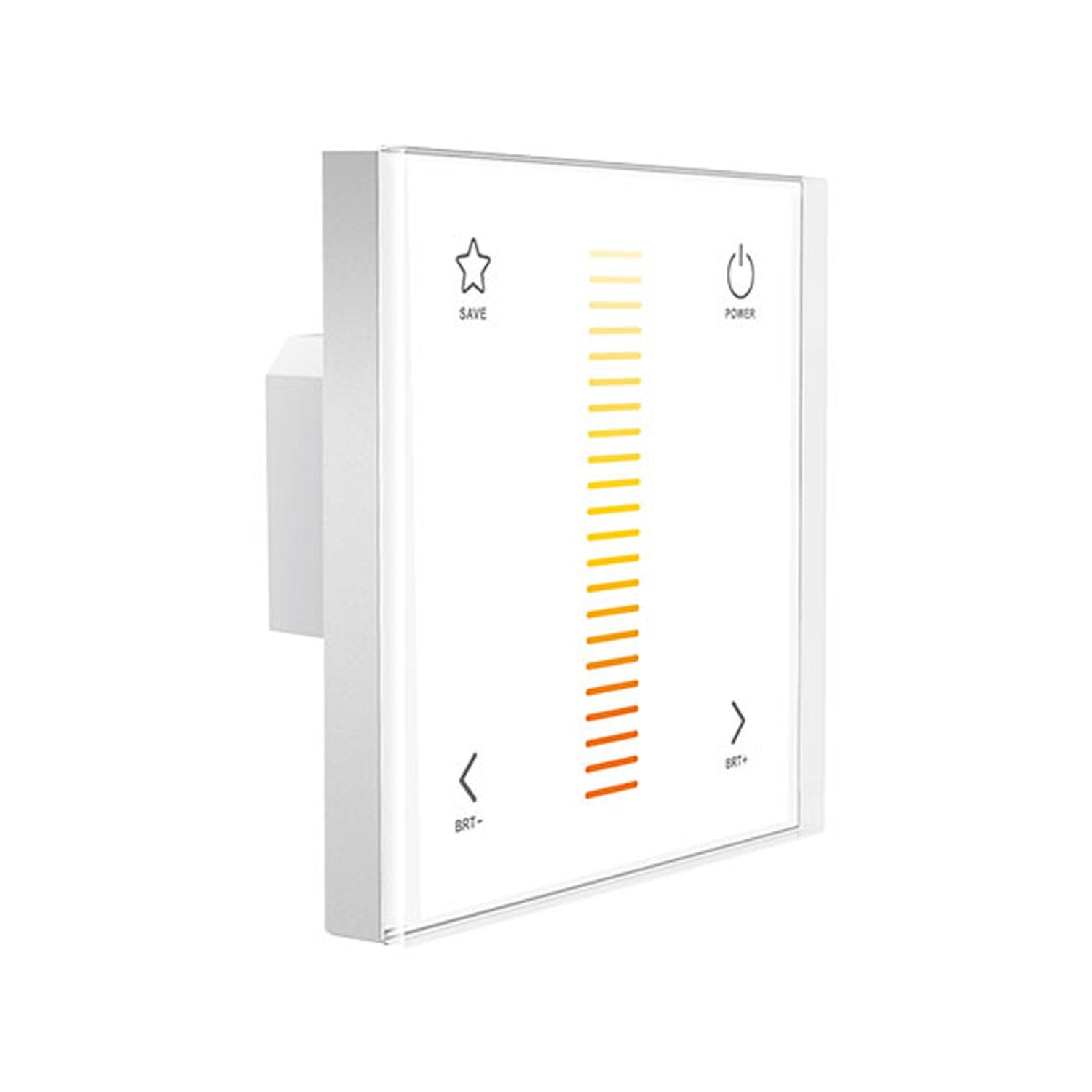

Ltech EX2 Wireless RF/DMX512 Single-zone Touch Panel - Colour Tempe...
Description
Description
- Adopt wireless RF and wired DMX512 protocol 2 in 1 control mode
- more flexible and convenient for project installation.
- Advanced RF wireless sync/zone control technology
- make sure dynamic color modes synchronously among multiple drivers.
- Install touch panel at different areas
- can control the same LED light
- achieve multi-panel control
- no quantity limited.
- Touch keys with chord and LED indicator.
- Adopts capacitive touch control technology makes LED dimming selection more user-friendly.
- Compatible with remote and APP control with adding LTECH gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Input Voltage100V~240V
-
Dimming ControlDMX
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~55°C
-
Warranty5 Year
-
Length3.39 in
-
Width3.39 in
-
Height1.42 in
-
Weight0.51 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the LTECH EX2 used for?
The LTECH EX2 is a single-zone touch panel designed for colour temperature control in LED lighting systems. It is suited to projects that need a wall-mounted control point for tuning warm-to-cool white lighting in commercial, hospitality, retail, or architectural spaces.
Does the EX2 support both RF and DMX512 control?
Yes. This model combines wireless RF control and wired DMX512 protocol support in one panel. That makes it useful for projects that need the flexibility of wireless zone control while still fitting into DMX-based lighting environments.
Is the EX2 a single-zone or multi-zone controller?
The EX2 is a single-zone touch panel. It is intended to control one lighting zone, which makes it a good fit when a dedicated area needs independent colour temperature adjustment rather than whole-building multi-zone management from one panel.
Can more than one EX2 panel control the same lighting area?
Yes. The EX2 supports multi-panel control, so touch panels in different locations can control the same LED light or lighting zone. LTECH also states there is no quantity limit for this multi-panel control approach.
Can the EX2 work with app or remote control?
Yes, but that requires an LTECH gateway. With the gateway added, the EX2 is compatible with remote and app-based control, which can be useful for projects that want both a fixed wall panel and an additional smart control option.
Is the EX2 suitable for demanding indoor project environments?
It is designed to operate in temperatures from -20°C to 55°C, which covers a wide range of normal commercial and technical indoor conditions. The unit also carries a 5-year warranty, which supports its use in long-term professional lighting projects.
