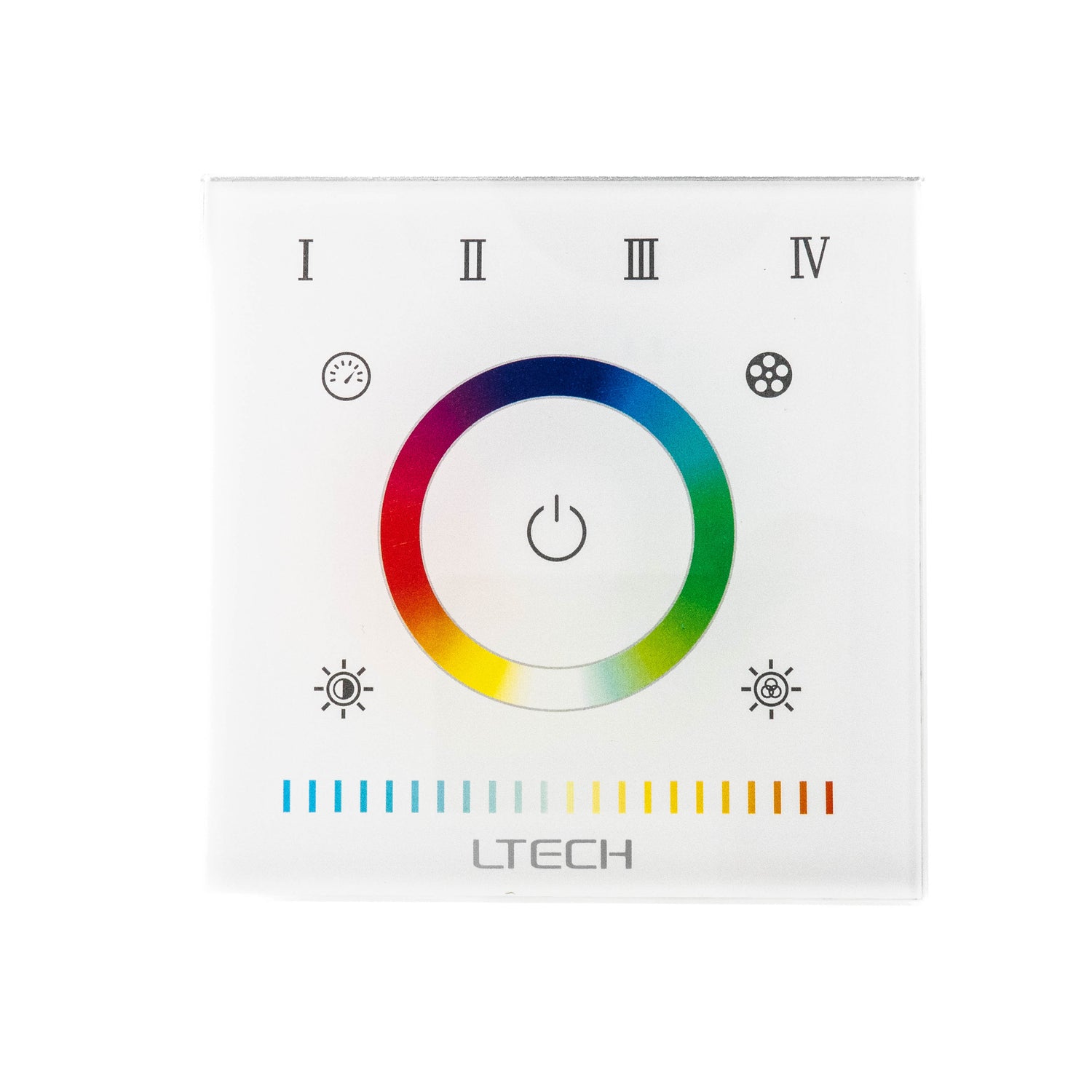

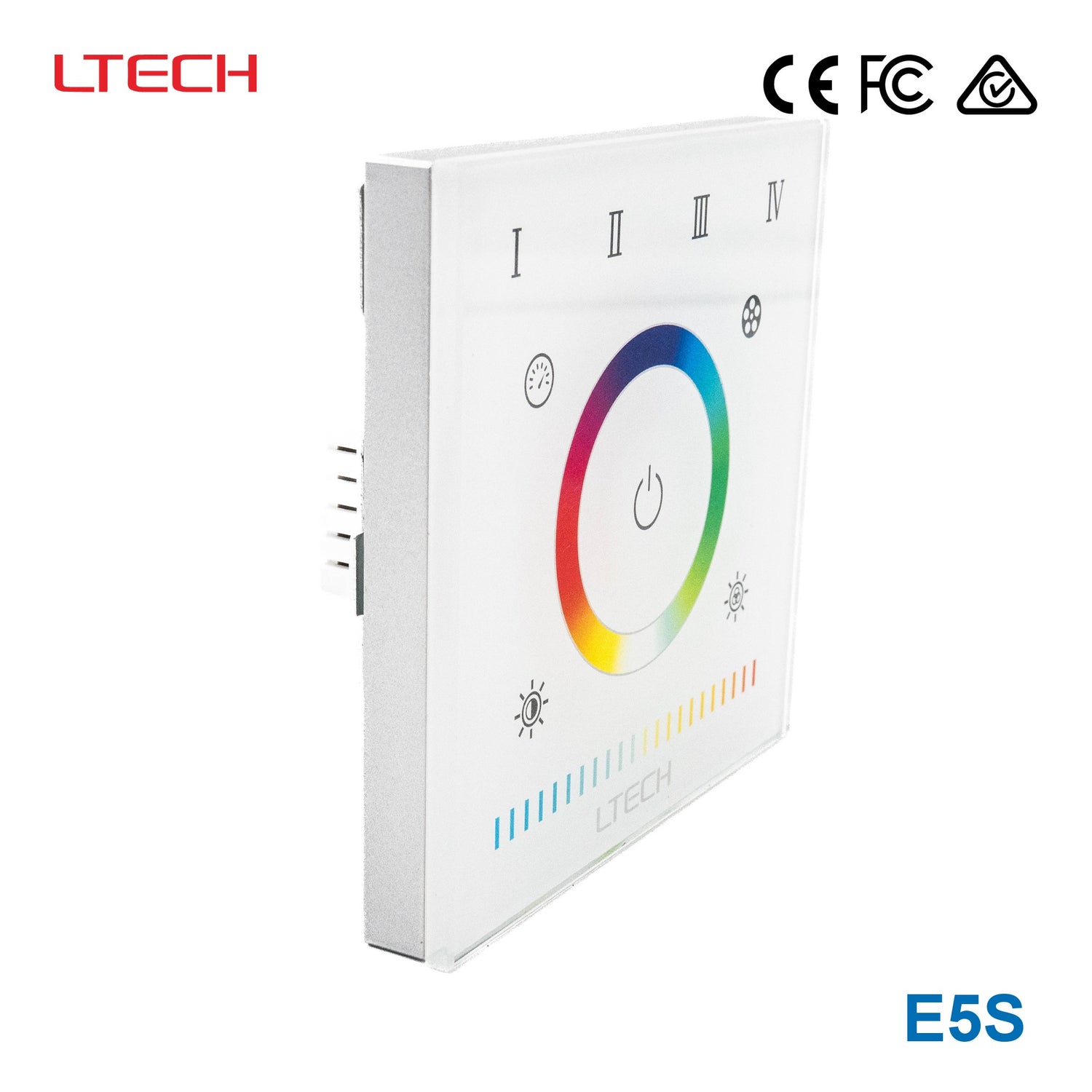

Ltech E5S Multi-zone Touch Panel - RGBWW
Description
Description
- 2 in 1 function: RF wireless control and PWM power output.
- Power output
- lamps can be connected directly
- easy and convenient.
- RGB
- RGBW
- RGB+CT LED lights can be controlled.
- Touch keys with chord and LED indicator.
- Adopts capacitive touch control technology on the full color panel
- makes LED color selection more user-friendly.
- Touch panel can be controlled by remote directly or smart phone if add a gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Power Rating144 Watt
-
Output Voltage24 Volt
-
Rated Current12 Ampere
-
Input Voltage12V~24V
-
No of Output5
-
Dimming ControlPWM
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~55°C
-
Warranty5 Year
-
Length3.39 in
-
Width3.39 in
-
Height1.42 in
-
Weight0.51 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech E5S Multi-zone Touch Panel control?
The Ltech E5S is designed to control RGB, RGBW, and RGB+CT LED lighting. It combines RF wireless control with PWM power output in one model, making it suitable for color-changing and tunable-white lighting applications. This makes it a flexible option for projects that need more than simple single-color dimming.
Is the Ltech E5S only a wall panel, or does it also provide output for lighting control?
This model is more than a touch panel because it combines RF wireless control and PWM power output in a single unit. That 2-in-1 design helps distinguish it from panels that act only as control interfaces. It is intended for direct LED lighting control within its stated electrical ratings.
What are the electrical ratings of the Ltech E5S?
The Ltech E5S is rated for 24 V output, 12 A rated current, and 144 W power. Those published ratings define the operating range for this specific controller. Buyers should match the product to lighting systems that fit within those limits.
Does the Ltech E5S support smartphone control?
Yes, the touch panel can be controlled by smartphone if a compatible gateway is added. On its own, the product supports RF wireless control, and the gateway expands control options beyond direct remote use. This is useful for buyers who want smart-control capability without changing to a different controller model.
What type of dimming control does the Ltech E5S use?
The Ltech E5S uses PWM dimming control. PWM is commonly used for LED control because it supports smooth adjustment of brightness and color output in compatible lighting systems. For this model, PWM is part of its core control method.
Is the Ltech E5S suitable for demanding indoor environments?
The published operating temperature range is -20 degrees C to 55 degrees C, which supports use in a wide range of indoor commercial and architectural environments. Buyers with projects exposed to colder or warmer conditions should compare those conditions against this stated range. The product also carries a 5-year warranty period.
