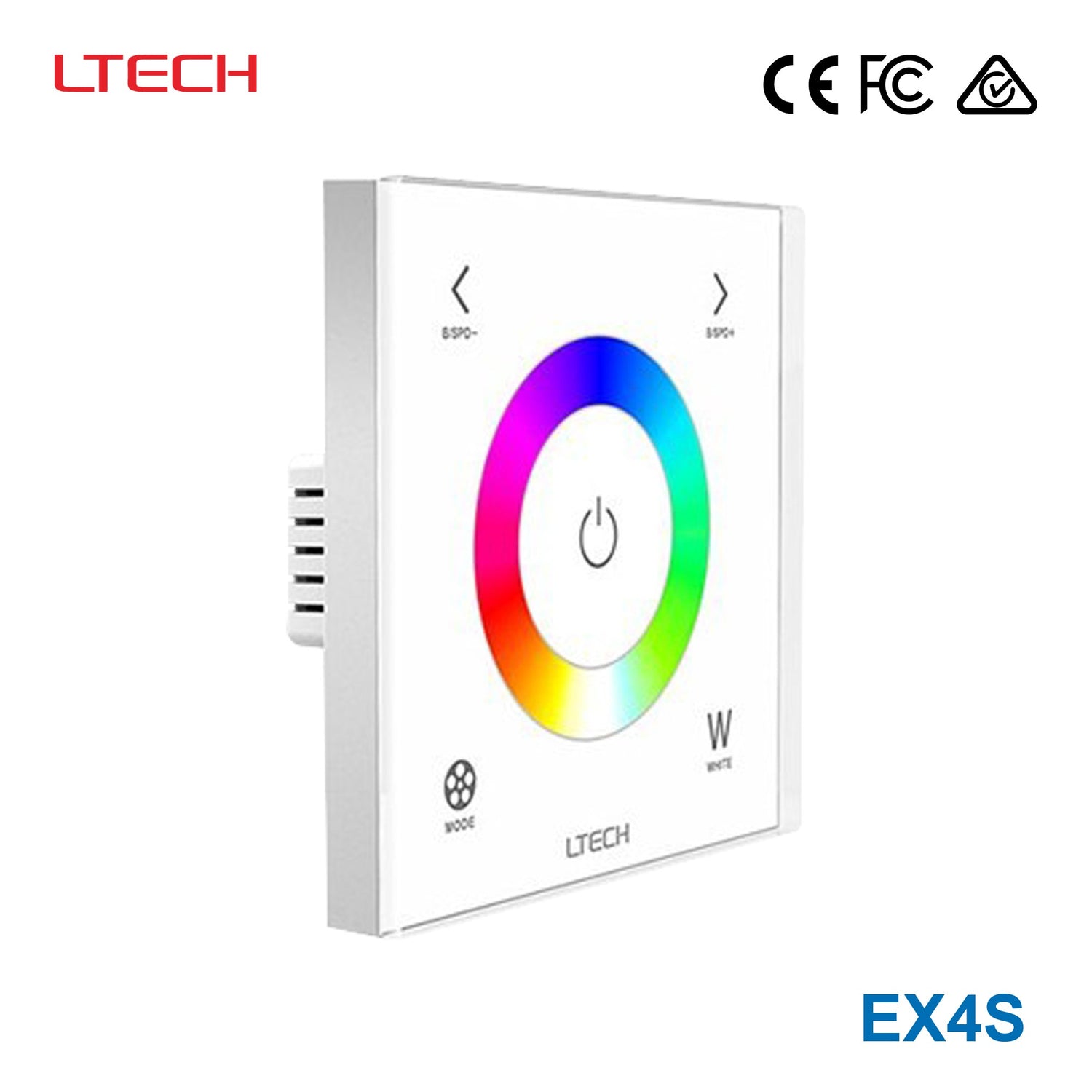

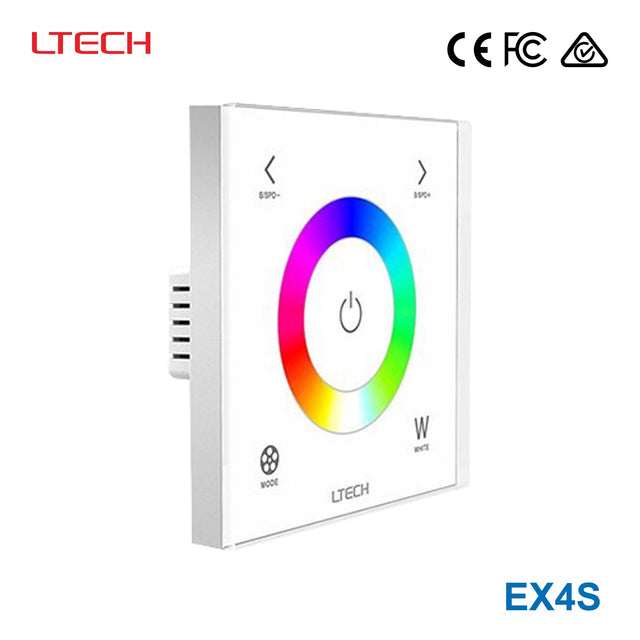

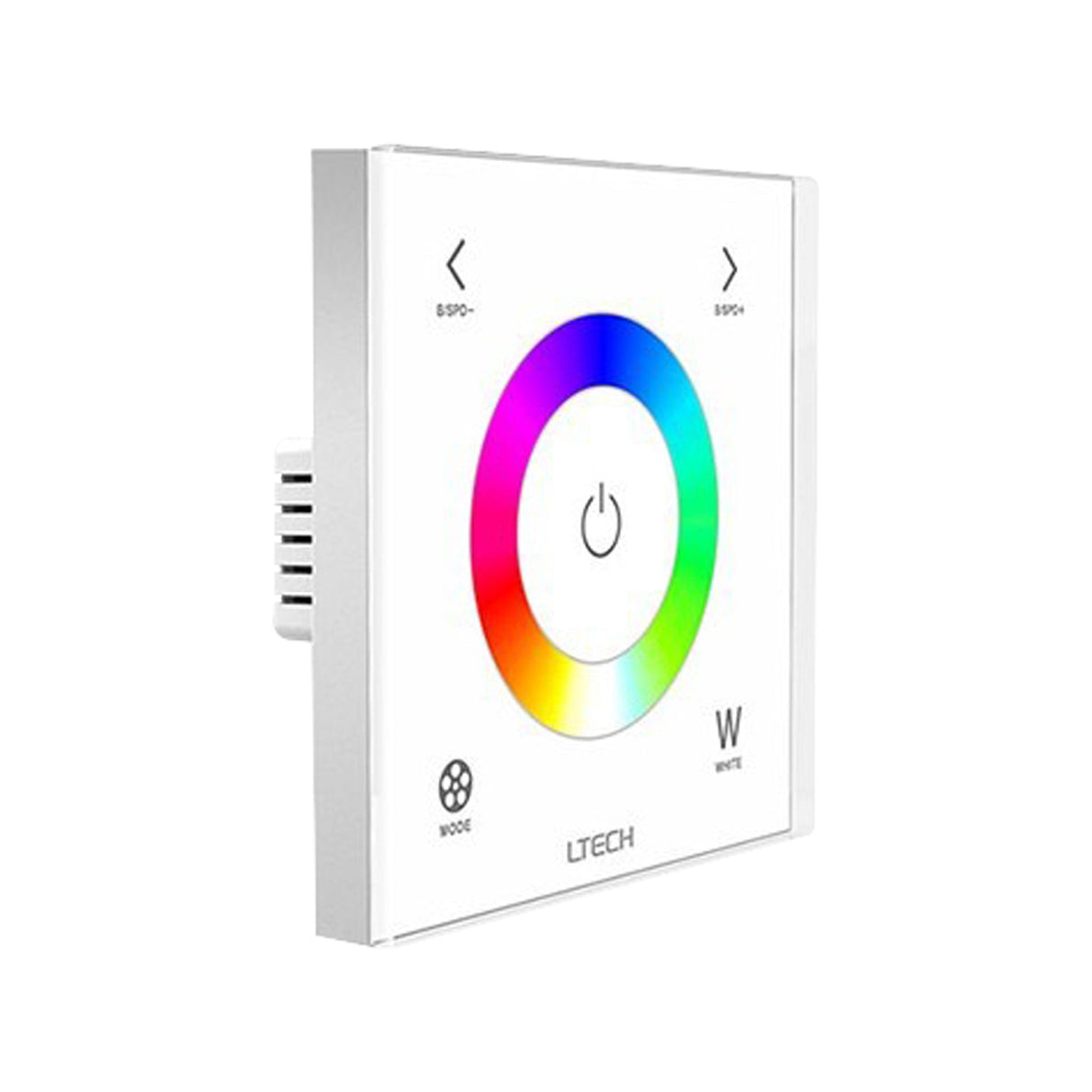

Ltech EX4S Wireless RF/DMX512 Single-zone Touch Panel - RGBW
Description
Description
- Adopt wireless RF and wired DMX512 protocol 2 in 1 control mode
- more flexible and convenient for project installation.
- Advanced RF wireless sync/zone control technology
- make sure dynamic color modes synchronously among multiple drivers.
- Install touch panel at different areas
- can control the same LED light
- achieve multi-panel control
- no quantity limited.
- Touch keys with chord and LED indicator.
- Adopts capacitive touch control technology makes LED dimming selection more user-friendly.
- Compatible with remote and APP control with adding LTECH gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Input Voltage100V~240V
-
Dimming ControlDMX
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~55°C
-
Warranty5 Year
-
Length3.39 in
-
Width3.39 in
-
Height1.42 in
-
Weight0.51 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech EX4S used for?
The Ltech EX4S is a single-zone touch panel for RGBW lighting control in commercial and project environments. It combines wireless RF control and wired DMX512 protocol support in one model, making it suited for systems that need flexible control options.
Does the EX4S support both RF and DMX control?
Yes. This model is designed with wireless RF and wired DMX512 protocol support in a 2-in-1 control mode. That makes it a good fit for buyers comparing wall-panel style control options for RGBW LED systems.
Can multiple EX4S panels control the same lighting zone?
Yes. The EX4S supports multi-panel control, so touch panels installed in different areas can control the same LED light. LTECH also states there is no quantity limit for this multi-panel control approach.
Is the EX4S compatible with remote or app control?
Yes, but that requires adding an LTECH gateway. With the gateway in place, the EX4S can work with remote and app-based control in addition to its touch panel interface.
How does the EX4S handle synchronized lighting effects?
The EX4S uses advanced RF wireless sync and zone control technology. According to the product description, this helps keep dynamic color modes synchronized across multiple drivers.
What operating environment is the EX4S rated for?
The specified operating temperature range is -20 degrees C to 55 degrees C. This gives it a wide working range for indoor commercial and project use where environmental conditions may vary.
What are the basic physical and warranty details for the EX4S?
The listed product weight is 0.2300 kg. The warranty period provided for this model is 5 years, which is useful for buyers planning longer-term commercial deployments.
