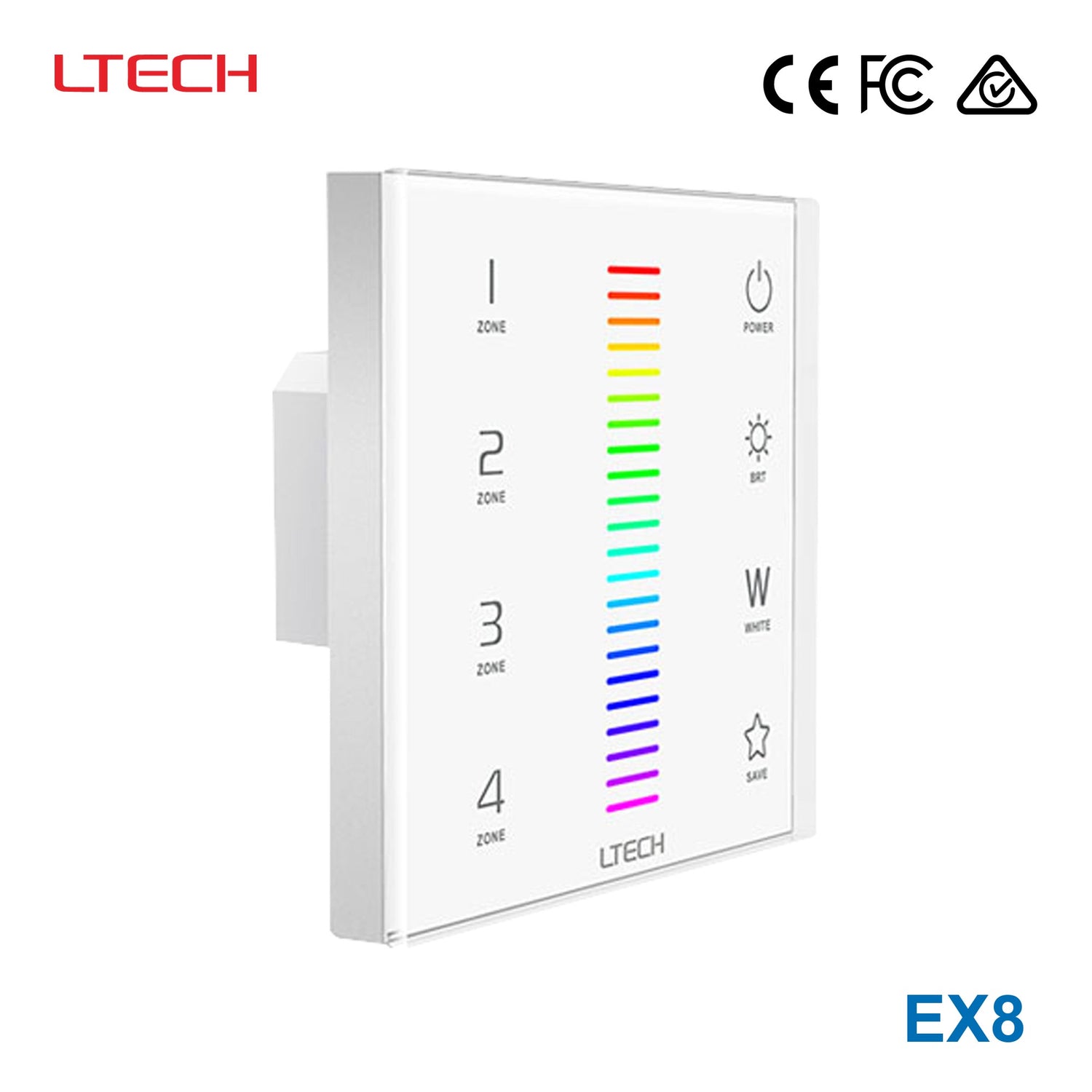

Ltech EX8 Wireless RF/DMX512 Multi-zone Touch Panel - RGBW
Description
Description
- Adopt wireless RF and wired DMX512 protocol 2 in 1 control mode
- more flexible and convenient for project installation.
- Advanced RF wireless sync/zone control technology
- make sure dynamic color modes synchronously among multiple drivers.
- Four zones can be combined arbitrarily
- for example: zone 1 and zone 2 as a group
- or zone 1
- zone 3
- zone 4 as a group
- or all the 4 zones as a group.
- No limit the quantity of drivers in each zone
- and all color modes keep synchronously.
- Support multiple panels linkage control
- no quantity limitation.
- Touch keys with chord and LED indicator.
- Adopts capacitive touch control technology on full color wheel
- make LED color selection more user-friendly.
- Compatible with remote and APP control with adding LTECH gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Input Voltage100V~240V
-
Dimming ControlDMX
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~55°C
-
Warranty5 Year
-
Length3.39 in
-
Width3.39 in
-
Height1.42 in
-
Weight0.51 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech EX8 used for?
The Ltech EX8 is a wall-mounted touch panel for controlling RGBW LED lighting in commercial or project environments. It supports multi-zone lighting control and is designed for applications that benefit from both wireless RF control and DMX512 capability.
Does the EX8 support both wireless and wired control methods?
Yes. This model combines wireless RF control and wired DMX512 protocol in one panel. That gives buyers more flexibility when selecting a control method for different lighting projects.
How many lighting zones can the EX8 control?
The EX8 supports four zones, and those zones can be grouped in different ways depending on how the project is organized. It can control individual zones, custom zone groups, or all four zones together.
Is the EX8 a good choice for synchronized multi-zone RGBW lighting?
Yes. LTECH states that the EX8 uses advanced RF wireless sync and zone control technology so dynamic color modes stay synchronized across multiple drivers in a zone. This makes it well suited for projects where coordinated RGBW lighting effects matter.
Can the EX8 work with remotes or app-based control?
Yes. The EX8 is compatible with remote control and app control when used with an added LTECH gateway. That makes it a flexible option for projects that want touch-panel control now and expanded control options later.
What kind of user interface does the EX8 have?
The EX8 uses capacitive touch control with a full color wheel, touch keys, and LED indicators. This interface is intended to make RGBW color selection more intuitive than basic button-only controllers.
What environments is the EX8 rated for?
This model is rated for operation from -20°C to 55°C. That range helps it fit a wide variety of indoor project environments where stable controller performance is important.
What is the warranty period for the Ltech EX8?
The listed warranty period for the EX8 is 5 years. For B2B buyers, that can be an important consideration when evaluating long-term use in lighting control projects.
