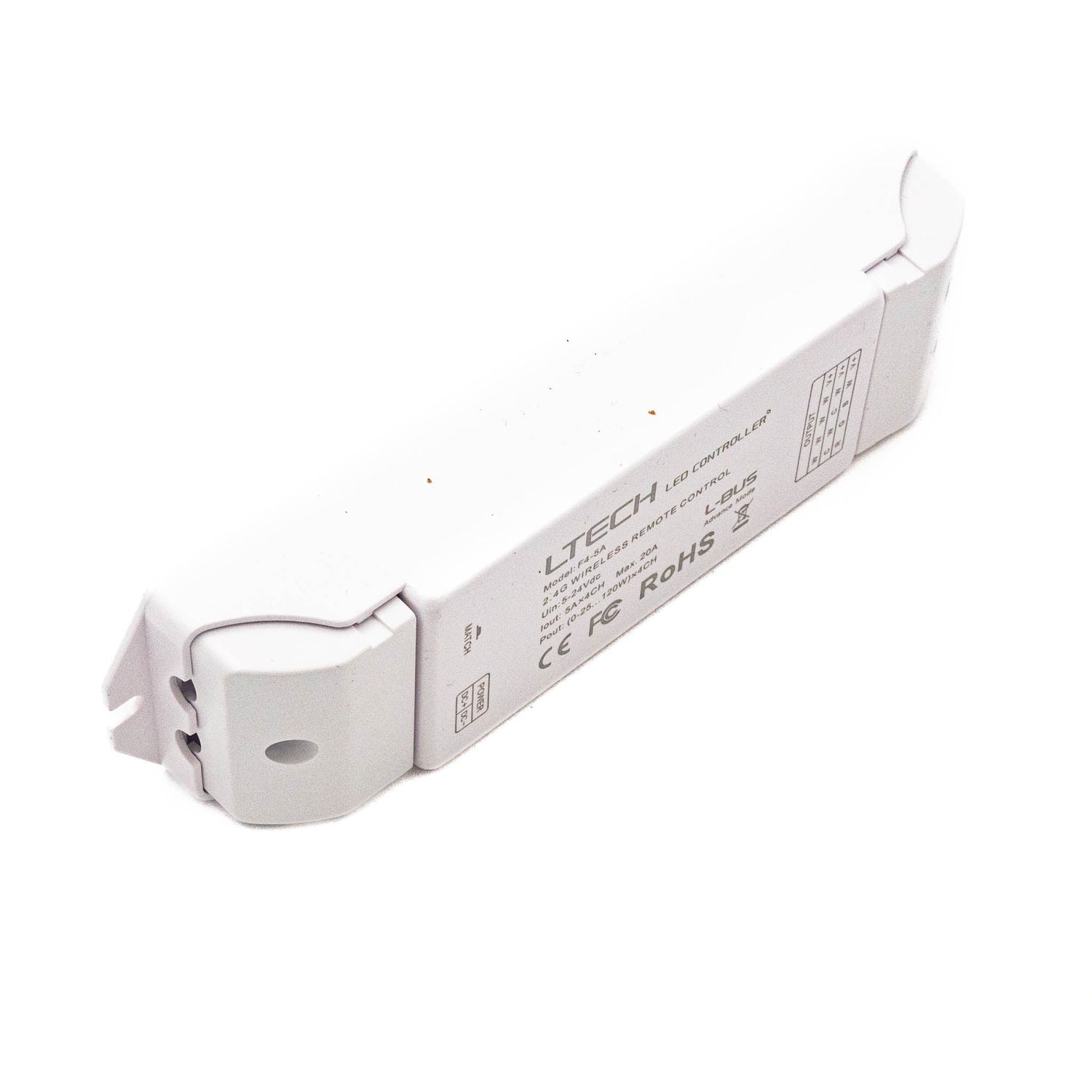

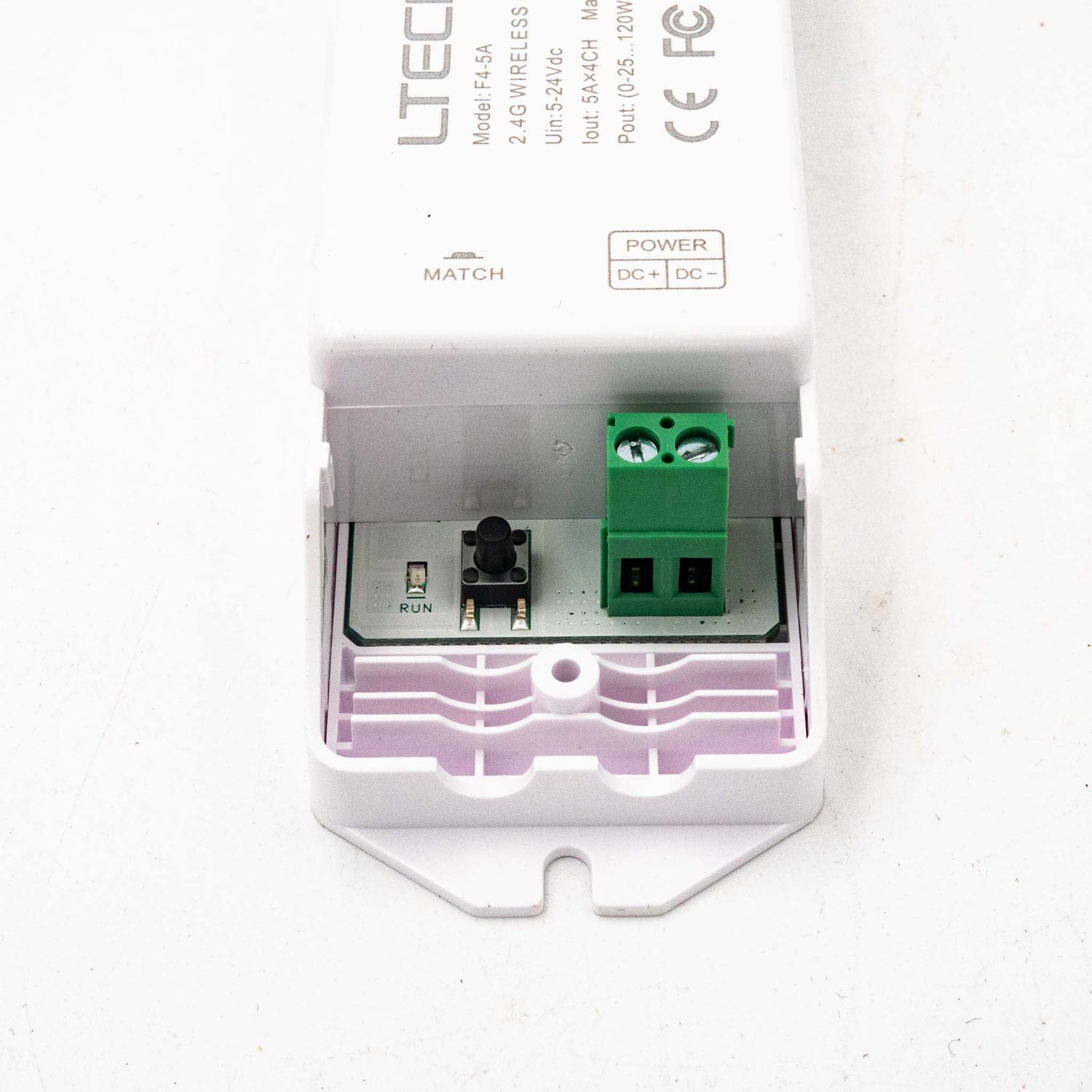

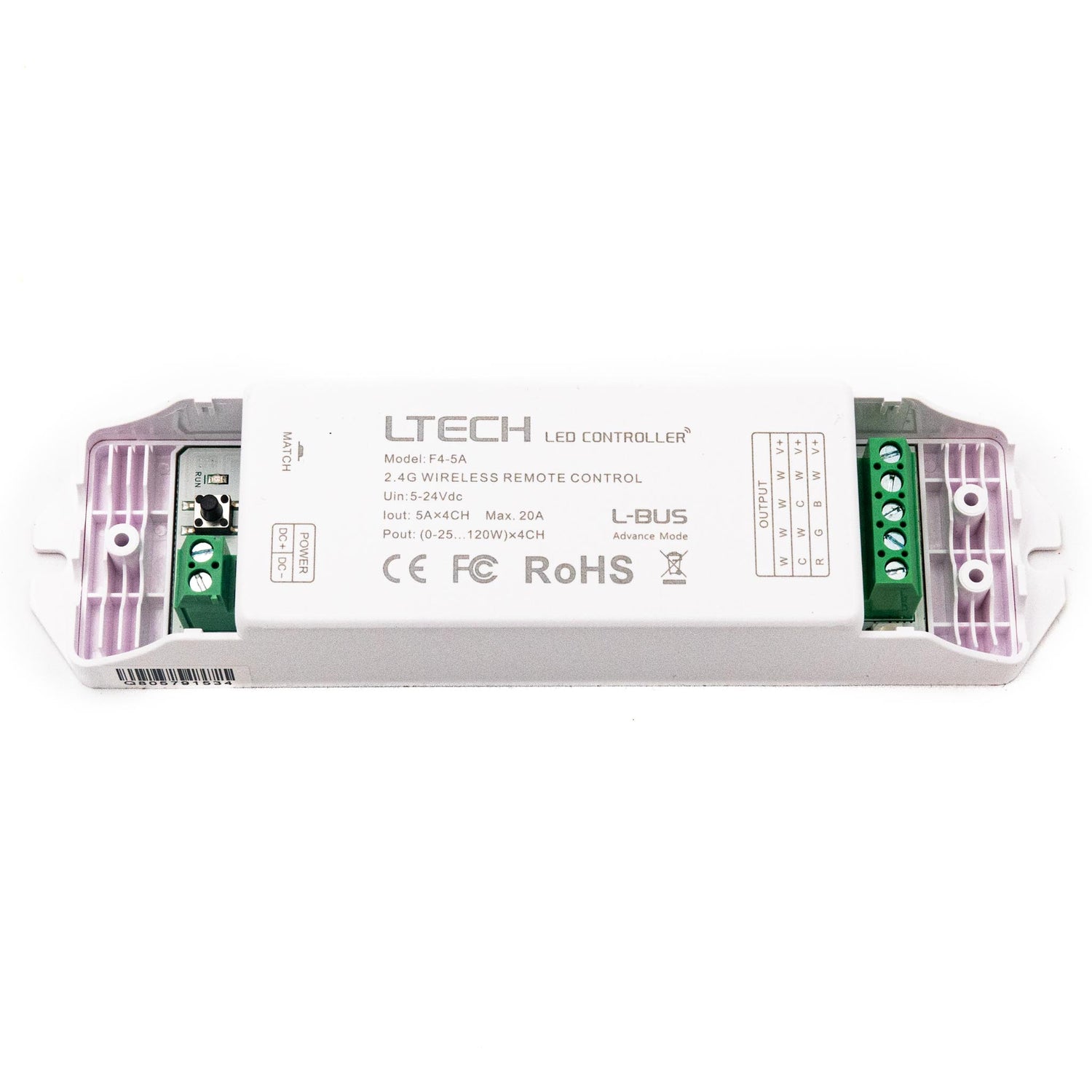

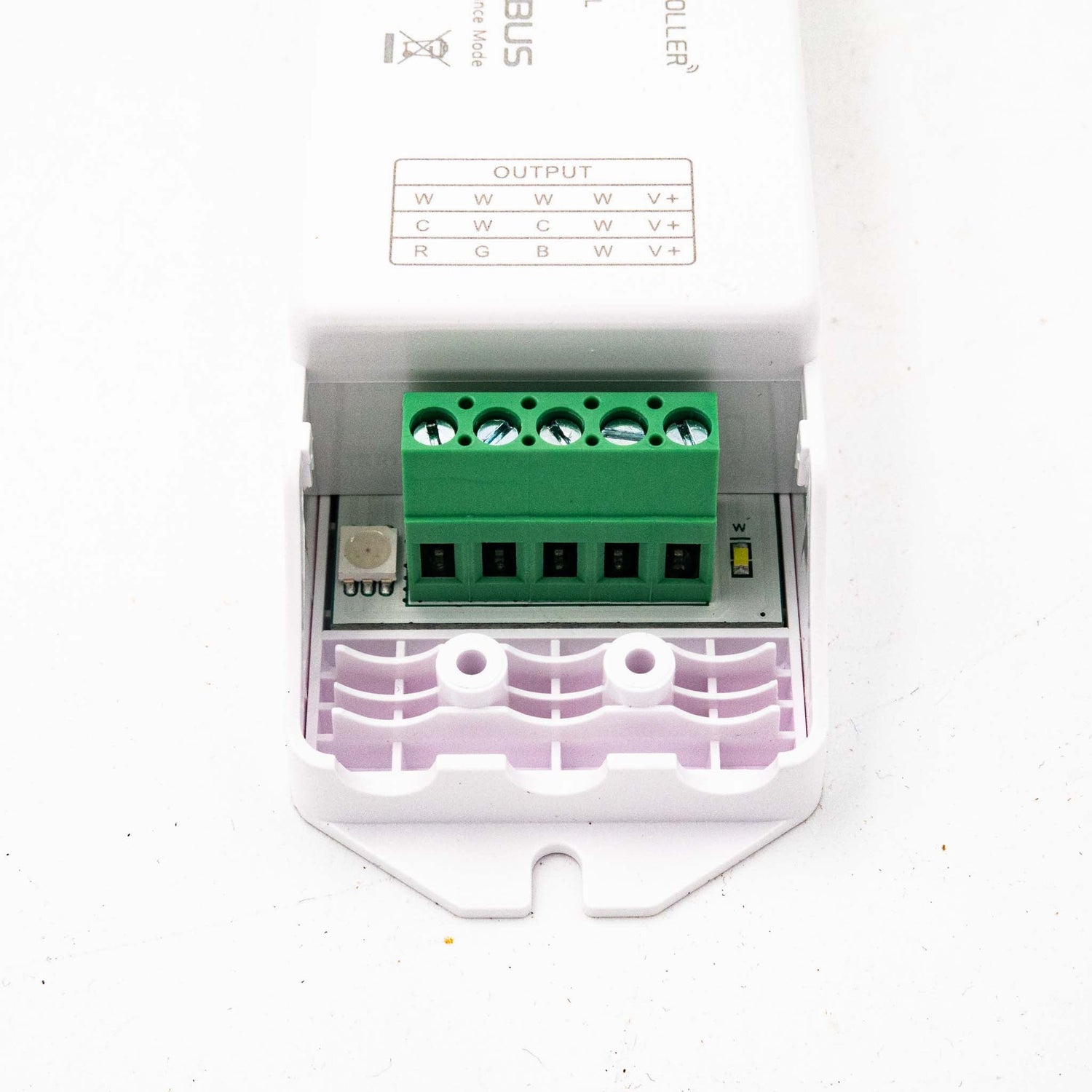

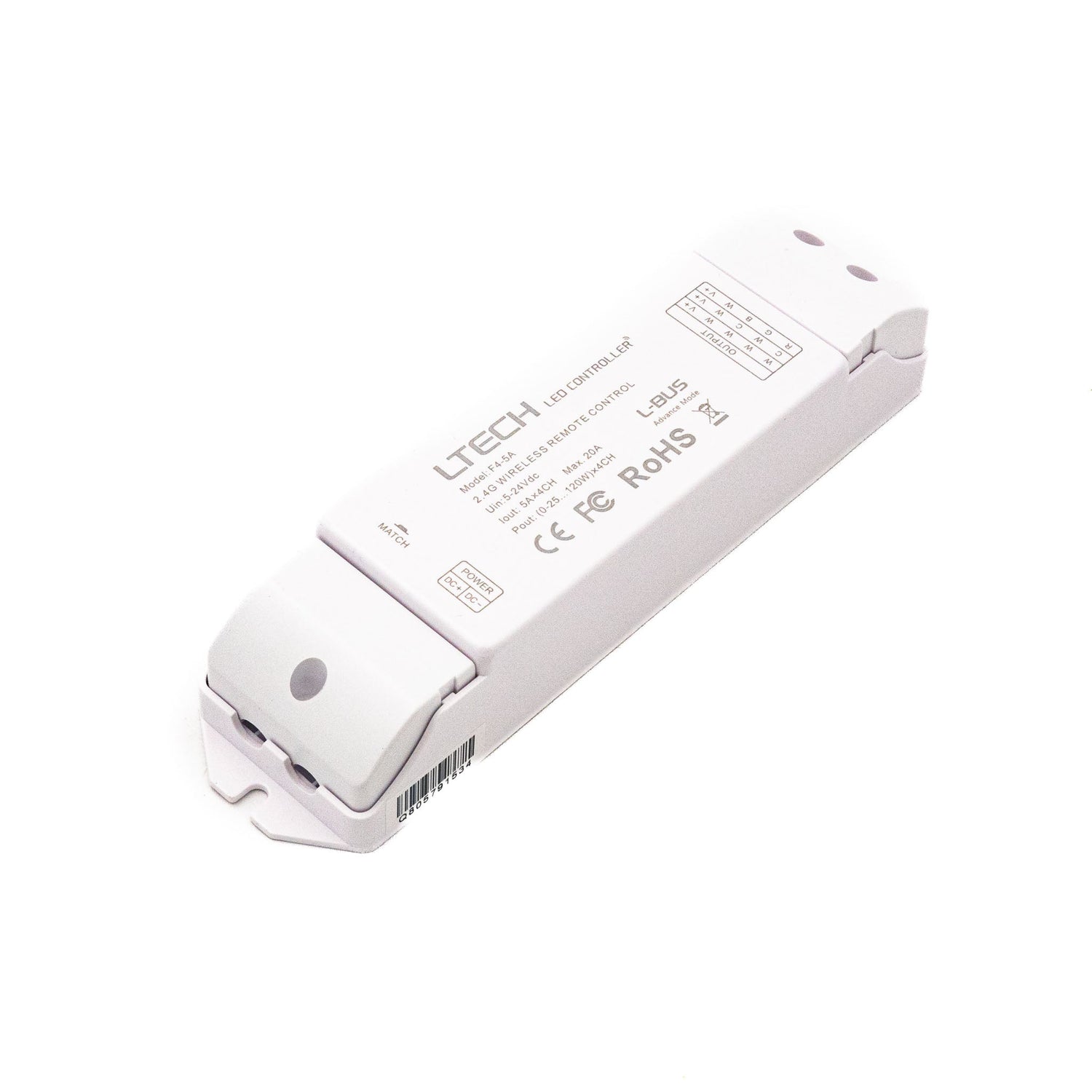

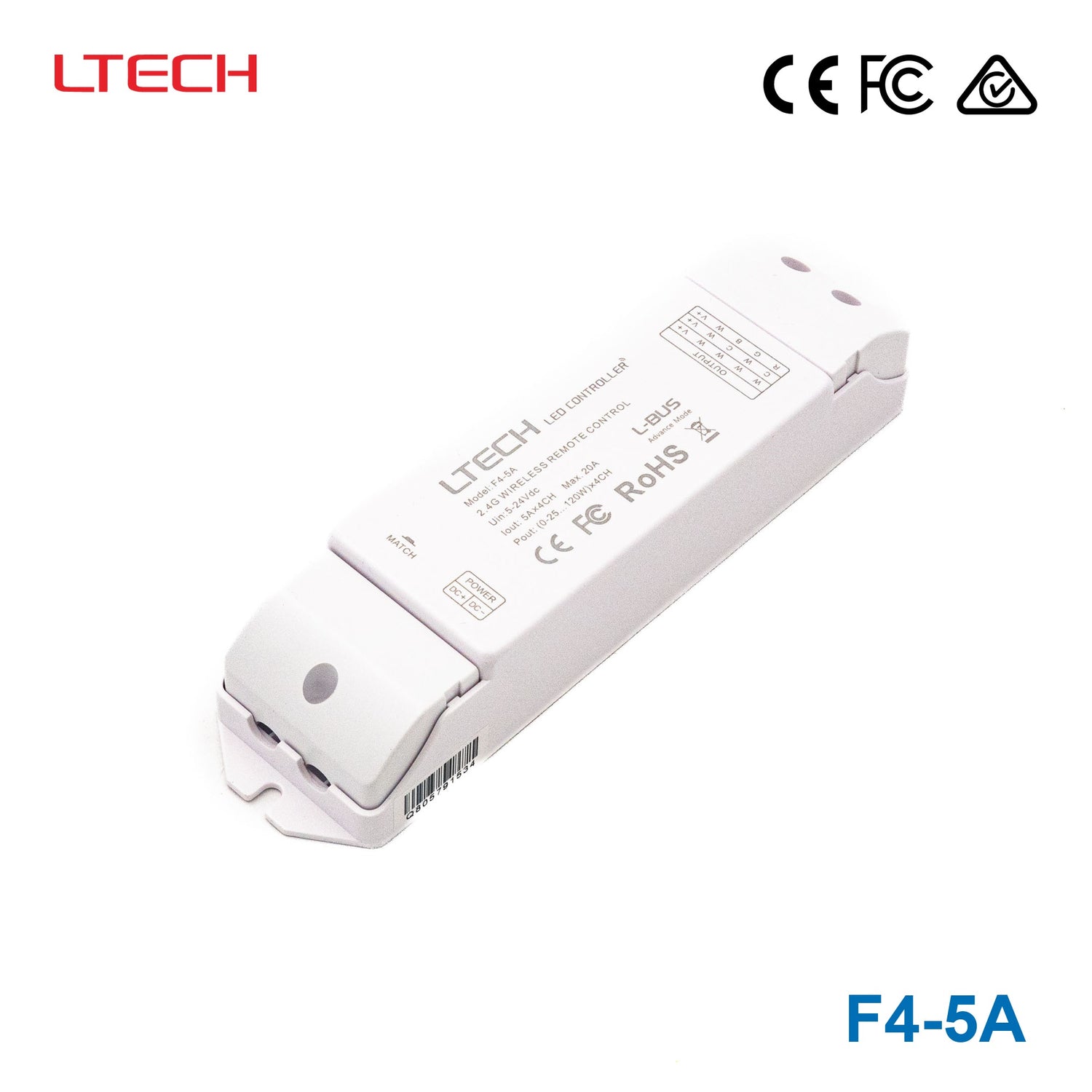

Ltech F4-5A Wireless RF Constant Voltage Controller - 4 Channel
Description
Description
- RF 2.4GHz wireless signal
- no need signal cable.
- Dimming
- CT
- RGB
- RGBW LED lights can be controlled.
- Compatible with F series remote.
- Compatible with EX series touch panel.
- Support APP and intelligent speaker control if equipped with wifi 08 gateway.
- (note: only with L-BUS identity can support advanced mode.)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage5V~24V
-
No of Output4
-
Dimming ControlPWM
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.33 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What types of LED lighting can the Ltech F4-5A control?
The Ltech F4-5A is designed for constant-voltage LED lighting and supports dimming, CCT, RGB, and RGBW control modes. That makes it suitable for single-color, tunable white, color-changing, and RGBW LED lighting projects that need 4-channel control.
What are the electrical ratings of the Ltech F4-5A?
This controller is rated for 24 V output with a total rated current of 20 A. Its listed power rating is 480 W, making it appropriate for higher-load constant-voltage LED control applications within those published limits.
Does the Ltech F4-5A support wireless control?
Yes. The F4-5A uses a 2.4 GHz RF wireless signal, so it is intended for wireless control operation rather than relying on a signal cable. It is also compatible with Ltech F series remotes.
Can the Ltech F4-5A work with touch panels, app control, or voice control?
Yes, this model is compatible with EX series touch panels. It can also support app control and intelligent speaker control when used with the WiFi-08 gateway, giving it broader smart-control flexibility than RF-only operation.
Is the Ltech F4-5A a good fit for commercial or professional lighting projects?
It can be a strong fit for commercial and professional LED control projects that need wireless RF control and support for multiple lighting types such as dimming, CCT, RGB, or RGBW. Its 480 W power rating, 4-channel design, and smart-control compatibility make it more versatile than a basic single-function dimmer.
What operating environment is the Ltech F4-5A rated for?
The published operating temperature range is -30°C to 55°C. That gives the controller a relatively broad environmental range for demanding indoor or protected application environments where temperature tolerance matters.
