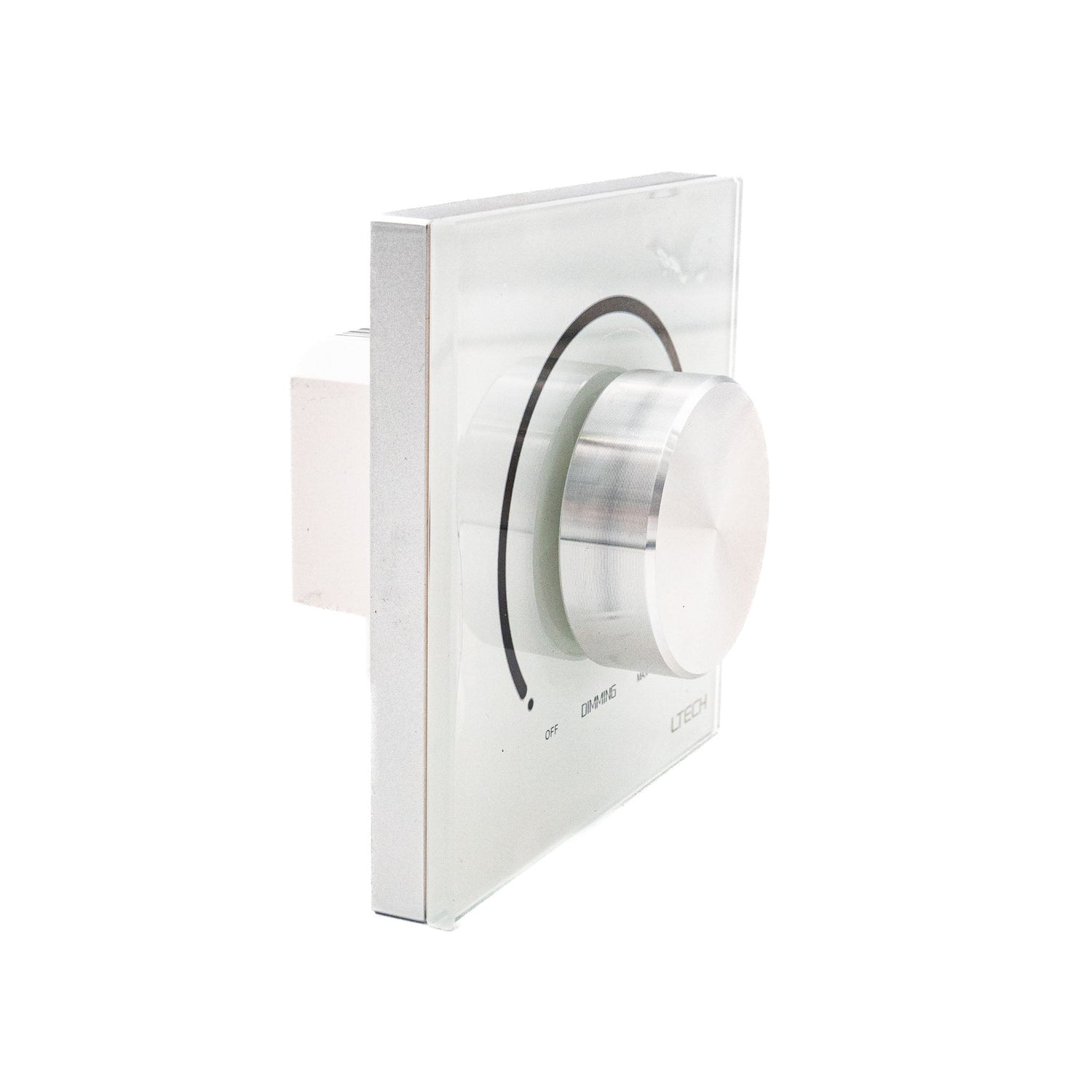

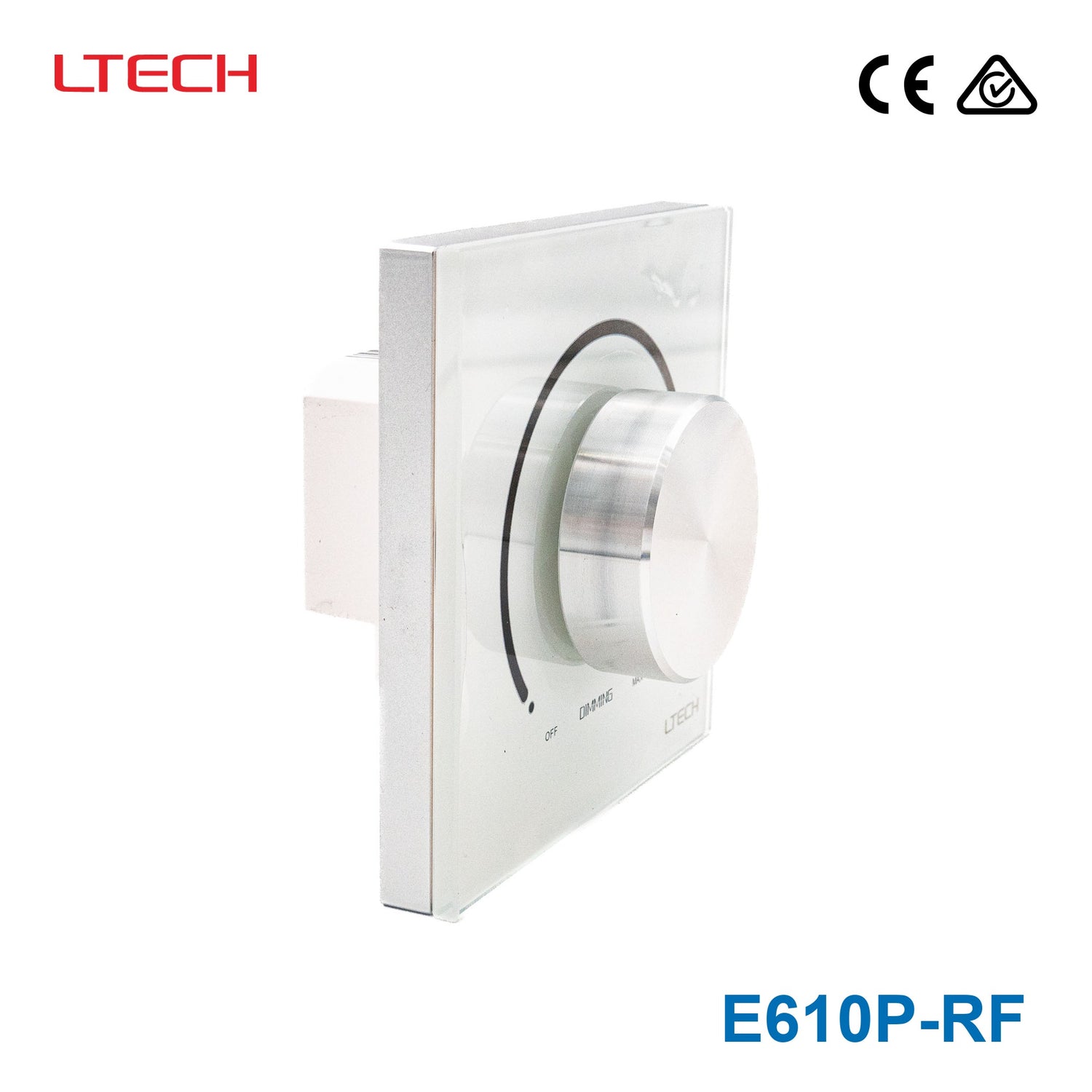

Ltech E610P-RF Rotary Panel - 0-10V Dimmer
Description
Description
- Active 0-10V signal output dimming controller.
- 100-240Vac power supply
- easy connection
- convenient control.
- 0-10V output dimming signal can be controlled either by the knob or wireless RF remote.
- Remote control panel dimming can be realized if work with L-BUS gateway.
- Built-in relay switch
- can be used to cut off the power line
- also suitable for the occasion where the lights can not be turned off completely. Note: this controller only receives RF wireless signal control
- no RF transmission function.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Output Voltage240 Volt
-
Input Voltage100V~240V
-
Dimming Control0-10V
-
Standards MetCE,RCM
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-10°C~35°C
-
Warranty5 Year
-
Length3.39 in
-
Width3.39 in
-
Height1.97 in
-
Weight0.49 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of dimming control does the Ltech E610P-RF use?
The E610P-RF is a 0-10V dimming controller with an active 0-10V signal output. It is intended for applications that use 0-10V control rather than phase-cut or digital-only dimming methods.
Can this dimmer be controlled directly at the panel?

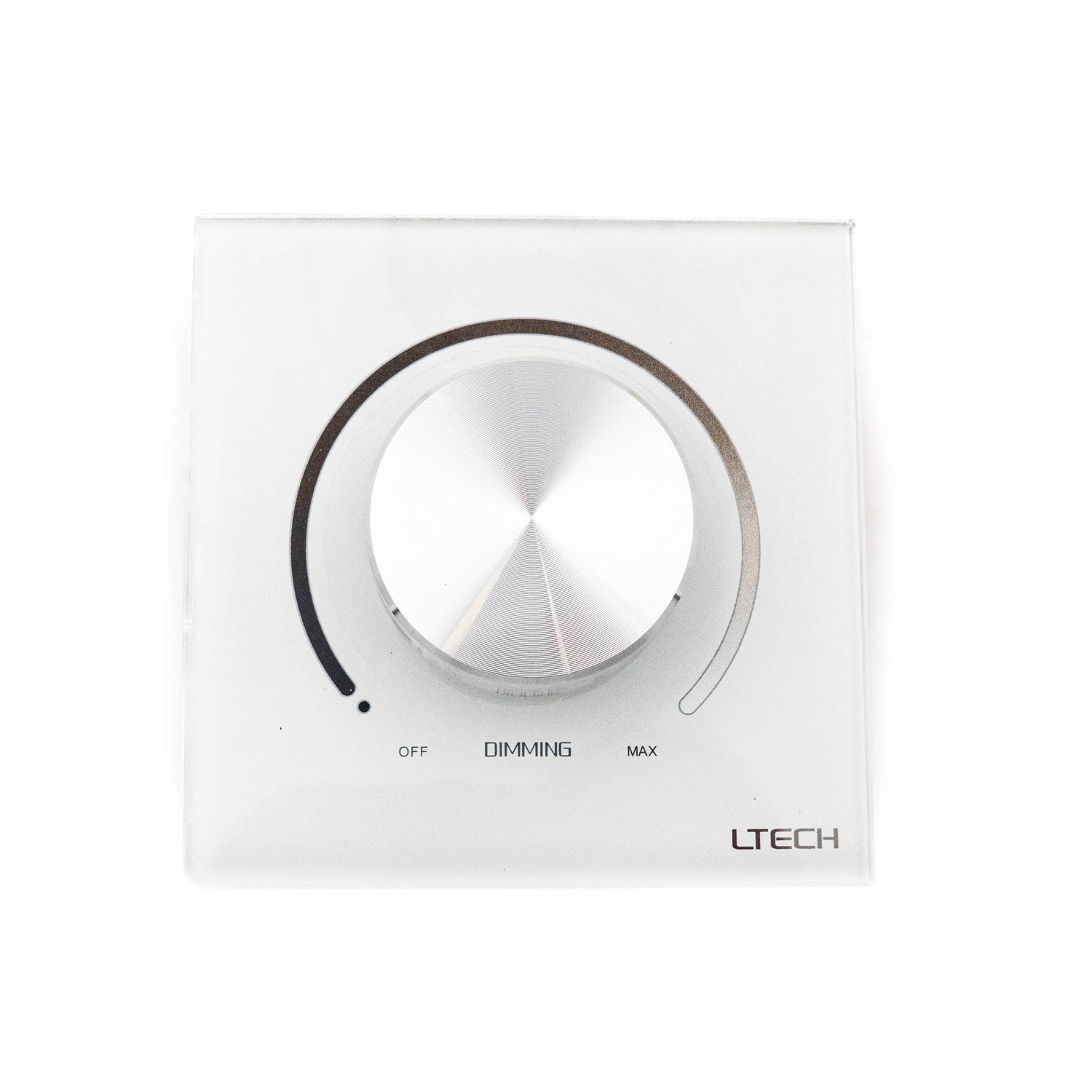

Yes. This model includes a rotary knob on the panel for local dimming control. That makes it suitable where users want direct on-site adjustment without relying only on a separate control device.
Does the E610P-RF work with wireless RF control?
Yes, this model can be controlled by RF remote in addition to the rotary knob. The product description notes that it receives RF wireless control signals, but it does not provide RF transmission functionality itself.
Can this model support remote control panel dimming through an L-BUS system?
Yes, remote control panel dimming can be realized when the E610P-RF is used with an L-BUS gateway. This makes it a better fit for projects that want panel-style dimming control as part of a broader smart lighting control setup.
Is the E610P-RF suitable for commercial and architectural lighting control?
It can be a good fit for commercial or architectural lighting systems that use 0-10V dimming and benefit from both local and RF-based control. Its built-in relay switch also helps in applications where lights may otherwise not turn off completely.
What are the input power, operating temperature, and warranty for this dimmer?
The E610P-RF is specified for 100-240Vac power supply input. Its operating temperature range is -10°C to 35°C, and it carries a 5-year warranty.
