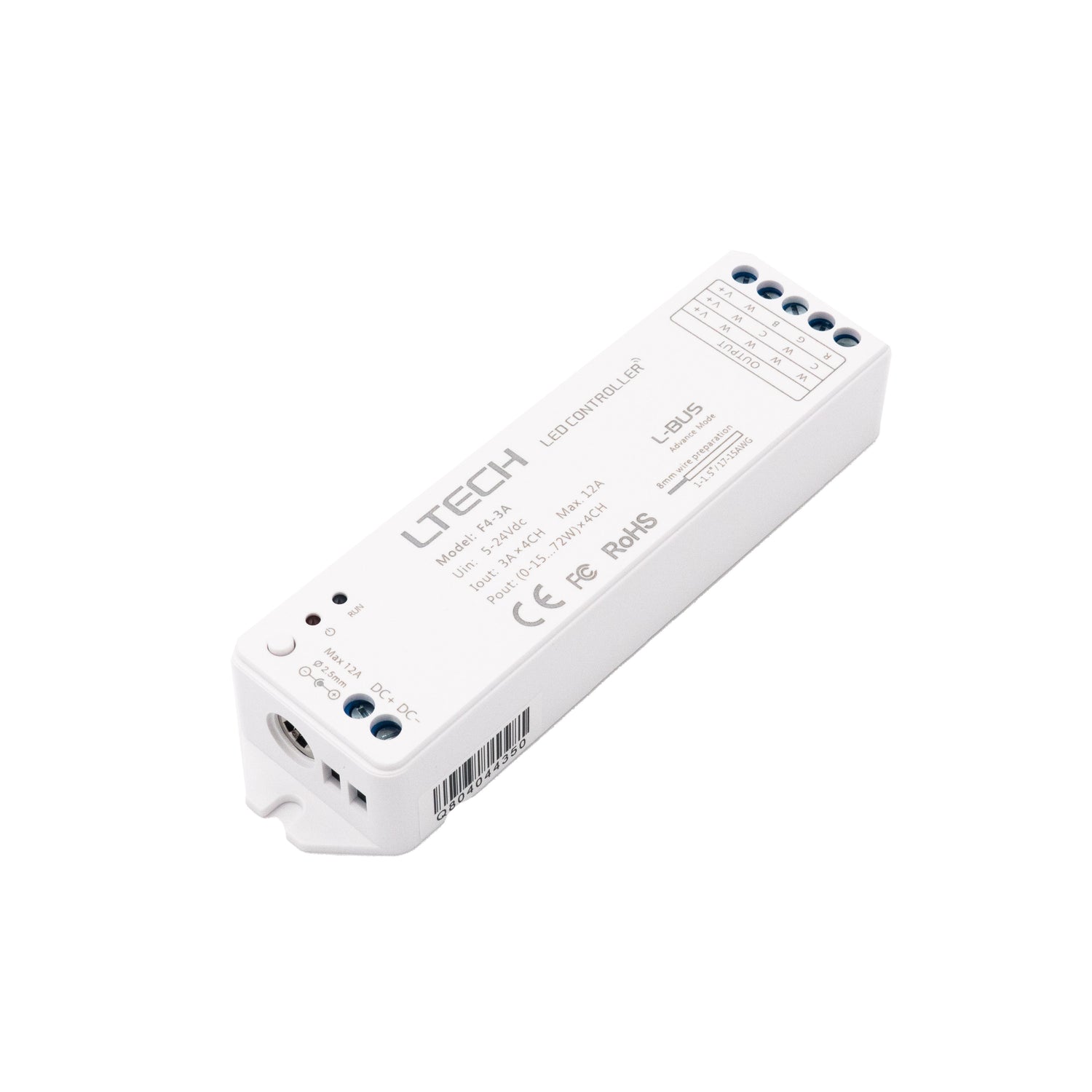

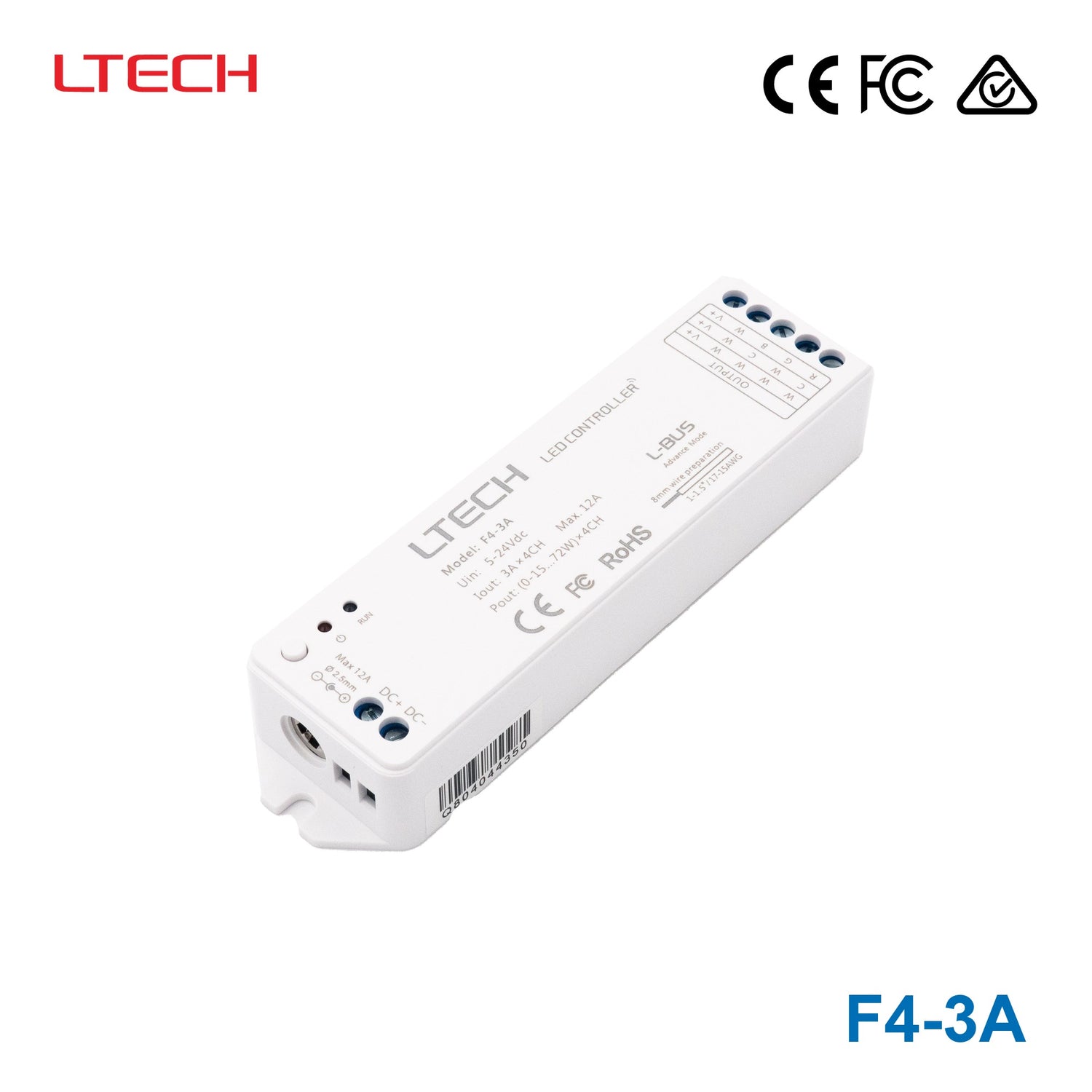

Ltech F4-3A Wireless RF Constant Voltage Controller - 4 Channel
Description
Description
- RF 2.4GHz wireless signal
- no need signal cable.
- Dimming
- CT
- RGB
- RGBW LED lights can be controlled.
- Compatible with F series remote.
- Compatible with EX series touch panel.
- Support APP and intelligent speaker control if equipped with wifi 08 gateway.
- (note: only with L-BUS identity can support advanced mode.)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Power Rating288 Watt
-
Output Voltage24 Volt
-
Rated Current12 Ampere
-
Input Voltage5V~24V
-
No of Output4
-
Dimming ControlPWM
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length4.92 in
-
Width1.3 in
-
Height0.79 in
-
Weight0.13 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of lighting can the Ltech F4-3A control?
The Ltech F4-3A is designed for constant voltage LED lighting and supports dimming, color temperature control, RGB, and RGBW lighting modes. That makes it suitable for a range of LED lighting applications where multi-channel control is needed.
How many channels does the F4-3A controller have?
This model is a 4-channel wireless RF constant voltage controller. Its 4-channel design allows it to support lighting types such as RGBW and other multi-channel constant voltage LED loads.
Is the Ltech F4-3A compatible with Ltech remotes and control systems?
Yes. The F4-3A is compatible with Ltech F series remotes and EX series touch panels. It can also support app and intelligent speaker control when used with the WiFi-08 gateway.
What are the electrical ratings of the Ltech F4-3A?
The F4-3A is rated for 24V output voltage, 12A rated current, and up to 288W power. It uses PWM dimming control, which is commonly used for constant voltage LED lighting control.
Can the F4-3A be used in demanding indoor or industrial environments?
It is rated for operation from -30°C to 55°C, which makes it suitable for a wide range of commercial and professional environments within that temperature range. Buyers should confirm the surrounding conditions stay within those limits for reliable performance.
What makes the F4-3A a good fit for commercial LED control applications?
This model combines 2.4GHz RF wireless control, 4-channel output capability, and support for dimming, tunable white, RGB, and RGBW lighting. For B2B buyers, that makes it a flexible option for projects that need one controller family to cover multiple LED lighting types.
Does the Ltech F4-3A include a warranty?
Yes. The Ltech F4-3A includes a 5-year warranty period. That longer warranty can be useful for commercial buyers looking for added confidence in long-term use.
