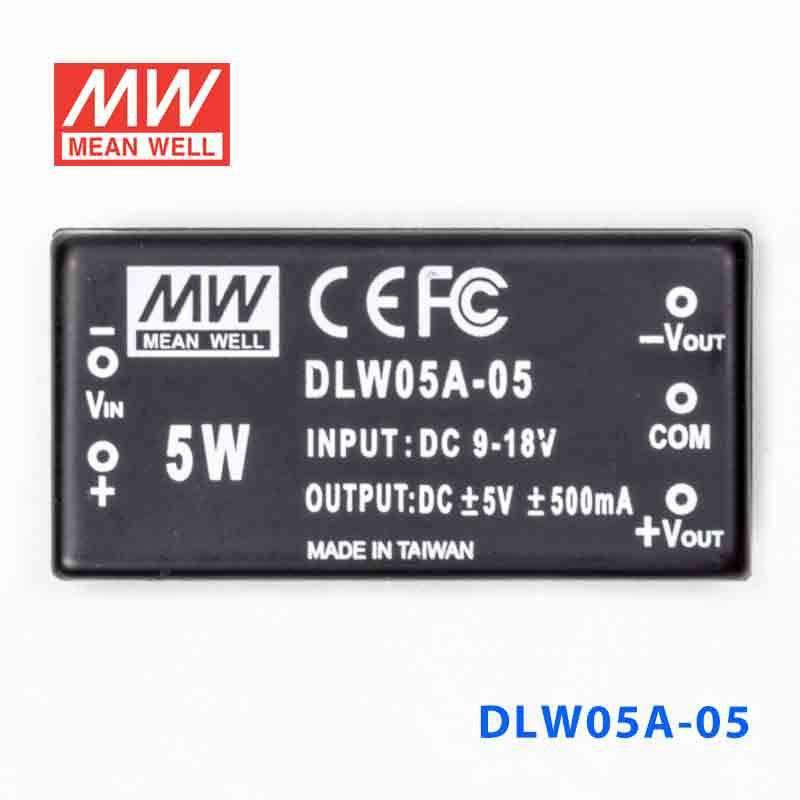

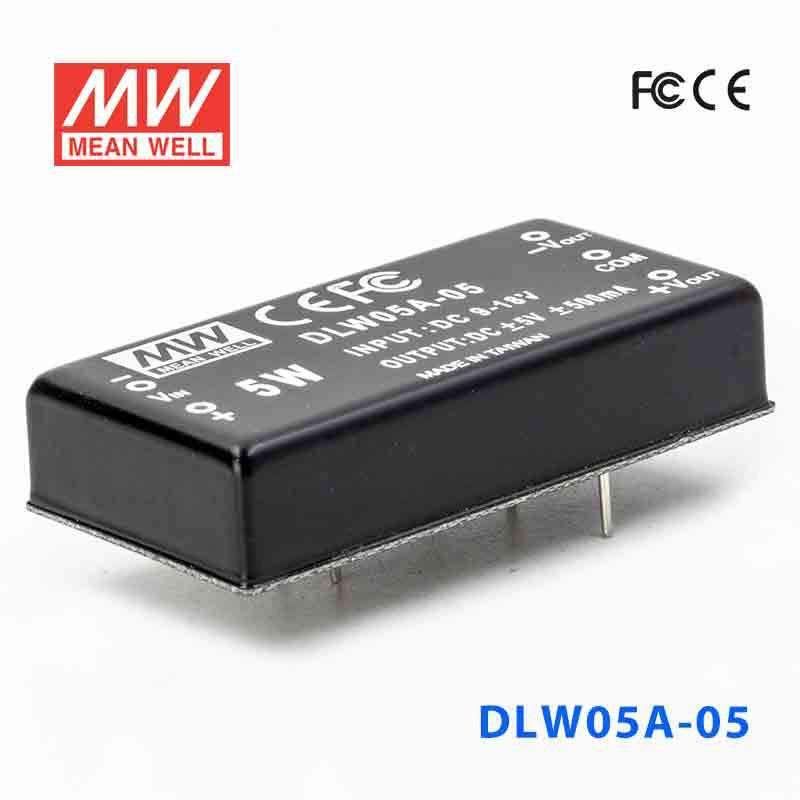

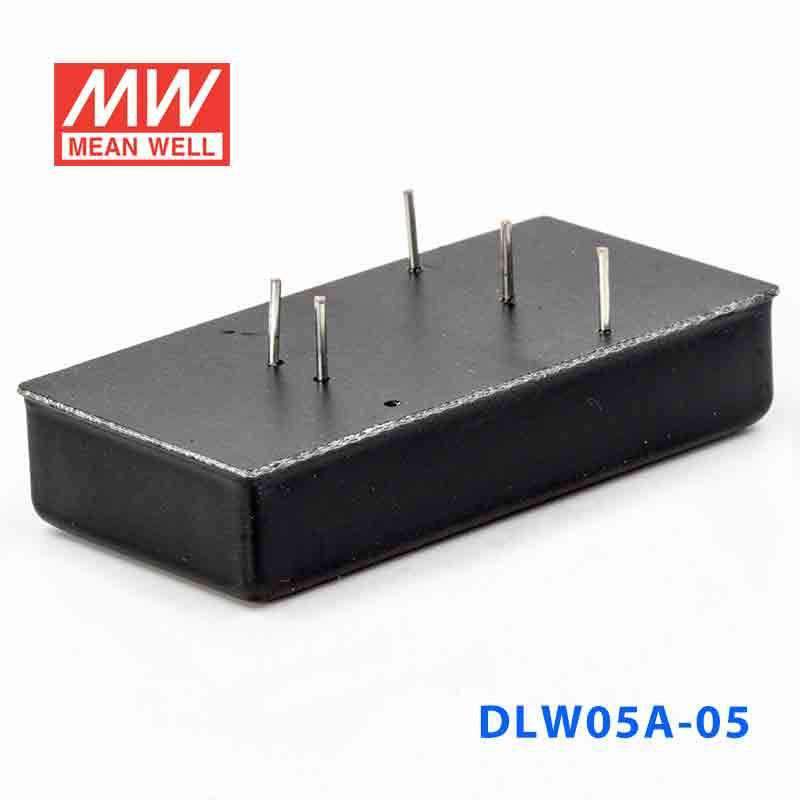

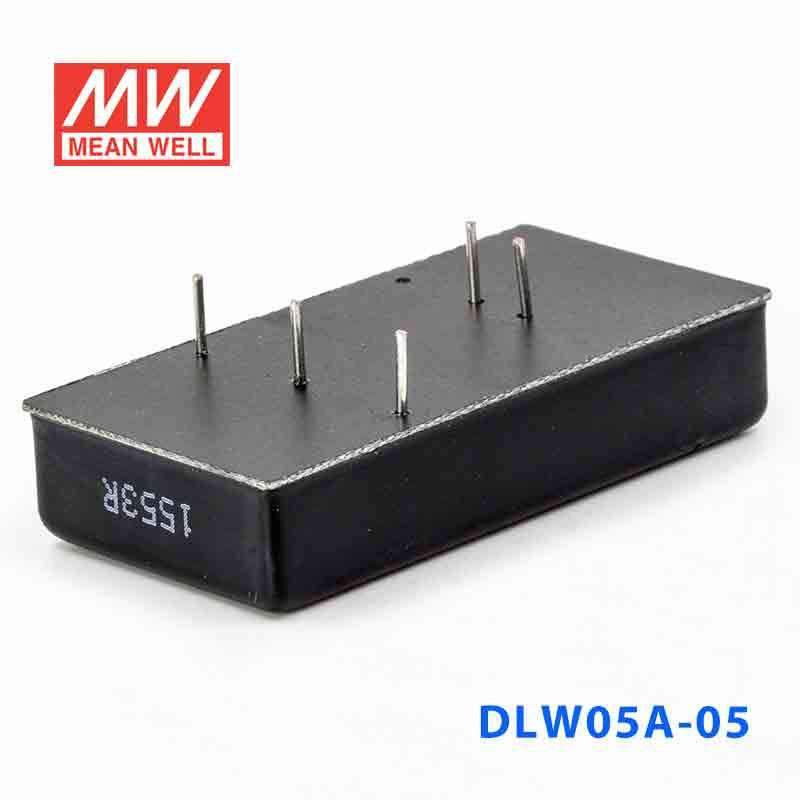

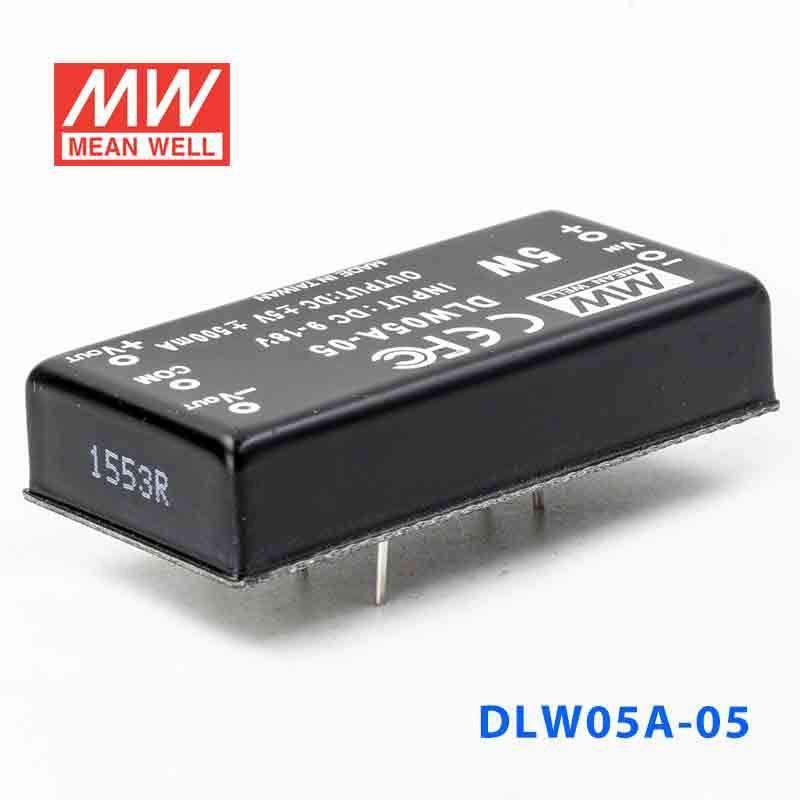

Mean Well DLW05A-05 DC-DC Converter - 5W - 9~18V in ±5V out
Description
Description
The DLW05A is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDLW Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current0.5 Ampere
-
Input Voltage9V~18V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DLW05A-05 to provide 5V power for logic boards inside industrial control equipment?
Yes, if the source feeding the converter is within 9-18VAC and the load needs a constant 5V output. This model is rated for 5W, so it fits small logic, interface, and control-board power duties rather than higher-load subsystems.
Is this converter suitable for embedded monitoring or sensor-processing electronics in a compact enclosure?
It can be a fit for compact embedded electronics that need 5V constant voltage and stay within the 5W rating. Its 50.8 × 25.4 × 11.27 mm size and 0.032 kg weight also make it easier to place in space-constrained equipment.
Can the DLW05A-05 be used in small automation panels that start from a low-voltage AC source?
Yes, when the available source is in the 9-18VAC input range and the downstream electronics require 5V constant voltage. The 5W output makes it better suited to low-power automation electronics than to larger control loads.
Is the DLW05A-05 meant for outdoor equipment?
The operating temperature range is -25°C to +71°C, but no IP rating is listed in the provided specs. Without an IP rating, it is better treated as a converter for protected indoor equipment or an enclosure that provides the environmental protection.
How does the DLW05A-05 compare with the other DLW05A models?
All three DLW05A versions share 5W power, 9-18VAC input, constant-voltage operation, 50.8 × 25.4 × 11.27 mm dimensions, 0.032 kg weight, and a -25°C to +71°C operating range. The output options in this family are DLW05A-05 at 5V and 500A, DLW05A-12 at 12V and 208A, and DLW05A-15 at 15V and 167A.
