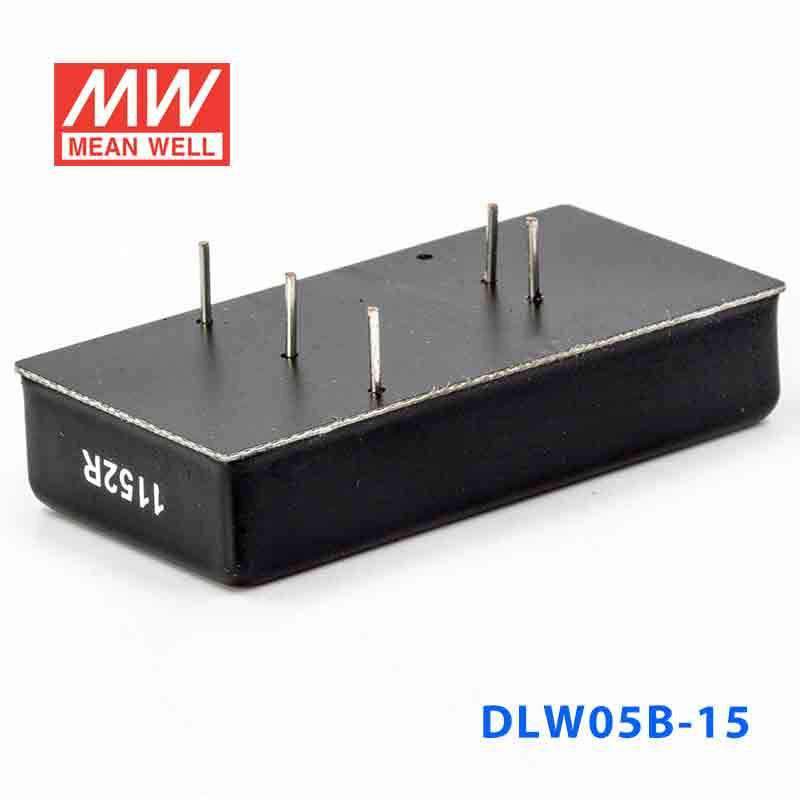

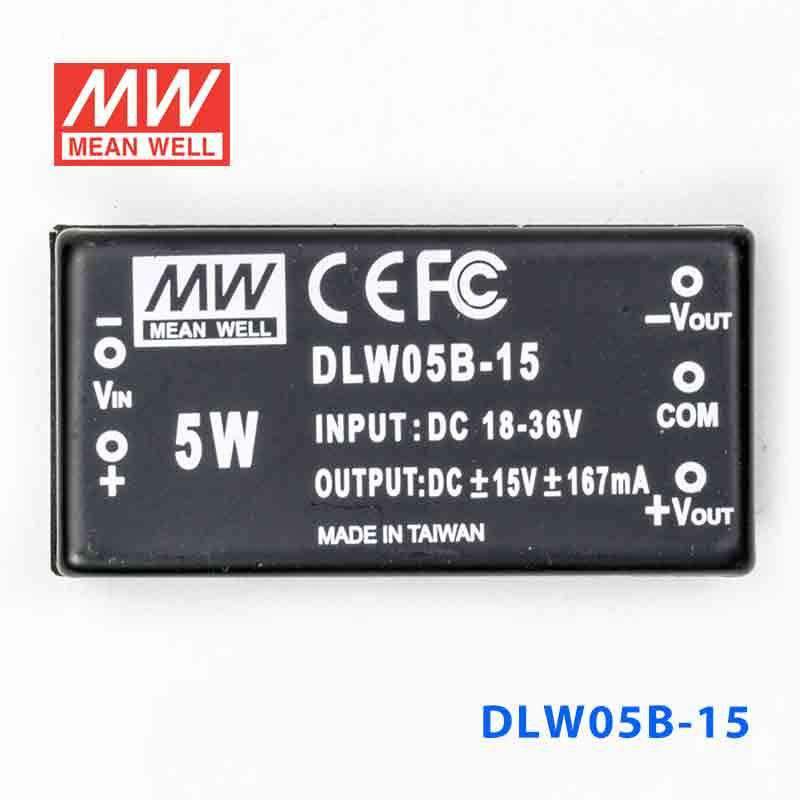

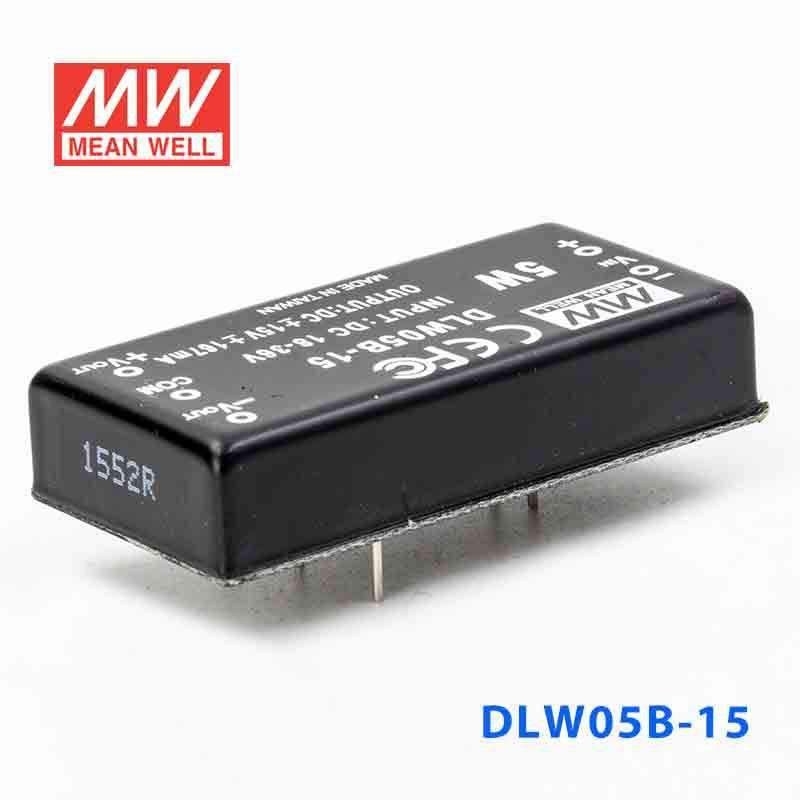

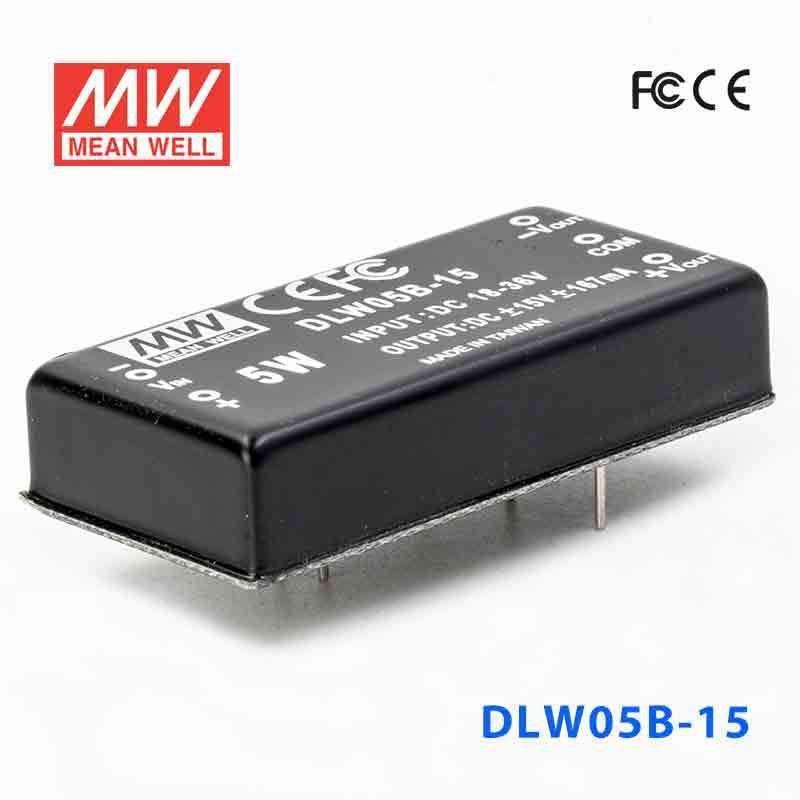

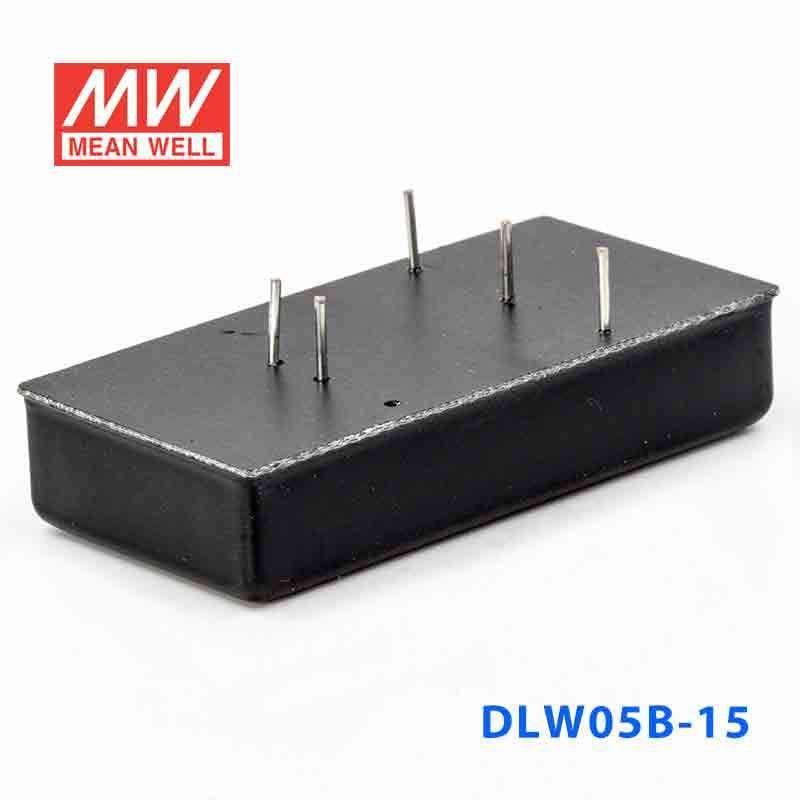

Mean Well DLW05B-15 DC-DC Converter - 5W - 18~36V in ±15V out
Description
Description
The DLW05B is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDLW Series
-
Power Rating5 Watt
-
Output Voltage15 Volt
-
Rated Current0.16 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DLW05B-15 in a 24V industrial control cabinet that needs a ±15V rail?
This model is designed for 18-36VAC input and provides constant-voltage ±15V output at 5W. That makes it a fit for control or signal-conditioning equipment that already operates within an 18-36VAC power range and needs a compact ±15V converter.
Is the DLW05B-15 suitable for embedded analog or sensor interface boards that need bipolar voltage?
It can suit embedded analog circuits that need a constant ±15V output, as long as the system input stays within 18-36VAC and the load fits within 5W. The 50.8 × 25.4 × 11.27 mm package also helps where board or enclosure space is limited.
Can this converter be used in automation equipment with limited internal space?
Yes, the housing size is 50.8 × 25.4 × 11.27 mm and the weight is 0.032 kg, so it is aimed at compact equipment layouts. It is better suited to low-power automation or interface sections that need ±15V rather than higher-power loads, because the rated output is 5W.
Is the DLW05B-15 a good choice for indoor control panels or equipment rooms?
The listed operating temperature is -25°C to +71°C, which supports a wide indoor equipment temperature range. No IP rating is provided in the specs, so the product data does not identify it as outdoor-rated or weather-exposed equipment.
How does the DLW05B-15 compare with the other DLW05B versions?
All DLW05B models shown here are 5W converters in the same series. The DLW05B-05 is 5V with 500A, the DLW05B-12 is 12V with 208A, and the DLW05B-15 is ±15V with 167A.
Other DLW05 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DLW05C-15 DC-DC Converter - 5W - 36~72V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05C-12 DC-DC Converter - 5W - 36~72V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05C-05 DC-DC Converter - 5W - 36~72V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
| Mean Well DLW05B-12 DC-DC Converter - 5W - 18~36V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05B-05 DC-DC Converter - 5W - 18~36V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
| Mean Well DLW05A-15 DC-DC Converter - 5W - 9~18V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05A-12 DC-DC Converter - 5W - 9~18V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05A-05 DC-DC Converter - 5W - 9~18V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
